Danfoss VLT Pocket Guide

46 VLT
®
Soft Starter Pocket Guide
MCD Remote Operator
RS485
Starter
RS485
Network
B3
B2
B1
-
+
B8
B7
B6
-
+
GND GND
68
61
69
-
+
GND
MCD3000
Cat. No: 175G3061

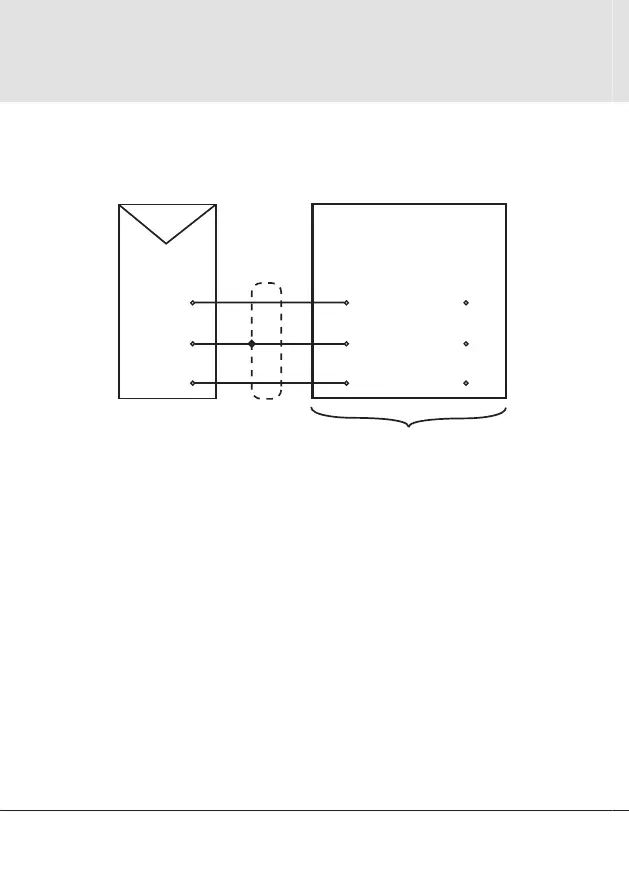

This is achieved using the MCD Remote Operator
(Cat. No: 175G3061).
Notes
A single Remote Operator is required for each MCD3000•
If two Remote Operators are required, the RS485 Network side of the •
fi rst Remote Operator (terminals B6, B7, B8) must be connected to the
RS485 starter side of the second Remote operator
(terminals B1, B2, B3)
The Remote Operator requires an external 18-30 VAC/DC auxiliary •
supply.
For more information on the MCD Remote Operator, refer to the Users •
Manual (MG.17.Ex.02) located at www.danfoss.com/drives
MCD3000 with MCD Remote Operator Option

Danfoss VLT Specifications

General

Frequency	50/60 Hz
Enclosure	IP20, IP21, IP55, IP66
Series	VLT
Control Technique	Flux Vector Control
Output Voltage	0-Vinput
Control Method	Fieldbus
Communication Interface	PROFIBUS, CANopen
Protection Features	Overload, Overvoltage, Undervoltage, Short Circuit, Ground Fault
Cooling Method	Liquid Cooled
Storage Temperature	-25°C to +70°C
Relative Humidity	5-95% non-condensing
Altitude	Up to 1000m (3280ft) without derating, up to 4000m (13120ft) with derating
Operating Temperature	-10°C to +50°C (14°F to 122°F)
