Danfoss VLT Pocket Guide

48 VLT
®
Soft Starter Pocket Guide
This is achieved using an externally fi tted MCD3000 DeviceNet
Gateway (Cat. No: 175G9005)
Notes
A Single DeviceNet Gateway is required for each MCD3000•
DeviceNet node address (MAC ID) and data rate are set using DIP •
switches 1 to 8 in the DeviceNet Gateway.
Up to 63 DeviceNet Gateways can be used as DeviceNet slaves on a •
single DeviceNet network.
The DeviceNet Gateway is powered via the network cable.•
For more information on the MCD3000 DeviceNet Gateway, refer to •
the User Manual (MG.15.Ex.02) at www.danfoss.com/drives.

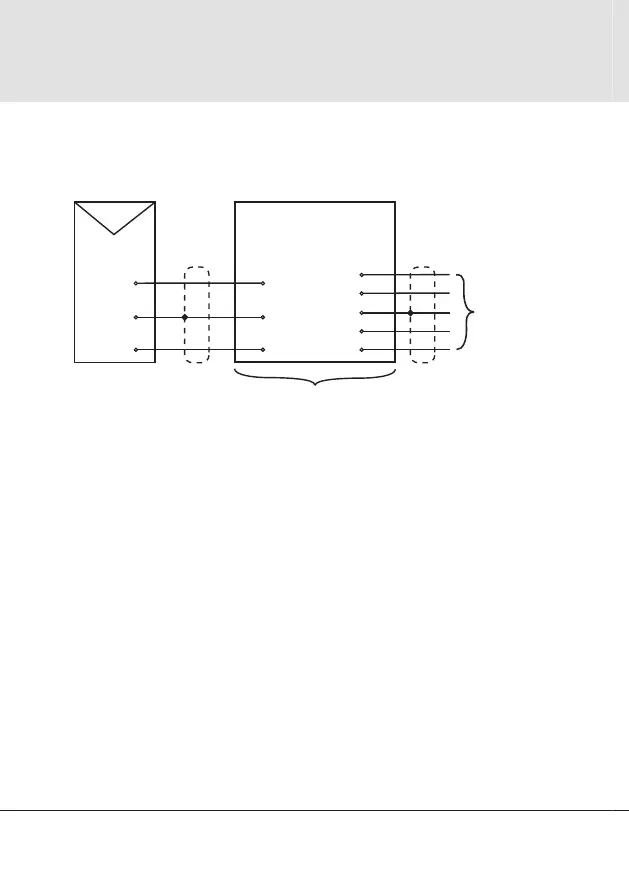

MCD3000 DeviceNet Option
RS485 DeviceNet Gateway
8
7
6
-
+
5
V+
4
CAN-H
1
V-
GND
2
CAN-L
3
SHIELD
68
61
69
-
+
GND
MCD3000
Standard 5-wire
connection onto a
DeviceNet network.
120 termination
resistors are required
at each end of
the network cable.
Cat. No: 175G9005
