Soft Starter Pocket Guide 49
This requires an externally fi tted MCD Profi bus Gateway
(Cat. No: 175G0092)
Notes
Up to 23 MCD3000 soft starters can be used as ASCII slave devices •
with a single MCD Profi bus Gateway.
Each MCD3000 must have a unique slave address starting from slave •
address 1 to the number of MCD3000 soft starters
connected on the ASCII side of the MCD Profi bus Gateway.
The MCD Profi bus gateway address (as seen by the Profi bus DP •
master) is set using DIP switches 1 to 8 on the MCD Profi bus Gateway.
Both ASCII soft starter and Profi bus DP cable termination is provided •
using standard DB9 connectors on the MCD Profi bus Gateway.
If you require use of the MCD Remote Operator with your installa-•
tion, refer to product note 01, MCD Profi bus Gateway and Remote
Operator compatibility.
For more information on the MCD3000 Profi bus Gateway, •
refer to the MCD Profi bus Gateway User Manual (V2.03) located at
www.danfoss.com/drives.

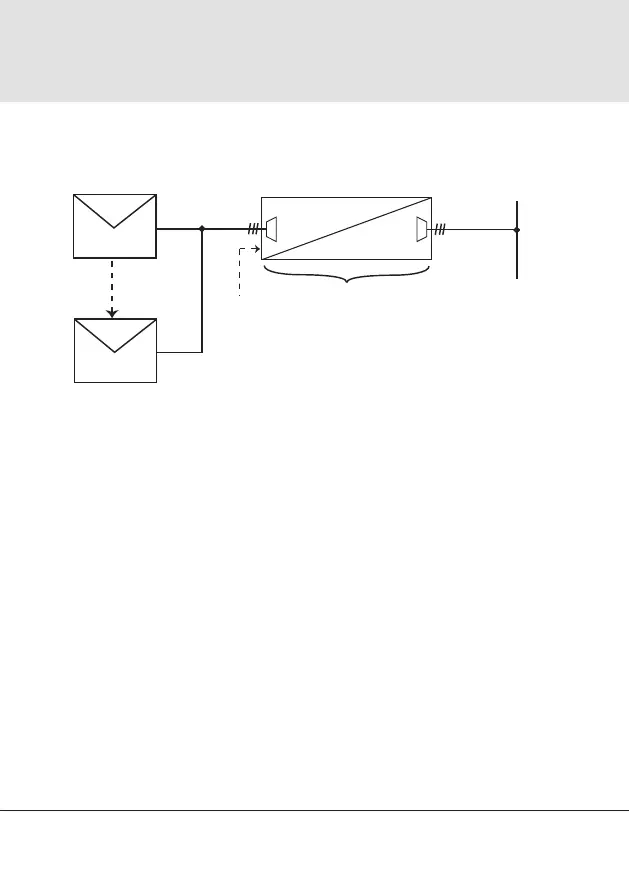

MCD3000
MCD3000
MCD Profibus
Gateway
ASCII
PROFIBUS DP
Standard
3-wire Profibus
network cable
External 24 VDC
supply required
Address #1
Address #23
Cat. No: 175G0092
MCD3000 Profi bus Option
