Soft Starter Pocket Guide 53
This requires an MCD DeviceNet Module which clips onto the side of
the MCD200 (Cat. No: 175G9002).
Notes
A single DeviceNet Module is required for each MCD200.•
DeviceNet node address (MAC ID) and data rate are selected using •
three rotary switches on the DeviceNet Module.
Up to 63 DeviceNet Modules can be used as DeviceNet slaves •
on a single DeviceNet network.
The DeviceNet Module is powered via the network cable.•
The MCD DeviceNet Module is ODVA tested and certifi ed.•
For more information on the MCD DeviceNet Module, refer to the •
Installation Instructions (MG.17.Hx.02), located at
www.danfoss.com/drives.
MCD200
MCD
DeviceNet
Module
RD
(V+)
WH
(CAN-H)
BK
(V-)
BU
(CAN-L)
(SHIELD)

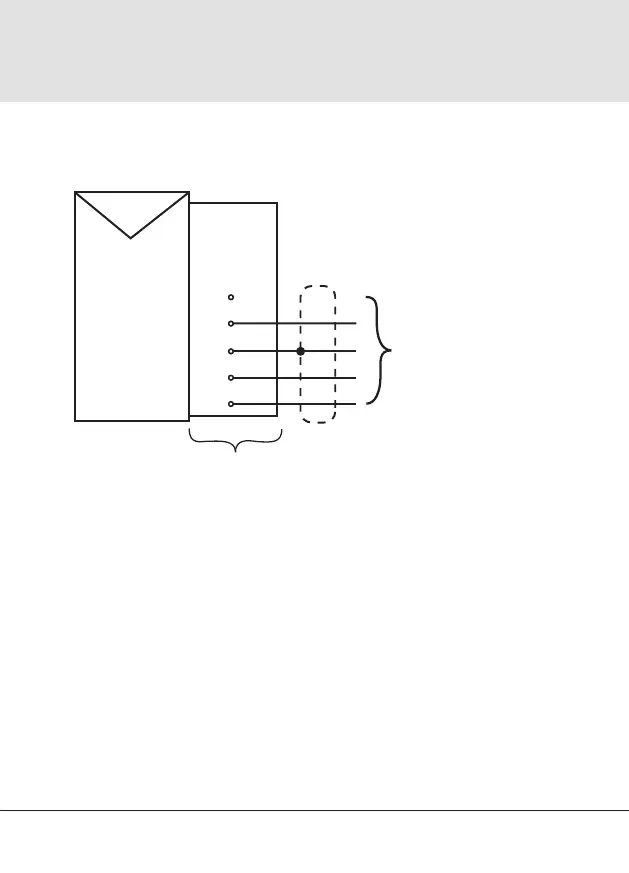

Standard 5-wire
connection onto a
DeviceNet network.
120 termination
resistors are required
at end of each end
of the network cable.
Cat. No: 175G9002
MCD200 DeviceNet Option
