DataCard CD800 User Manual

XPS Card Printer Driver User’s Guide 105

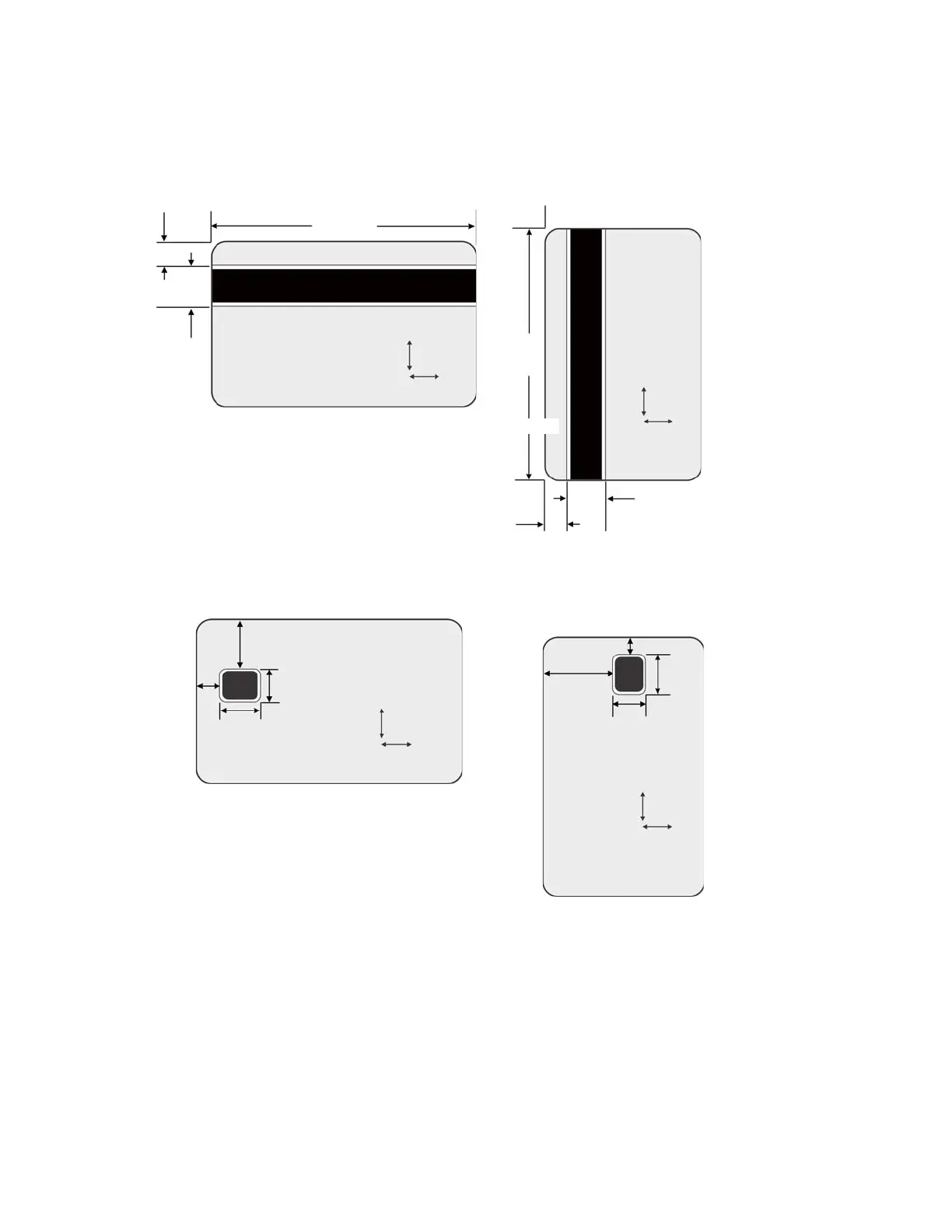

The following example shows the direct-to-card print blocking dimensions for a three-track
magnetic stripe area.
The following example shows sample direct-to-card print blocking dimensions for a smart card
chip. The actual measurements can vary depending on the size and location of the chip.
W
H
W
H
n4
n3
n4
n1
Left edge
Top of card
Left edge
n2
n3
Landscape
n1 = 3.2 mm
n2 = 0
n3 = 86 mm
n4 = 14.7 mm
Portrait
n1 = 0
n2 = 3.5 mm
n3 = 14 mm
n4 = 86 mm
n2
Top of card
n1
Left edge
Top of card
Left edge
n1
n2
n3
n4
H
W
Top of card
n1
n2
n3
n4
H
W
Landscape
n1 = 17.3 mm
n2 = 8 mm
n3 = 14.3 mm
n4 = 13 mm
Portrait
n1 = 8 mm
n2 = 23.6 mm
n3 = 13 mm
n4 = 14 mm

DataCard CD800 Specifications

General

Print Resolution	300 dpi
Weight	12 lbs (5.4 kg)
Power Requirements	100-240 VAC, 50/60 Hz
Print Technology	Dye-sublimation
Card Capacity	100 cards (standard hopper)
Connectivity	USB
Card Size	CR80 (85.6 mm x 54 mm)
Operating System Compatibility	Windows
Card Thickness	0.020" - 0.040" (0.51 mm - 1.02 mm)
