DataCard CD800 User Manual

18 XPS Card Printer Driver Installation
Update the Driver
To update the Card Printer Driver:
1. Log on to the PC where the Card Printer Driver is installed.
2. Insert the Driver Installation CD or double-click the downloaded installation file.

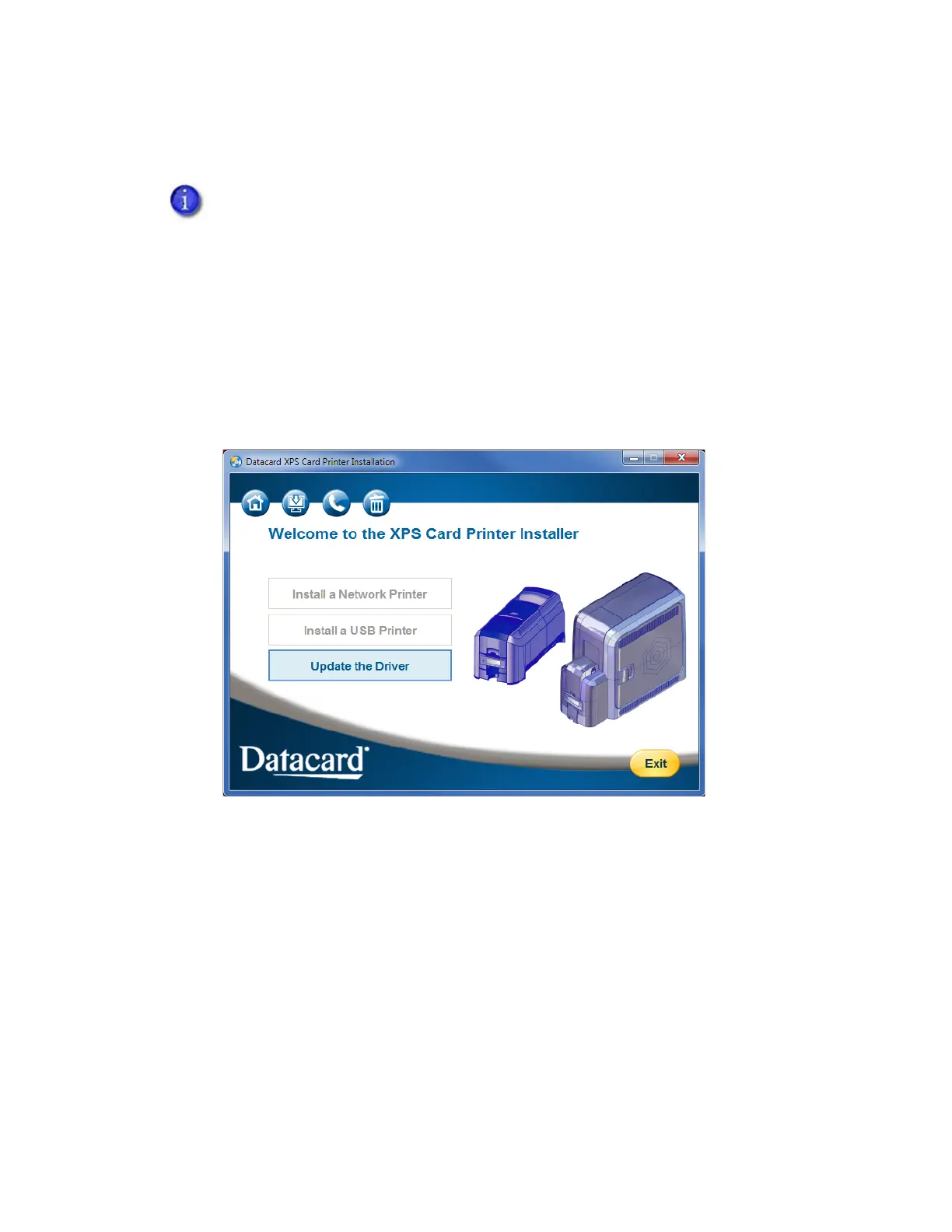

The Installer Welcome page displays.
Click Update the Driver.
The Card Printer Driver update requires that you restart your computer. Plan to
perform the update when no cards are printing and at a time that does not interfere
with your production schedule.

DataCard CD800 Specifications

General

Print Resolution	300 dpi
Weight	12 lbs (5.4 kg)
Power Requirements	100-240 VAC, 50/60 Hz
Print Technology	Dye-sublimation
Card Capacity	100 cards (standard hopper)
Connectivity	USB
Card Size	CR80 (85.6 mm x 54 mm)
Operating System Compatibility	Windows
Card Thickness	0.020" - 0.040" (0.51 mm - 1.02 mm)
