DataCard CD800 User Manual

XPS Card Printer Driver User’s Guide 117
Emboss Example
~EM%2;401;843;0001 3416 7890 1286
~EM%10;401;650;0001
~EM%1;800;480;2007
~EM%1;1600;480;10/17
~EM%1;401;328;Janice Holloway

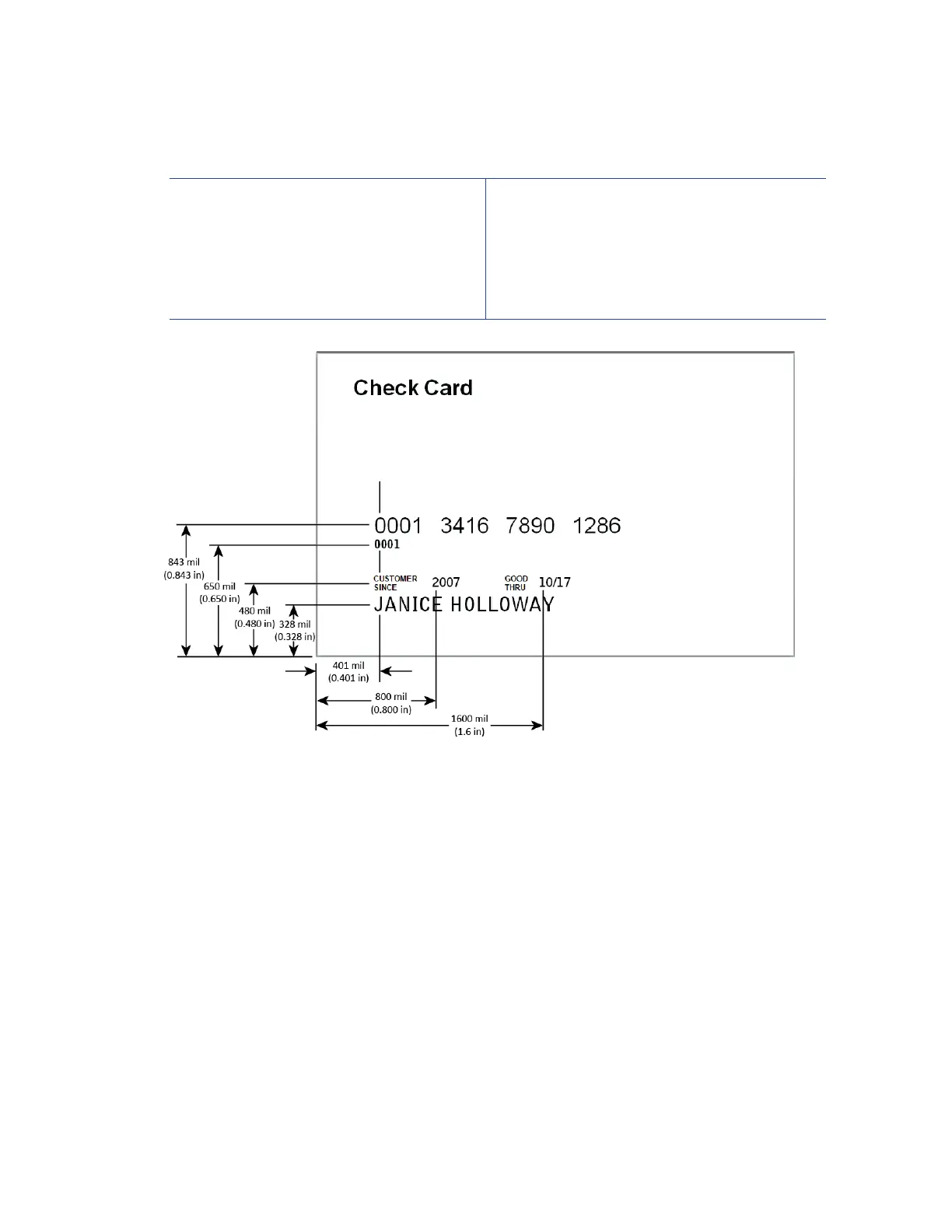

The embosser escapes define emboss and
indent data to produce the following card. The
sample card shows the location of each
embossed element. The escapes can be placed
anywhere on the card design that does not
contain data to be printed.

DataCard CD800 Specifications

General

Print Resolution	300 dpi
Weight	12 lbs (5.4 kg)
Power Requirements	100-240 VAC, 50/60 Hz
Print Technology	Dye-sublimation
Card Capacity	100 cards (standard hopper)
Connectivity	USB
Card Size	CR80 (85.6 mm x 54 mm)
Operating System Compatibility	Windows
Card Thickness	0.020" - 0.040" (0.51 mm - 1.02 mm)
