DataCard CD800 User Manual

XPS Card Printer Driver User’s Guide B-5

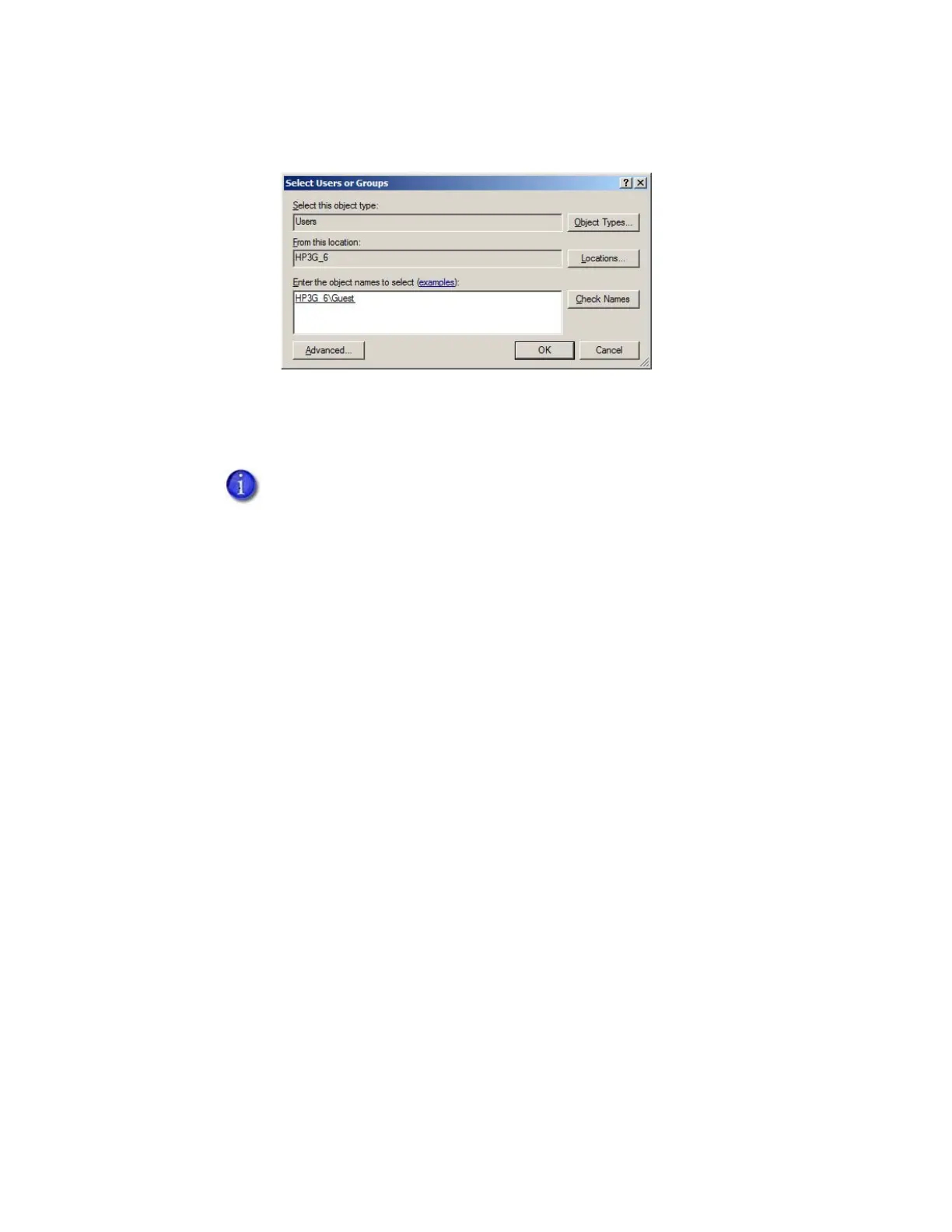

– Click OK. The Select Users or Groups window displays the names you selected.
iv. When you finish adding names, click OK to close the Users and Groups dialog box.
c. In the Names list, select the name or group to set up.
i. Select Allow for permissions you want to apply to the user or group.
ii. Clear the Allow check box for permissions you want to deny the user or group.
iii. Click Apply to save your changes. Make sure that you save changes for each name.
6. Configure the host PC printing preferences.
a. On the Devices and Printers window, right-click the card printer icon and select Printing
preferences. The Printing Preferences window displays.
b. Specify your printing preferences. Refer to “Design Tasks in Windows Printing
Preferences” on page 65.
c. Click OK to close the Printing Preferences window.
Do not select the Manage documents or the Deny check boxes for any user
or group. Select Allow for Manage Printer if you want a user or group to
view messages.

DataCard CD800 Specifications

General

Print Resolution	300 dpi
Weight	12 lbs (5.4 kg)
Power Requirements	100-240 VAC, 50/60 Hz
Print Technology	Dye-sublimation
Card Capacity	100 cards (standard hopper)
Connectivity	USB
Card Size	CR80 (85.6 mm x 54 mm)
Operating System Compatibility	Windows
Card Thickness	0.020" - 0.040" (0.51 mm - 1.02 mm)
