DataCard CD800 User Manual

XPS Card Printer Driver User’s Guide 73

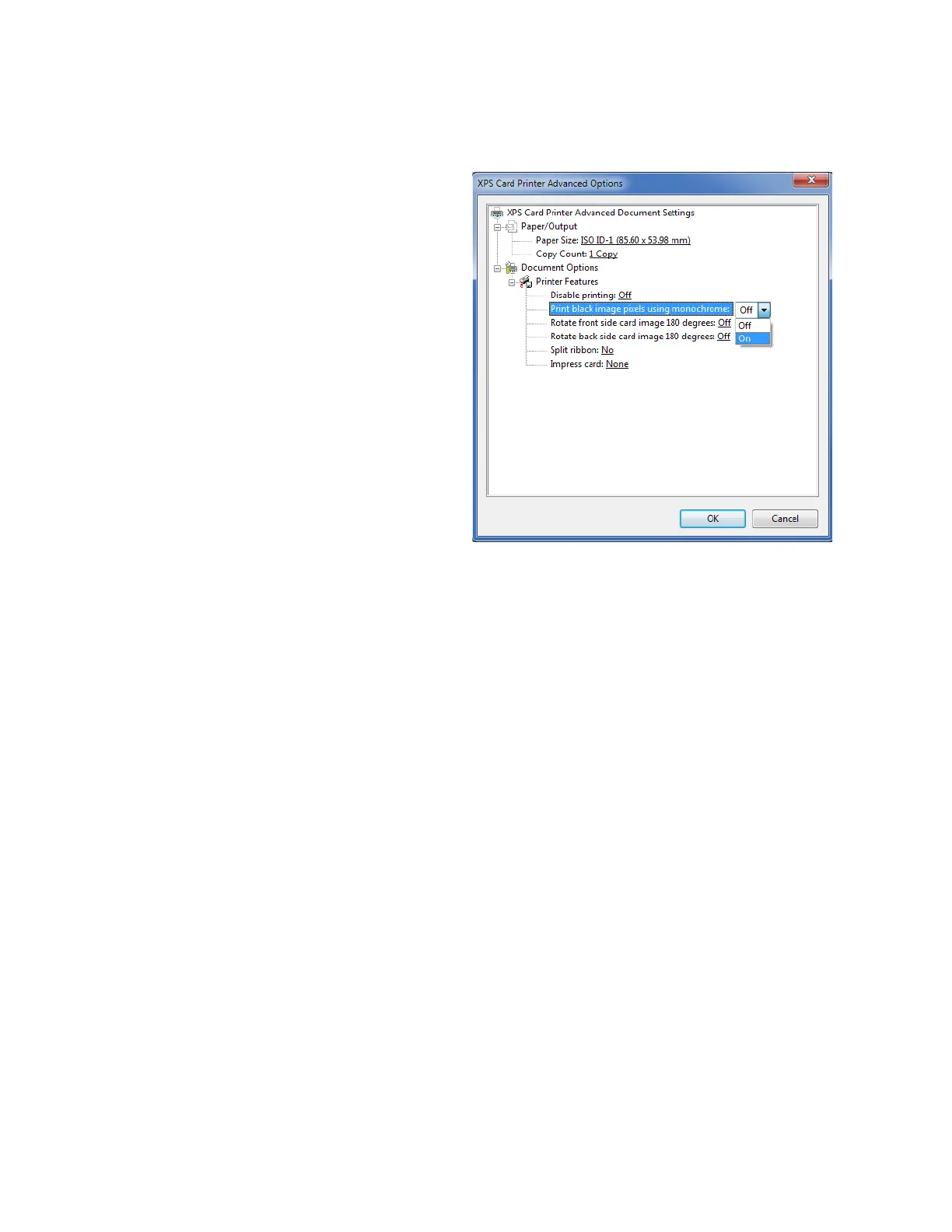

To specify the Print black image pixels using monochrome option:
1. Open the Printing Preferences
window.
2. On the Layout tab, click Advanced.
3. Set Print black image pixels using
monochrome to On.
4. Click OK to close the Advanced
Options window.
5. Click Apply on the Printing
Preferences window.
6. Click OK to close the window.

DataCard CD800 Specifications

General

Print Resolution	300 dpi
Weight	12 lbs (5.4 kg)
Power Requirements	100-240 VAC, 50/60 Hz
Print Technology	Dye-sublimation
Card Capacity	100 cards (standard hopper)
Connectivity	USB
Card Size	CR80 (85.6 mm x 54 mm)
Operating System Compatibility	Windows
Card Thickness	0.020" - 0.040" (0.51 mm - 1.02 mm)
