DataCard SD260 User Guide

96 Card Design Tasks
Printer Setup for Rewritable Cards
Printing rewritable cards on a printer that supports the rewrite option requires that the printer,
Printer Manager, and the Card Printer Driver all are set up properly.
Set Up the Printer
Do the following to prepare the printer to print rewritable cards:
1. Open the printer cover and remove the print ribbon cartridge.
2. Remove the print ribbon from the cartridge and set it aside.
Make sure that the cleaning roller with the replaceable cleaning sleeve is installed.
3. Return the print ribbon cartridge to the printer.
4. Close the printer cover.
5. Have rewritable cards available to insert into the printer.
Refer to your printer’s User’s Guide for complete information about each of these steps.
Set Up Printer Manager
Use Printer Manager to enable rewritable printing. Do the following to access Printer Manager
and specify rewritable settings:
1. Open the Windows Devices and Printers window.

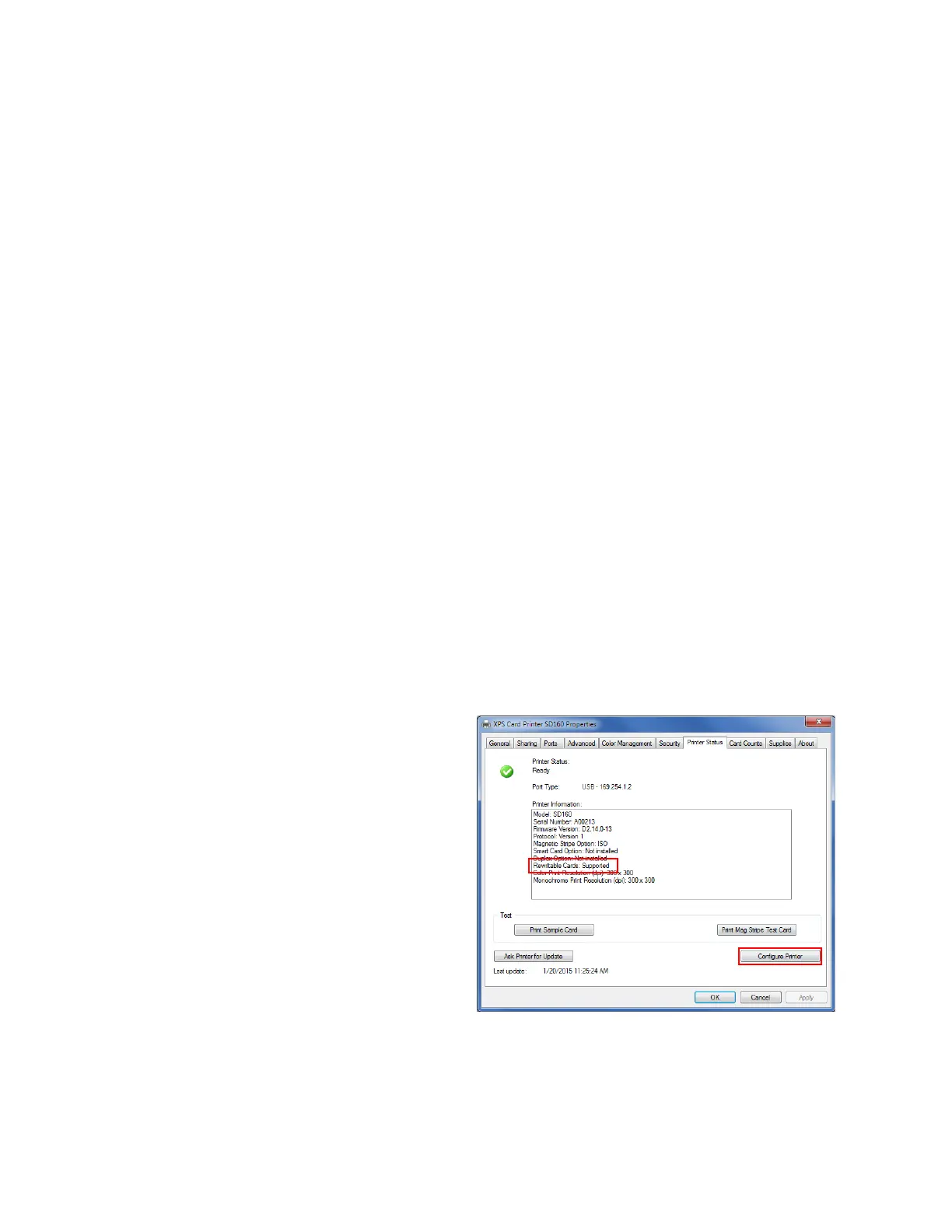

2. Right-click the XPS Card Printer icon
and select Printer properties.
3. Select the Printer Status tab.
4. Confirm that the Printer Information
list shows that the printer supports
Rewritable Cards.
5. Click Configure Printer to launch
Printer Manager.
6. Log in as WebAdmin.

DataCard SD260 Specifications

General

Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Color	Yes
Print speed (color)	200 card/h
Product color	Blue, Grey

Weight and Dimensions

Depth	391 mm
Width	175 mm
Height	224 mm
