DataCard SD260 User Guide

XPS Card Printer Driver User’s Guide 105

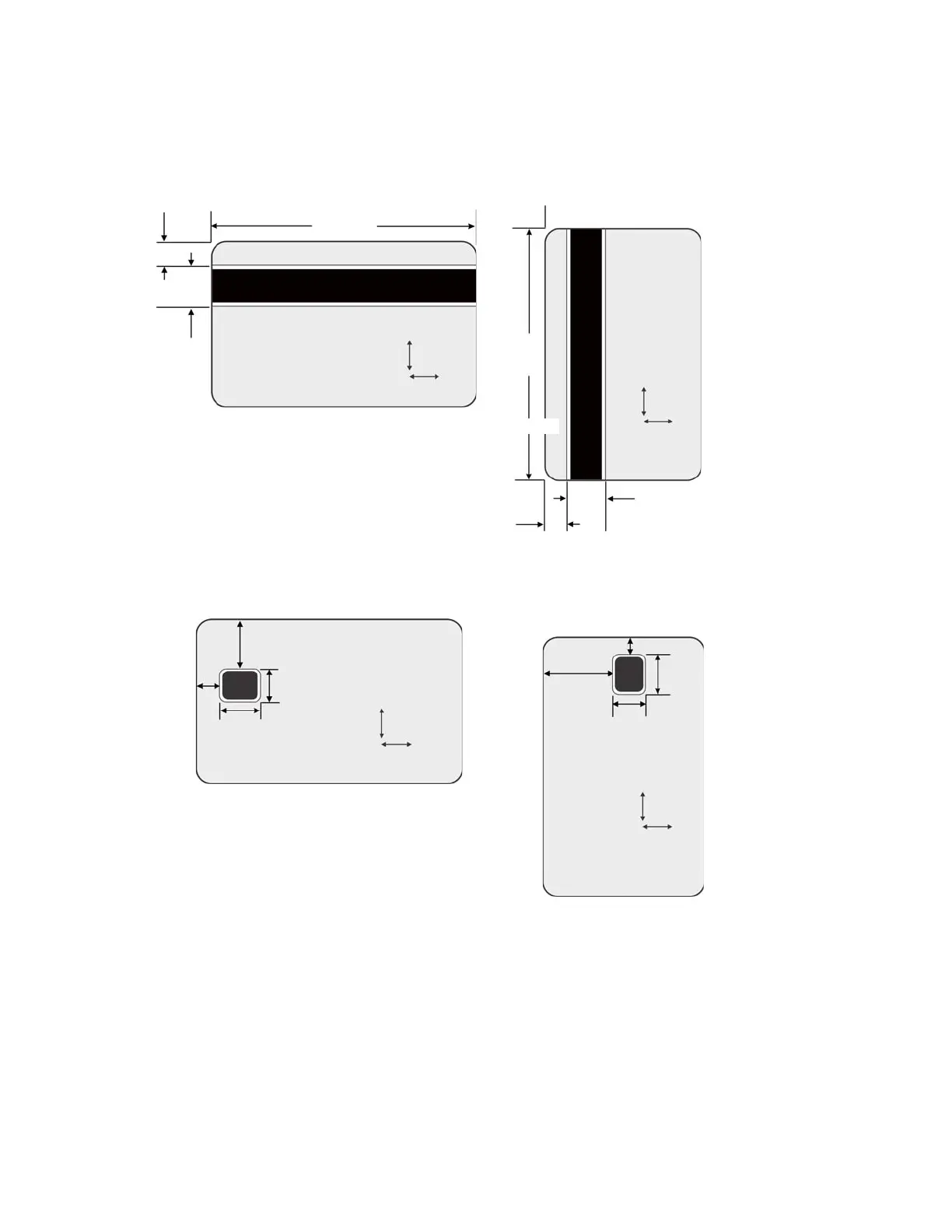

The following example shows the direct-to-card print blocking dimensions for a three-track
magnetic stripe area.
The following example shows sample direct-to-card print blocking dimensions for a smart card
chip. The actual measurements can vary depending on the size and location of the chip.
W
H
W
H
n4
n3
n4
n1
Left edge
Top of card
Left edge
n2
n3
Landscape
n1 = 3.2 mm
n2 = 0
n3 = 86 mm
n4 = 14.7 mm
Portrait
n1 = 0
n2 = 3.5 mm
n3 = 14 mm
n4 = 86 mm
n2
Top of card
n1
Left edge
Top of card
Left edge
n1
n2
n3
n4
H
W
Top of card
n1
n2
n3
n4
H
W
Landscape
n1 = 17.3 mm
n2 = 8 mm
n3 = 14.3 mm
n4 = 13 mm
Portrait
n1 = 8 mm
n2 = 23.6 mm
n3 = 13 mm
n4 = 14 mm

DataCard SD260 Specifications

General

Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Color	Yes
Print speed (color)	200 card/h
Product color	Blue, Grey

Weight and Dimensions

Depth	391 mm
Width	175 mm
Height	224 mm
