DS2400N QUICK GUIDE
5

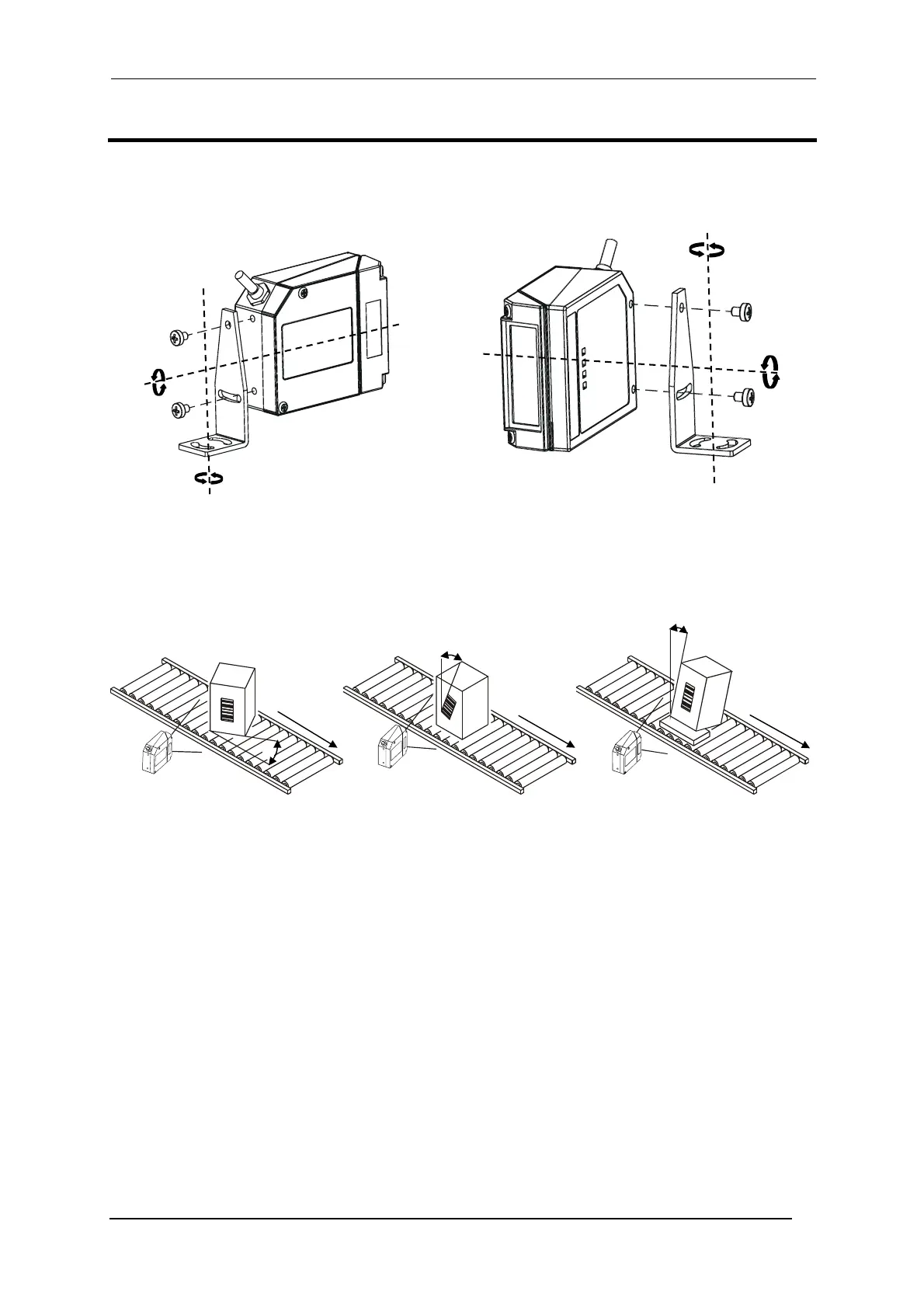

STEP 2 – MOUNT AND POSITION THE SCANNER
1. To mount the DS2400N, use the mounting bracket to obtain the most suitable position for the reader as
shown in the figures below.
Figure 3 - Positioning with Mounting Bracket
2. When mounting the DS2400N take into consideration these three ideal label position angles:, Skew 10° to 30°,
Tilt 0° and Pitch 0°.
Assure at least 10° Minimize Minimize
Figure 4 –, Skew, Tilt and Pitch Angles
3. Refer to the Reading Diagrams in the Appendix of this Quick Reference Guide to decide the distance your
scanner should be positioned at.
Skew
Tilt
Skew
Pitch
P
T
S

Datalogic DS2400N Specifications

General

Type	-
Sensor type	Laser
Read rate (max)	1000 reads/s
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), Pharmacode, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232, RS-485
Connectivity technology	Wired
Input voltage	10 - 30 V
Power source type	DC
Power consumption (typical)	5 W
Certification	IEC
Product color	Blue, Yellow
Housing material	Aluminum
International Protection (IP) code	IP65
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	34 mm
Width	84 mm
Height	68 mm
Weight	330 g
