TYPICAL LAYOUTS
The QLM600 Profibus Gateway active connection module can also be used. System
configuration can be accomplished through the Auxiliary interface of the Master scanner
(QLM600 Aux connector) using the Genius configuration program or Genius based Host
Mode programming.

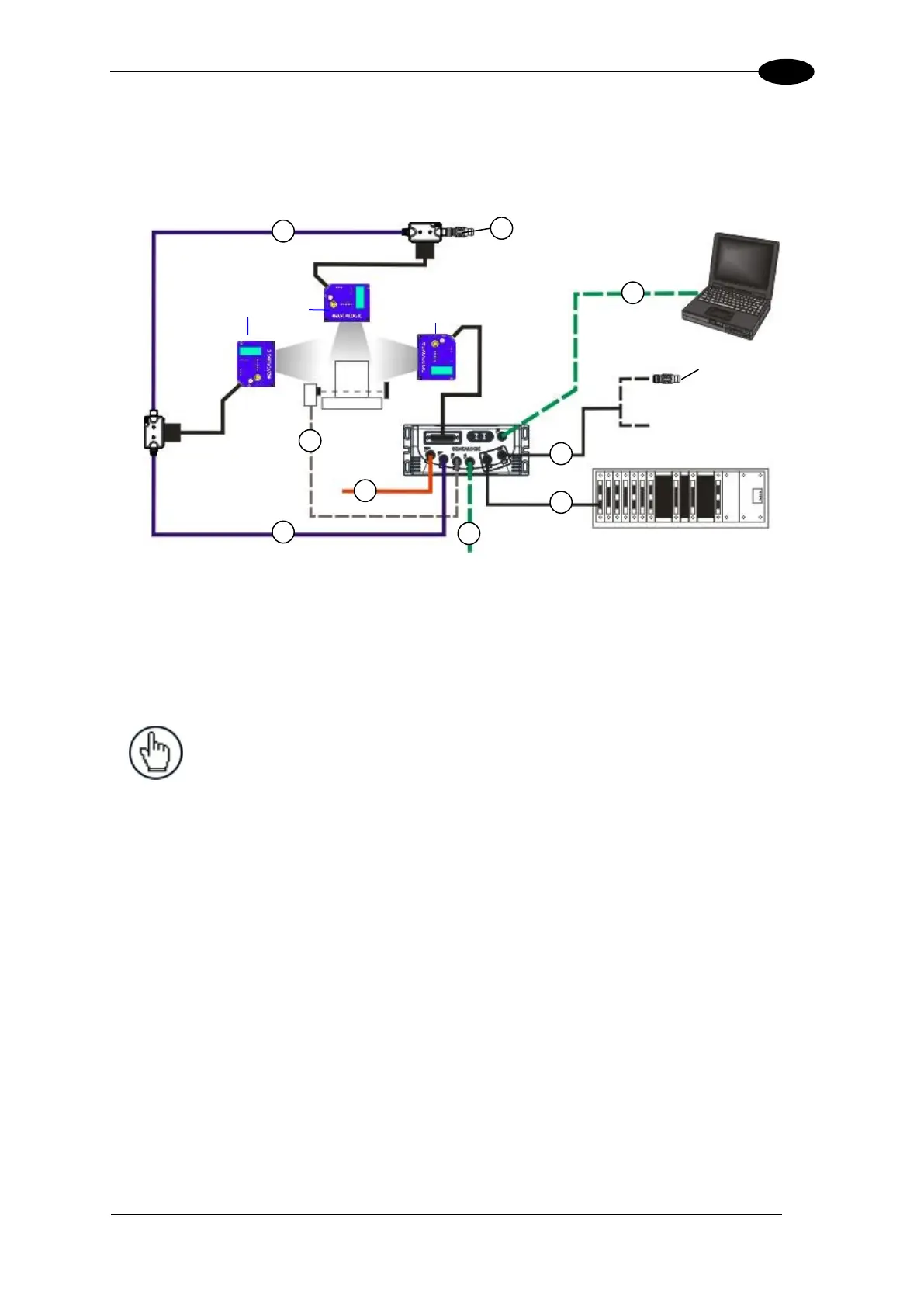

Figure 65 - ID-NET Synchronized Network – DS5100 Master with QLM600 + DS5100 Slaves with QL100s
Input Power
Profibus Interface
External Trigger (for On-Line Mode)
External Digital I/O Devices
Aux port for Reader Configuration
ID-NET Network
ID-NET Terminator
NOTE: The ID-NET network must be terminated inserting an ID-NET
terminator into the last QL in the network. ID-NET on the QLM600 is internally
terminated.
