Disconnecting the Cable
4
GRYPHON™ I GD4200
DISCONNECTING THE CABLE

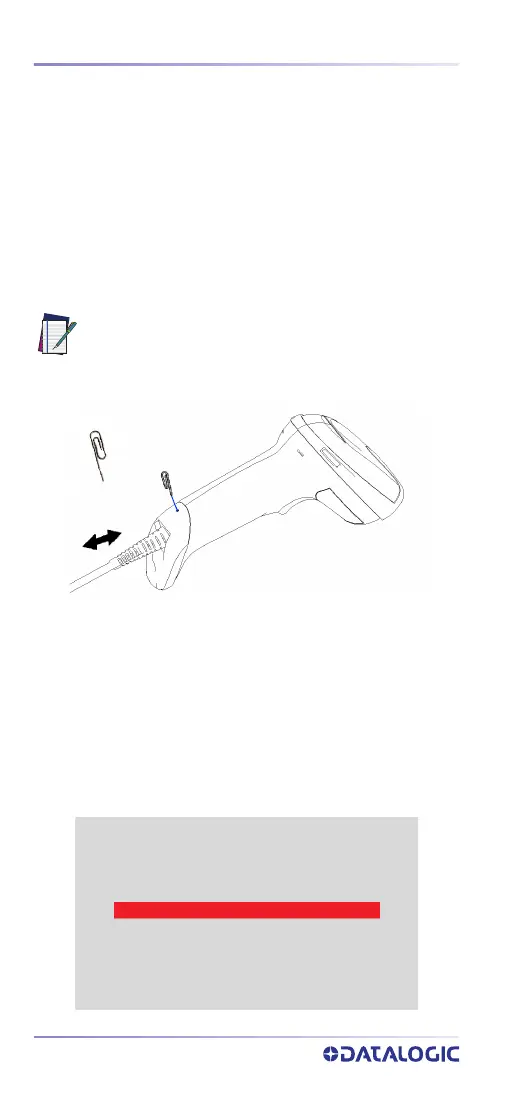

To remove the interface cable from the reader, first locate
the hole on the back of the handle. Next, take a paper clip
and modify it as shown in the figure below. Insert the end
of the paper clip into the hole and press it to push on the
clip that holds the connector. As you apply pressure, pull
out the cable.
When reinserting
the cable, make sure the connector
clip is on the same side as the reader release hole. Insert
the cable, it should click when it is fully inserted.
USING THE GRYPHON™ I GD4200
The Gryphon™ I GD4200 normally functions by capturing
and decoding codes. The reader is equipped with an inter-
nal Motionix™ motion-sensing function which activates
the aiming system on device motion. The intelligent aim-
ing system indicates the field of view which should be
positioned over the bar code:
Aiming System
NOTE: We recommend the use of a perfectly
straight new staple to make the operation easier
(see the pictures below).
