Parts of the Reader
6
GRYPHON™ I GD4200

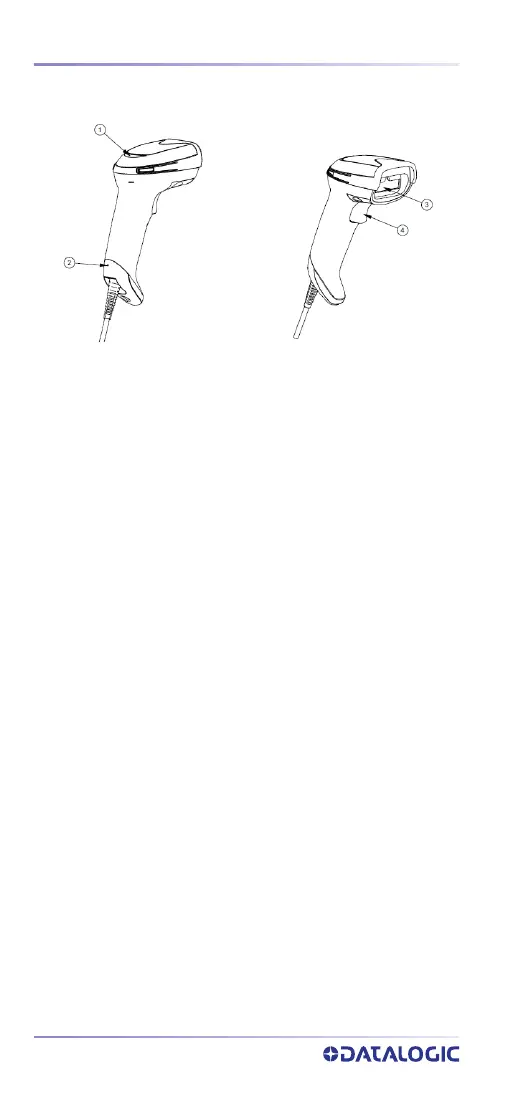

PARTS OF THE READER
SELECTING THE INTERFACE TYPE
Upon completing the physical connection between the
reader and its host, proceed directly to Interface Selection
below for information and programming for the interface
type supported by the reader and scan the appropriate
bar code to select your system’s correct interface type,
according to your application.
For interfaces other than those listed in this manual, see
the Gryphon™ I GD4200 Product Reference Guide (PRG),
available online at www.datalogic.com.
Interface Selection
The reader will support all the following host interfaces:
• RS-232 STD
• RS-232 WN
• IBM46XX port 9b (a specific cable's required)
• USB HID POS
• USB Toshiba TEC
• USB (Keyboard, COM, OEM)
• USB Composite (Keyboard + COM)
• USB for Magellan Scanners
• Keyboard Wedge
Information and programming options for each interface
type are provided in this section. For defaults and addi-
tional information associated with each interface, proceed
to the corresponding chapter in the Gryphon™ I GD4200
PRG.
1. LED 2. Cable Release Hole
3. Scan Window 4. Trigger
