Datalogic Gryphon GBT4100 User Manual

Connecting the Base Station
Quick Reference Guide 9

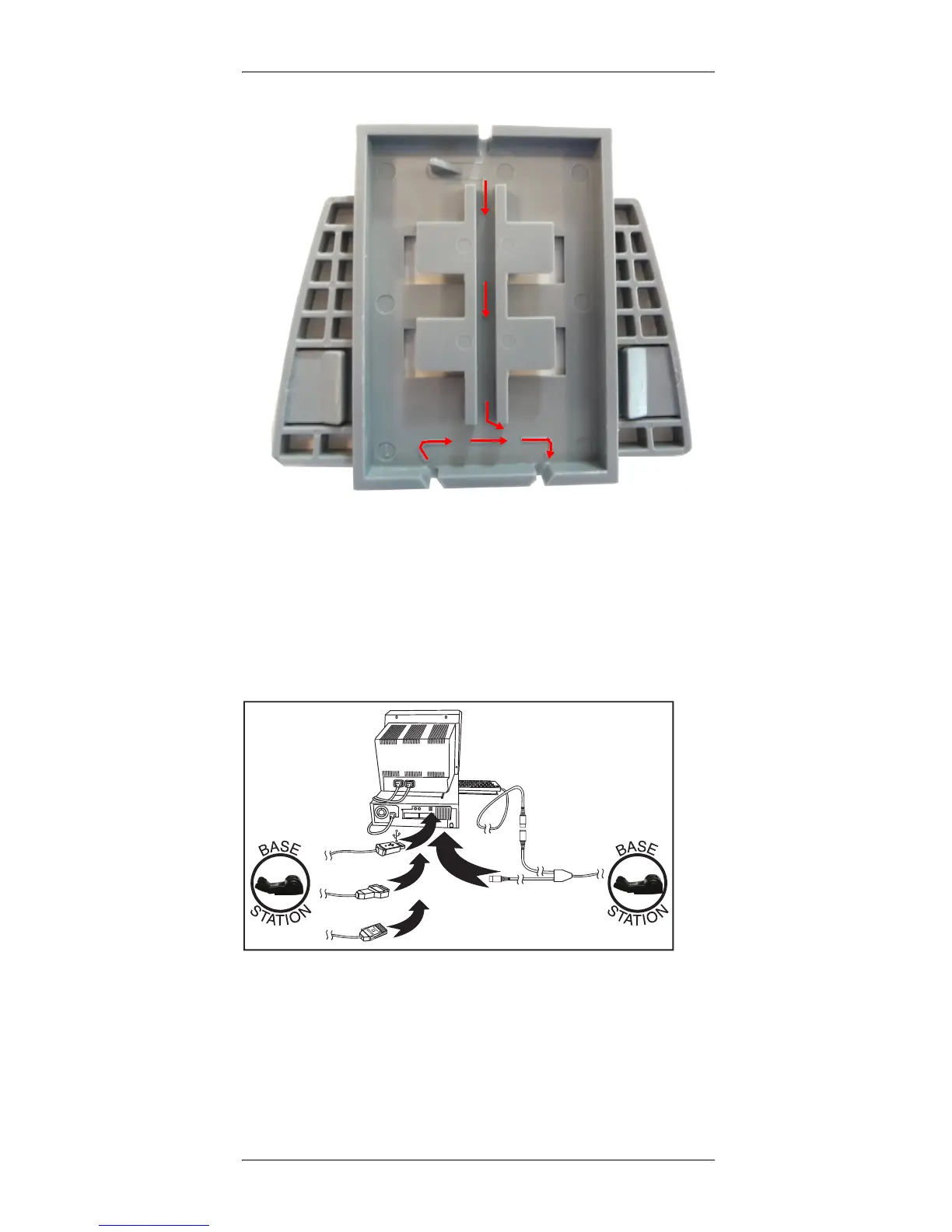

Figure 3. Arrows showing routing
Host Connection:
Verify before connection that the reader’s cable
type is compatible with your host equipment. Most connections
plug directly into the host device as shown in Figure 4 on page 9.
Keyboard Wedge interface cables have a ‘Y’ connection where its
female end mates with the male end of the cable from the key-
board and the remaining end at the keyboard port on the termi-
nal/PC.
Figure 4. Connecting to the Host
Power Connection :
Plug the AC Adapter in to an approved AC
wall socket with the cable facing downwards (as shown in Figure
1) to prevent undue strain on the socket.
U
S
B
I
B
M
K
e
y
b
o
a
r
d
W
e
d
g
e
W
a
n
d
or...
or...
or...

Datalogic Gryphon GBT4100 Specifications

General

Brand	Datalogic
Model	Gryphon GBT4100
Category	Barcode Reader
Language	English
