Datalogic Gryphon GBT4100 User Manual

Connecting the Base Station
8 Gryphon™ I GBT4100

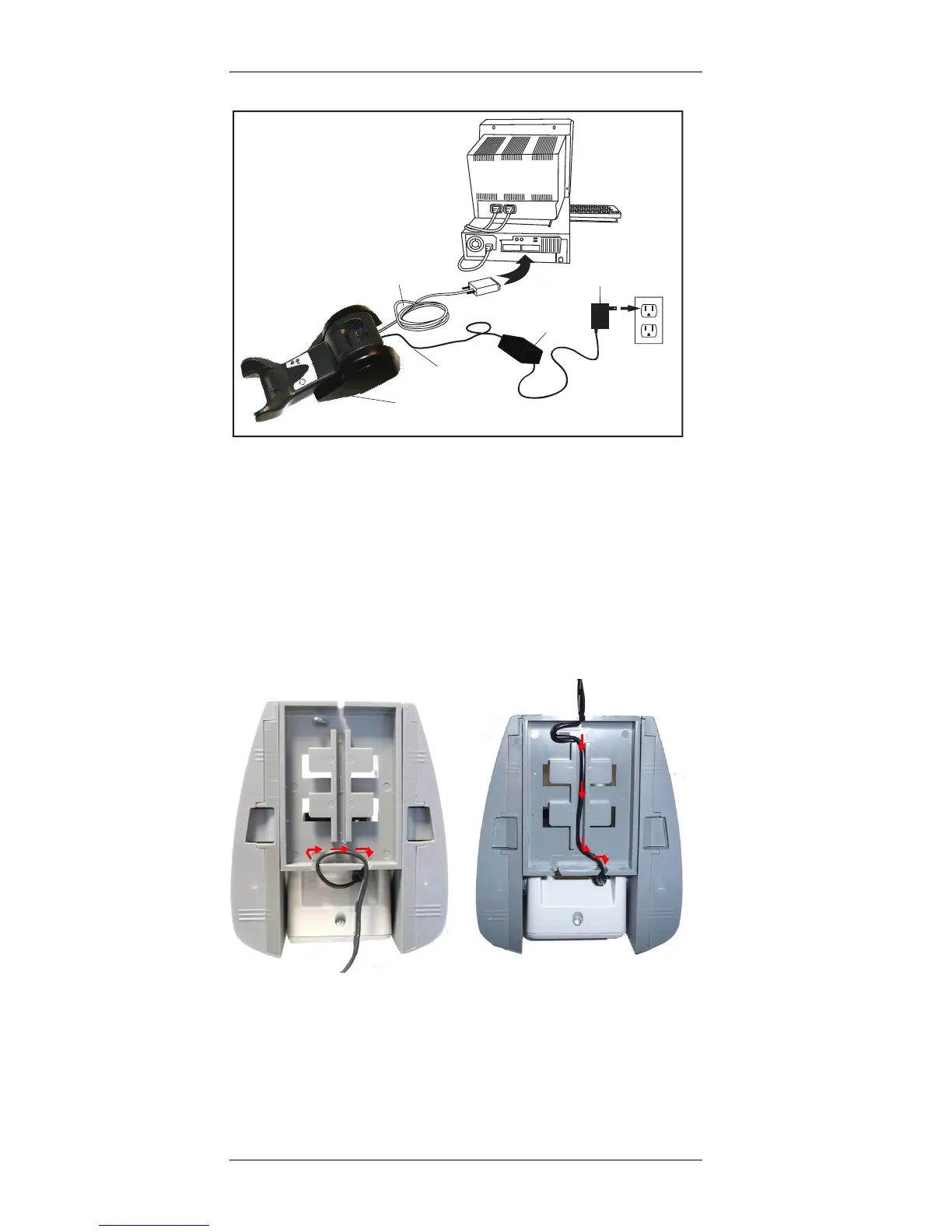

Figure 1. Connecting the Base Station
Securing the DC Power Cord (Optional)
The DC power cord for the adapter can be secured to the bottom
of the base in order to maximize the mechanical retention of the
cable itself. The routing of the power cord can be changed to ac-
commodate the base station positioning: horizontal, stand or wall
mounting. The cables can be looped around to the front of the
Base Station, or fed directly out the back of the Base Station, as
shown in Figure 2 on page 8.
Figure 2. Options for routing the DC cord
Please refer to the arrows depicted on the bottom of the base when
placing the cables, detailed in Figure 3.
Base
Station
I/F Cable
AC/DC
Adapter
DC Power
Cord
Wall plug
Connector
