Using the Gryphon™ I GFS4500
QUICK REFERENCE GUIDE
7
USING THE GRYPHON™ I GFS4500
The Gryphon™ GFS4500 normally functions by capturing
and decoding codes. The reader is equipped with an inter-
nal Motionix™ motion-sensing function which activates
the aiming system on device motion. The intelligent aim-
ing system indicates the field of view which should be
positioned over the bar code.

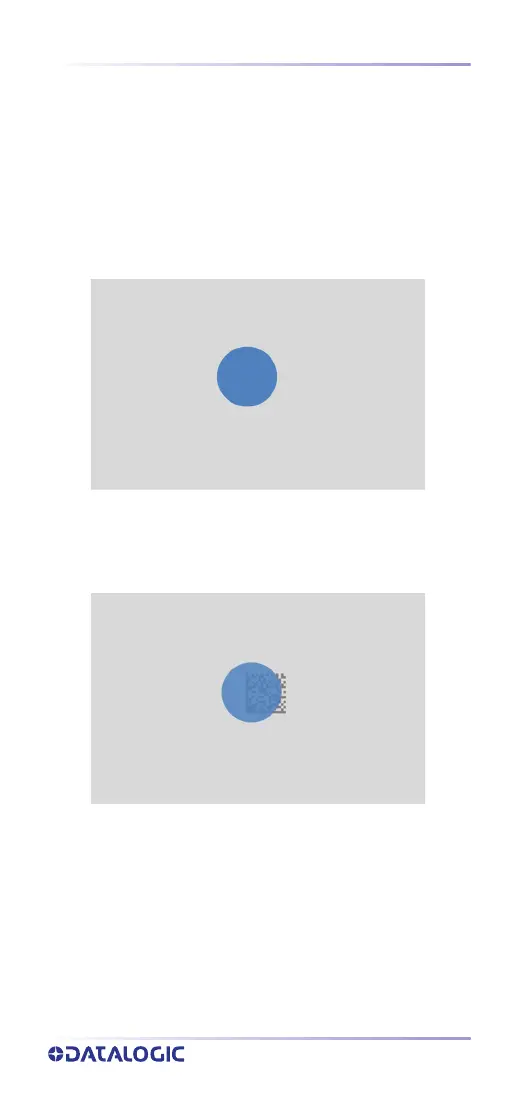

Figure 1. Gryphon™ GFS4500’s Aiming System
Figure 2. Relative Size and Location of Gryphon™
GFS4500’s Aiming System Pattern on 2D Matrix Symbol
