Datalogic Gryphon GFS4500 - Output Connection - Typical Layout

Technical Specifications
QUICK REFERENCE GUIDE 29

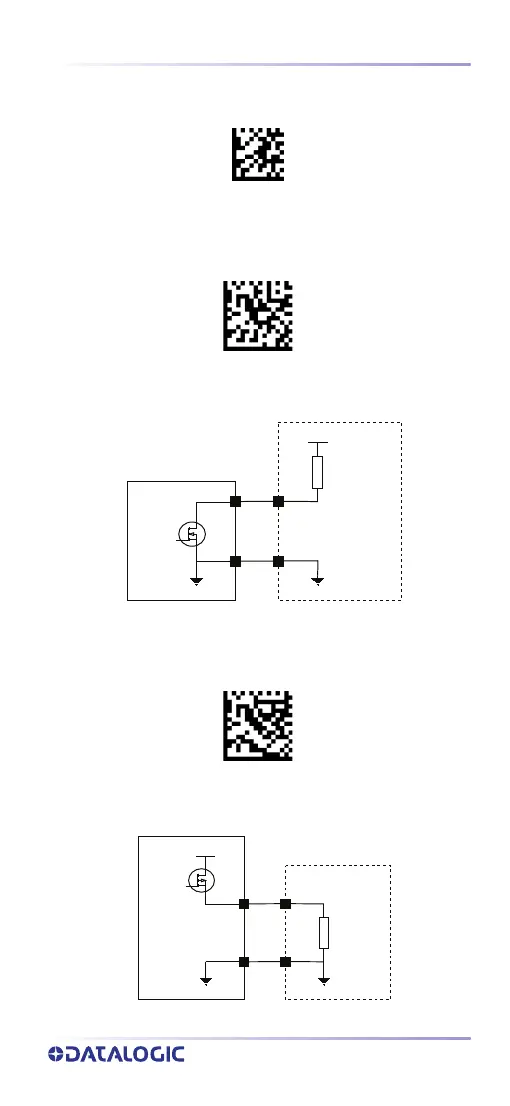

Output connection - Typical layout
Figure 8. NPN output configuration
Figure 9. PNP output configuration
ENTER/EXIT PROGRAMMING MODE
★ NPN configuration = Set Output Configuration to NPN
PNP configuration = Set Output Configuration to PNP
GFS4550 / GFE4590
USER INTERFACE
NPN Output Connection
Load
Vext [14V max.]
VDC
GFS4550 / GFE4590
USER INTERFACE
PNP Output Connection
Load
