Datalogic Gryphon I GPS4400 Quick Reference Guide

Technical Features
Quick Reference Guide 23
Host Interface Connections
The reader auto-detects if a USB host cable is attached at powerup,
and switches the host interface to USB in that event.
1 RTS (out) RS-232 Request to Send (output from scanner)
2 D+ USB D PluS
3D-USB D Minus
4GNDGround
5 RX RS-232 Receive Data (input to scanner)
6 TX RS-232 Transmit Data (output from scanner)
7VCC+5Vdc
8 NC No connection
9 NC No connection
10 CTS (in) RS-232 Clear To Send (input to scanner)

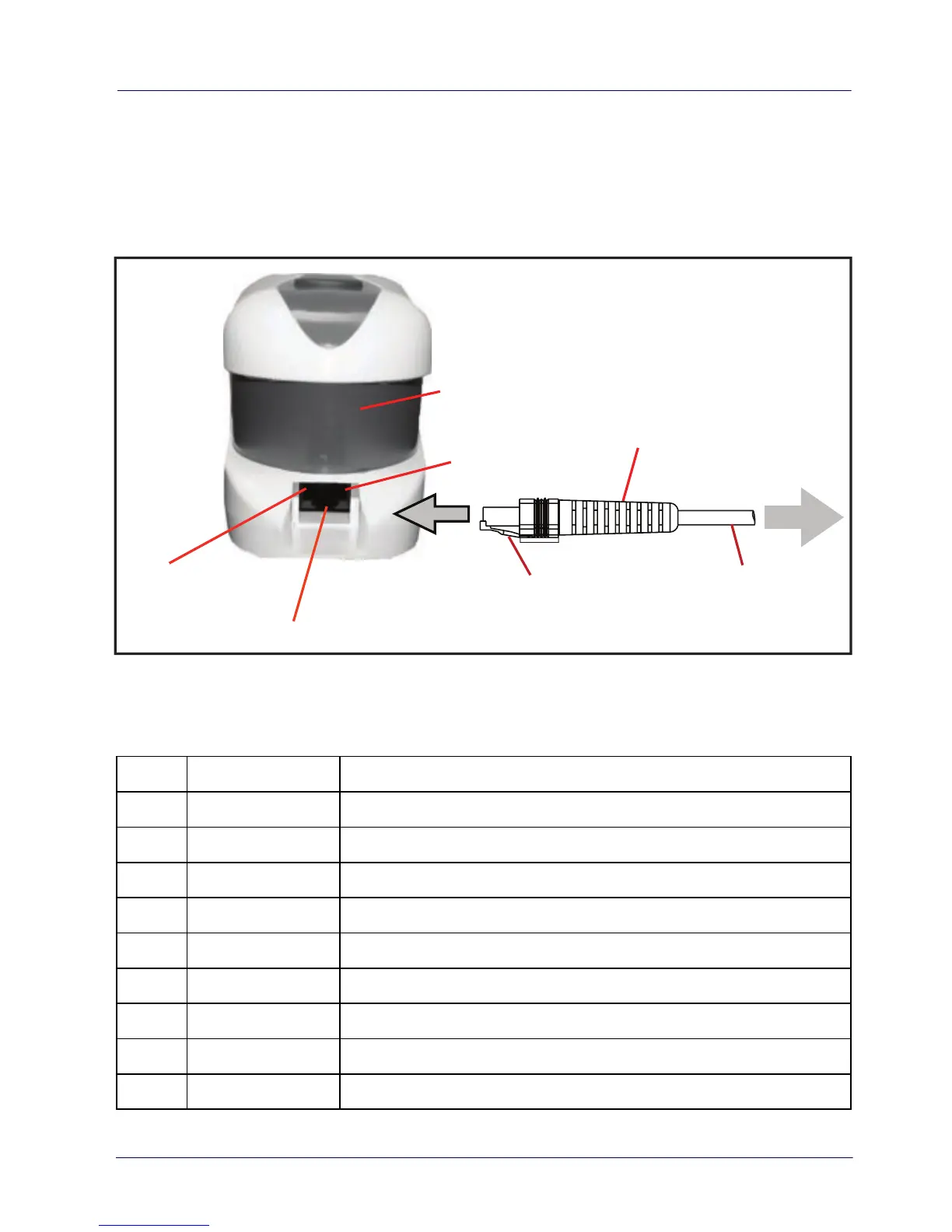

Pin 10
Cable Clip (Latch)
To Host
Cable
Cable Strain Relief
Back of Scanner
Interface Cable Port
Pin 1

Datalogic Gryphon I GPS4400 Specifications

General

Type	Fixed bar code reader
Sensor type	Laser
Scanner type	2D
Tilt reading angle	-180 - 180 °
Pitch reading angle	-40 - 40 °
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Input voltage	5 V
USB version	2.0
Standard interfaces	USB, RS-232
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Buzzer	Yes
Product color	White
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	73 mm
Width	121 mm
Height	107 mm
Weight	295 g
