Datalogic Lynx User Manual

USE AND FUNCTIONING
107
4
4.12 APPSELECTOR (APPLICATION SELECTOR)
The Application Selector is an application that allows a device to run in kiosk mode.
The administrator can choose for the user to have access to the desktop or not. The
Application Selector can replace the desktop and limit the user to the specified list of
applications.
By default, the Application Selector comes with the LockedWeb preset.

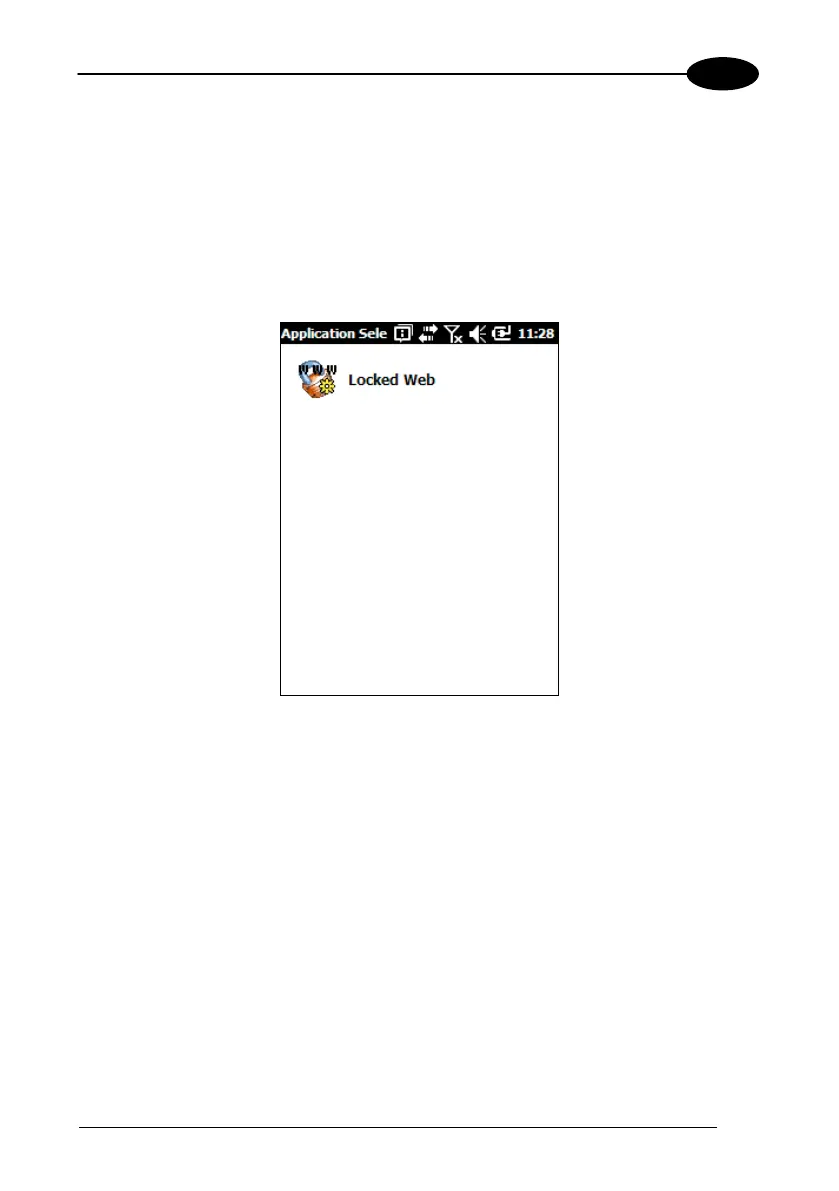

Application Selector
The administrator can customize this list as shown in chapter 4.12.5. To run an
application, tap on its name.
Additionally, the page template can be modified to display a different background.
Contact your Datalogic representative for more information on this feature.
To exit from Application Selector, press ALT + 6, uncheck the ‘Enable Application
Selector’ check box on the AppSelect tab and press OK to exit DDU.

Datalogic Lynx Specifications

General

Display diagonal	2.7 \
Display resolution	320 x 240 pixels
Display number of colors	262144 colors
Flash memory	0.512 GB
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	microSD (TransFlash), microSDHC
Processor family	PXA 310
Processor frequency	0.806 GHz
Data network	HSPA+
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	2.0+EDR
Operating frequency	800, 850, 900, 1900, 2100 MHz
Security algorithms	CCX v4
Built-in camera	-
Interface	micro USB, RS-232
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Battery capacity	1800 mAh
RFID reader	No
Product color	Black
Keyboard layout	QWERTY
Keypad number of keys	46
Operating system installed	Windows Embedded Handheld 6.5

Weight and Dimensions

Depth	27 mm
Width	68 mm
Height	144 mm
Weight	270 g
