4.3.2 Imager Data Capture
The Lynx Imager captures a picture of the entire bar code. The omni-directional
scanning does not require that the operator orient the bar code to align with the scan
pattern.

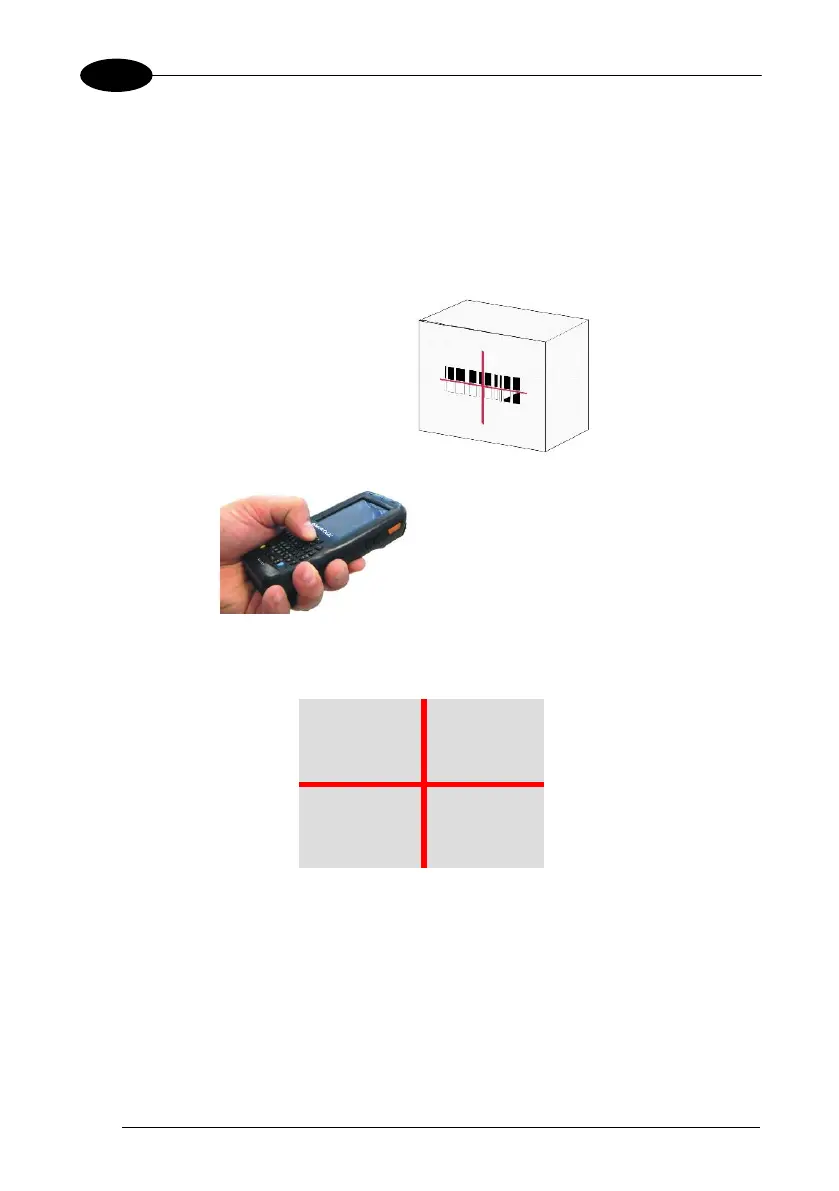

To read a 1D or 2D code, simply point the Lynx Imager model onto the code and
press the SCAN Key.
The Lynx Imager uses an intelligent aiming system pattern, similar to those on
cameras, indicating the field of view, which should be positioned over the code:
Aiming System
If the aiming system pattern is centered over the entire symbology as shown in the
following figure, either wait for the timeout or release the Scan key to capture the
image.
A red beam illuminates the code, which is captured and decoded. You will get a good
read.

Datalogic Lynx Specifications

General

Display diagonal	2.7 \
Display resolution	320 x 240 pixels
Display number of colors	262144 colors
Flash memory	0.512 GB
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	microSD (TransFlash), microSDHC
Processor family	PXA 310
Processor frequency	0.806 GHz
Data network	HSPA+
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	2.0+EDR
Operating frequency	800, 850, 900, 1900, 2100 MHz
Security algorithms	CCX v4
Built-in camera	-
Interface	micro USB, RS-232
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Battery capacity	1800 mAh
RFID reader	No
Product color	Black
Keyboard layout	QWERTY
Keypad number of keys	46
Operating system installed	Windows Embedded Handheld 6.5

Weight and Dimensions

Depth	27 mm
Width	68 mm
Height	144 mm
Weight	270 g
