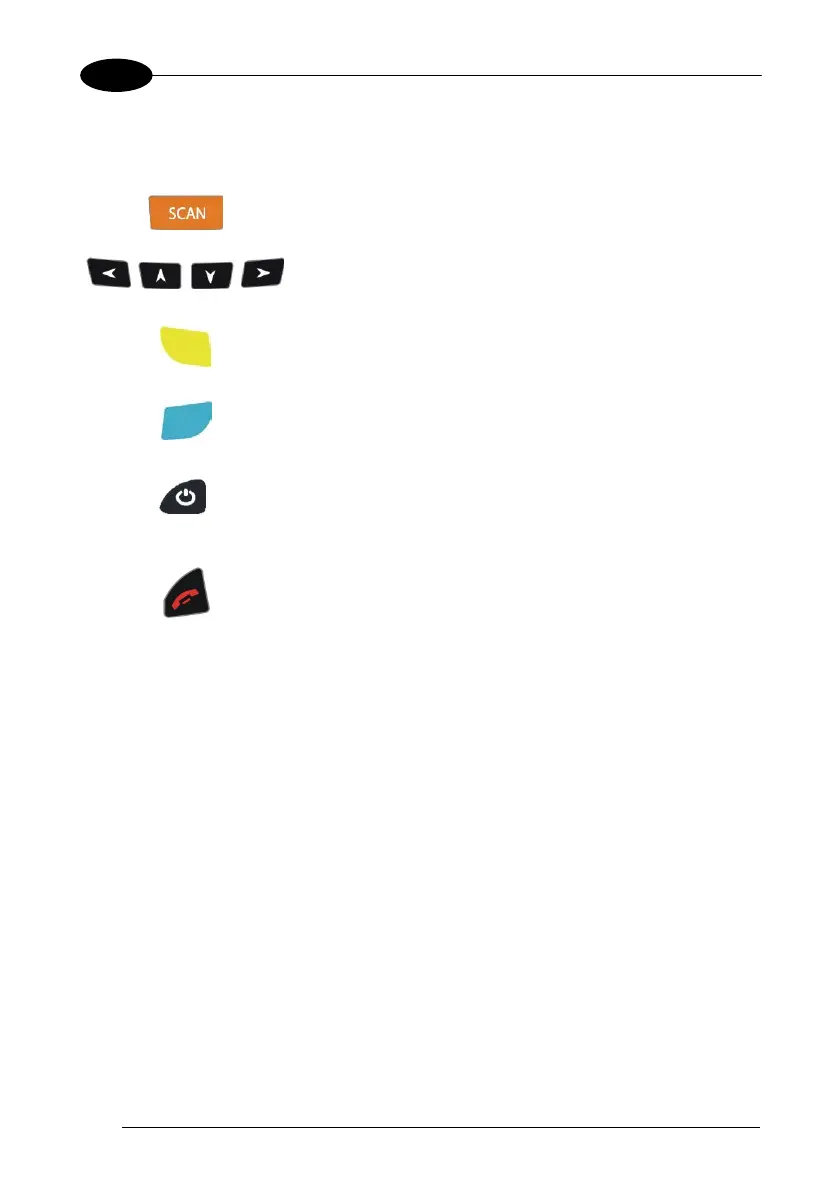

Main Keys Function
KEY FUNCTION
Pressing the SCAN key starts barcode data capture.
Pressing cursor keys
lets you move forwards,
backwards, upwards or downwards within text fields,
scroll through a Menu list or browse among folder files.
Yellow modifier (toggle key): when pressed before a
standard key, it enables the character or functi
on printed
in yellow above the key.
Blue modifier (one shot key): when pressed before a
standard key, it enables the character or function printed
in blue above the key
It powers the Lynx
ON or OFF. It is placed on the upper
left side of the terminal.
The Telephone End key normally generates the
VK_TEND virtual key code, used to hang-
up phone calls
and to quickly return to the Today screen.
In blue mode, the Telephone End
key generates a
VK_ESCAPE virtual key code for applications that use
the Esc key to cancel
(e.g. touch screen calibration
application).

Datalogic Lynx Specifications

General

Display diagonal	2.7 \
Display resolution	320 x 240 pixels
Display number of colors	262144 colors
Flash memory	0.512 GB
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	microSD (TransFlash), microSDHC
Processor family	PXA 310
Processor frequency	0.806 GHz
Data network	HSPA+
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	2.0+EDR
Operating frequency	800, 850, 900, 1900, 2100 MHz
Security algorithms	CCX v4
Built-in camera	-
Interface	micro USB, RS-232
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Battery capacity	1800 mAh
RFID reader	No
Product color	Black
Keyboard layout	QWERTY
Keypad number of keys	46
Operating system installed	Windows Embedded Handheld 6.5

Weight and Dimensions

Depth	27 mm
Width	68 mm
Height	144 mm
Weight	270 g
