3.3 RS232 CONNECTION

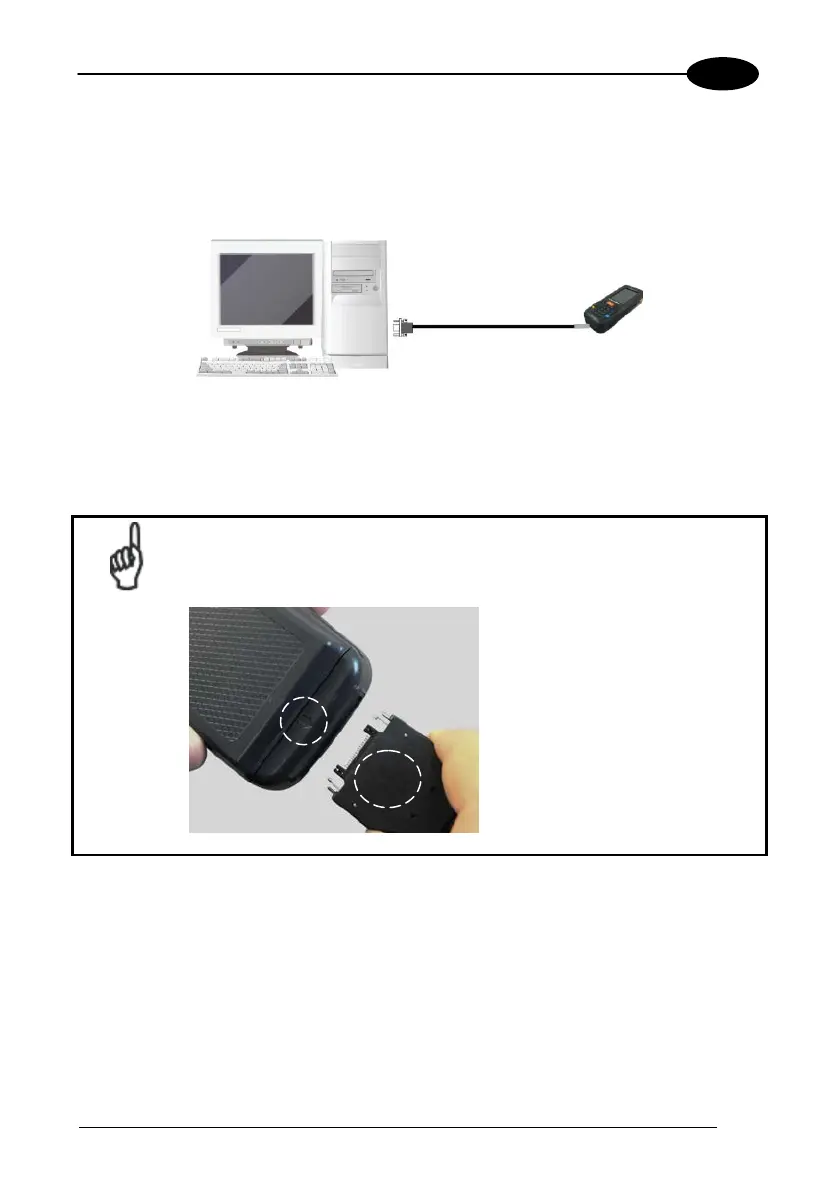

You can use the Datalogic 94A051972 cable to directly connect the Lynx to a host
computer to transfer data through the RS232 interface
Key:
A Host computer C Lynx
B 94A051972 HandyLink™
Micro RS232 Client Cable
Insert the HandyLink™ cable output plug into the HandyLink™
connector of the Lynx, making sure that both the arrows on the
connector and the Lynx face upwards:
NOTE
A
B
C
