Datalogic Lynx User Manual

1 LYNX™
56
4
Devices

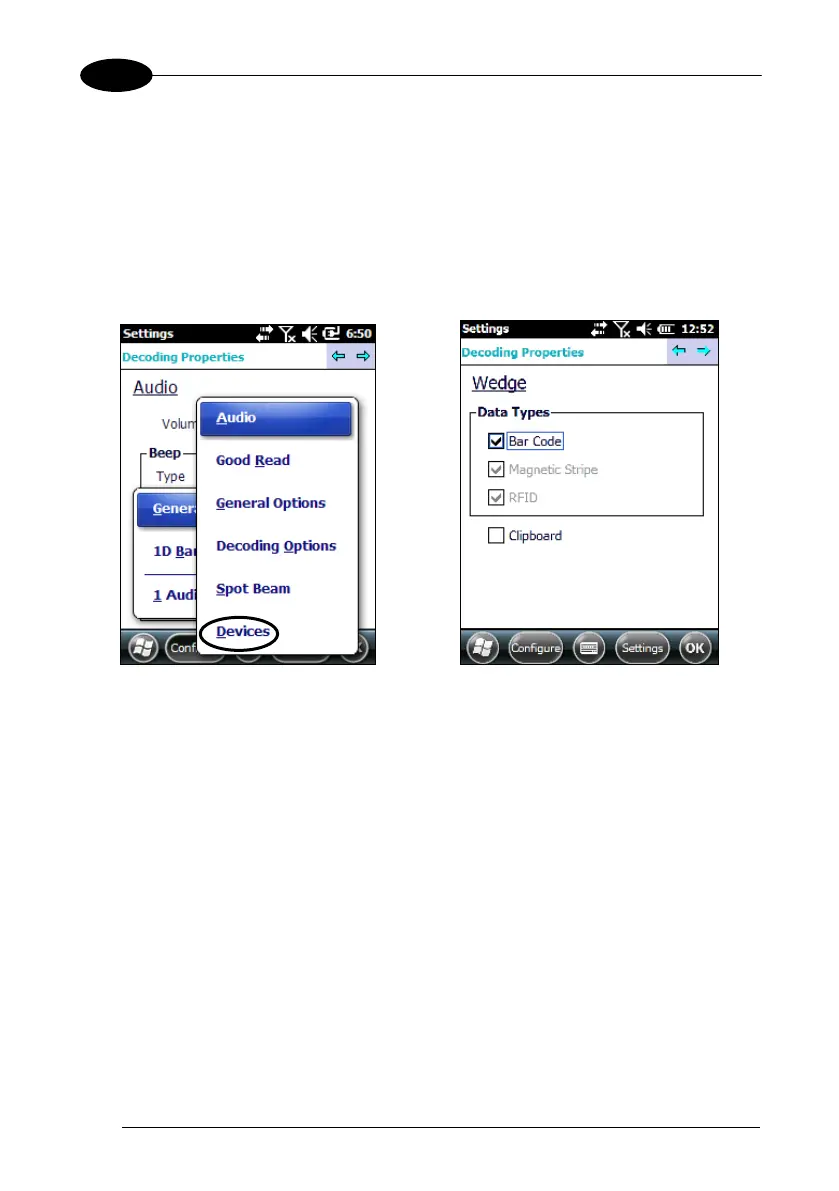

From the Decoding Properties applet, tap Configure > General > Devices. Use it to
enable or disable the keyboard wedge for Barcode scanner. Also use it to enable or
disable the Clipboard mode for passing decoding data to a receiving application.
When the Clipboard checkbox is checked, the Windows clipboard is used to pass
label data, which can be much faster than the keyboard wedge at typing label data
from a large label one character at a time. The disadvantage is that label data will
replace any data already in the Lynx's clipboard.

Datalogic Lynx Specifications

General

Display diagonal	2.7 \
Display resolution	320 x 240 pixels
Display number of colors	262144 colors
Flash memory	0.512 GB
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	microSD (TransFlash), microSDHC
Processor family	PXA 310
Processor frequency	0.806 GHz
Data network	HSPA+
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	2.0+EDR
Operating frequency	800, 850, 900, 1900, 2100 MHz
Security algorithms	CCX v4
Built-in camera	-
Interface	micro USB, RS-232
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Battery capacity	1800 mAh
RFID reader	No
Product color	Black
Keyboard layout	QWERTY
Keypad number of keys	46
Operating system installed	Windows Embedded Handheld 6.5

Weight and Dimensions

Depth	27 mm
Width	68 mm
Height	144 mm
Weight	270 g
