Datalogic Magellan 2200VS Product Reference Guide

Flowcharts
Product Reference Guide 4-5

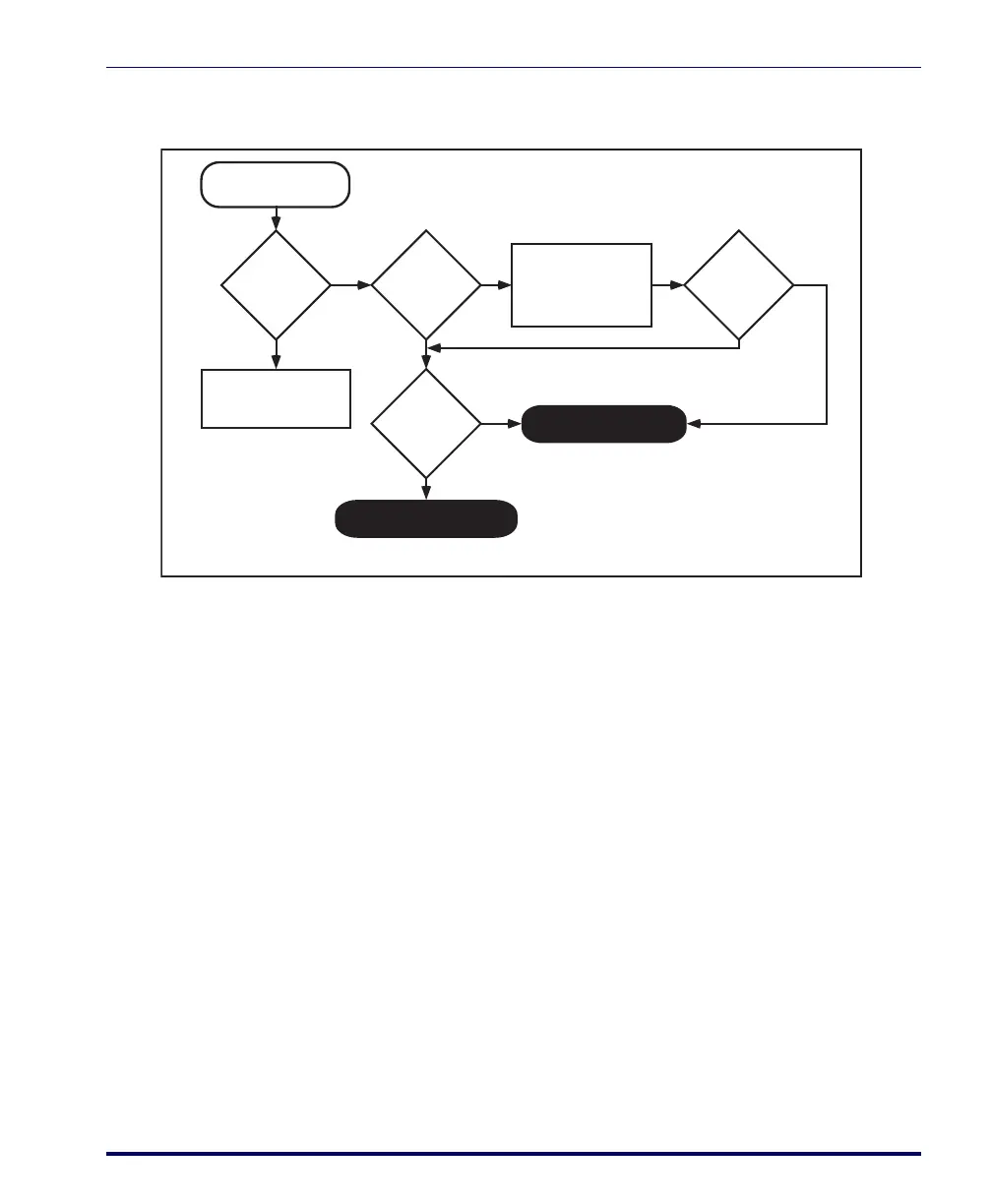

Figure 4-2. Problem Isolation: Selftest
Figure 4-3. Problem Isolation: Poor/No Reading
Call Tech Support
NO
YES
Error
Beeps
?
Unit passes Selftest
YES
NO
Is the
LED
blinking in
error
?
YES YES
NO
NO
Is the
error code
1
?
Is the
error code
1
?
SELFTEST
START
No interface selected
(Null Interface).
Select an interface.
Scan the Factory
Defaults bar code in
Section 6 to enable the
default configuration
file. Restart the unit.

Datalogic Magellan 2200VS Specifications

General

Decoding standards	-1D + GS1 DataBar, -GS1 DataBar Expanded Stacked, -GS1 DataBar Stacked, -GS1 DataBar Stacked Omnidirectional.
Standard interfaces	USB, RS-232
Dimensions (WxDxH)	152 x 152 x 97 mm
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	1100 g
