Quick Reference Guide 3

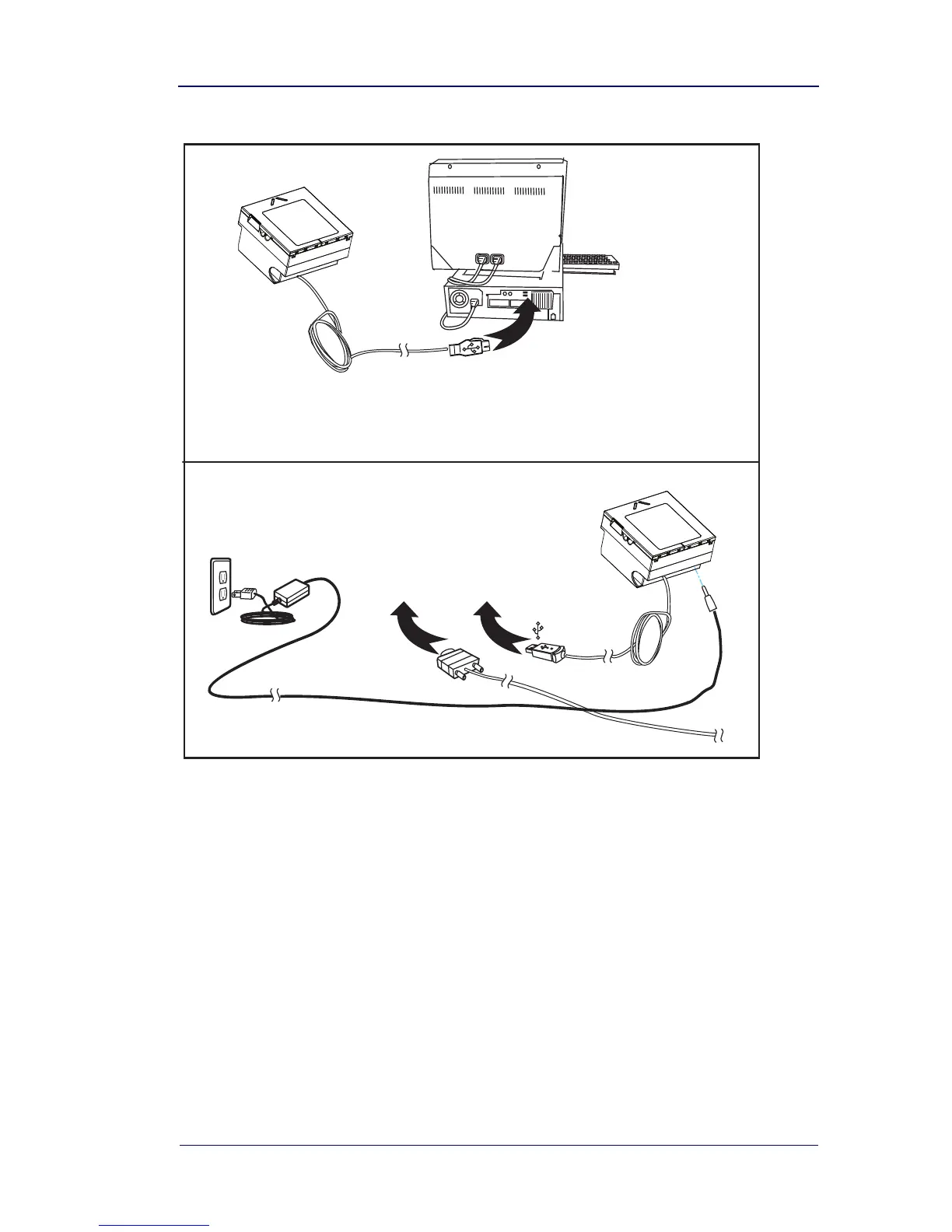

Figure 3. Scanner Cabling
U
S
B
R
S
-
2
3
2
To Terminal (PC)
RS-232
and USB Cables
Powered by AC Adapter
Power Off the
Terminal (POT)
Terminal (PC)
USB+Power
