Installation
4
MAGELLAN™ 3510HSI

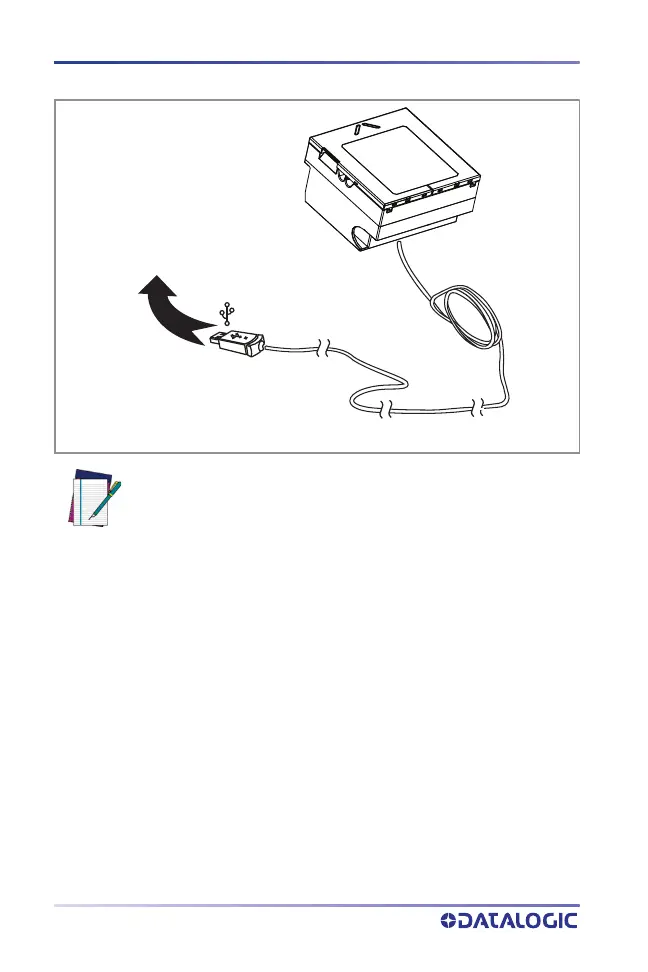

Figure 5. USB Cable Type A Power Off the Terminal
NOTE: This cable (or similar) will not support a USB
peripheral. The system must be powered by 12V in order for
a peripheral to be attached to the AUX USB PORT.
U
S
B
To Terminal (PC)
USB Type A Power Off the
Terminal
