Exit and Save Configuration

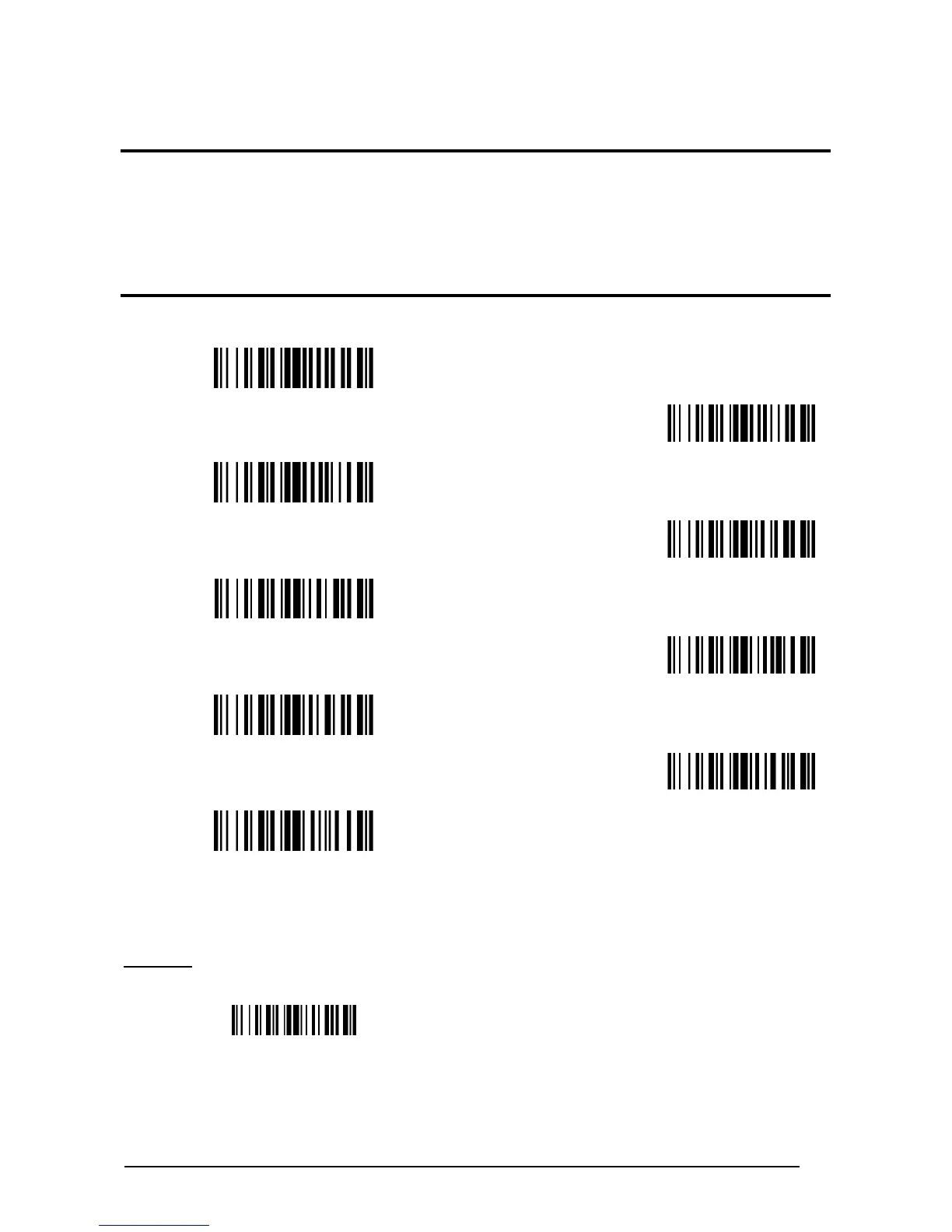

16-KEY DK MODEL PARAMETERS
KEYPAD DATA HEADER/TERMINATOR
Keypad Data Header/Terminator creates an optional Header and Terminator data format added
to data typed on the keypad.
NOTE: Keyboard data format enable/disable must be used to enable the Header and
Terminator setup, so the two parameters should be combined to get the desired result.
HEADER
one character header
two character header
three character header
four character header
five character header
six character header
seven character header
eight character header
After selecting one of the desired Header codes, read the character(s) from the HEX table.
Valid characters are in the range 00-FE. For Wedge and USB-KBD interfaces, it is also possible
to read the Special Key(s) on page 74.
Example
:
Four character header
Hex codes
Header
Read
+
41 + 42 + 43 + 44
=
ABCD
For more details see par. 5.4.1 and par. 5.4.2. See also “Message Formatting” in par. 6.1 and
par. 6.2.
