MOUNTING INSTRUCTIONS
PRODUCT REFERENCE GUIDE
19
Wall Mounting
The base station contains a reversible positioning tab for horizontal or vertical mounting.
Figure 2 - Positioning Tab
When shipped, the base station has the positioning tab installed in the Desktop position
(horizontal). For vertical installation, the positioning tab must be rotated.
Changing the Orientation of the Positioning Tab:
1. Remove the screw holding the tab in place. Keep the screw for reuse.
NOTE: For vertical installation, do not exceed two meters in height.
NOTE: When mounting on drywall, the base station should be screwed to a
wall stud or supporting beam for additional support.

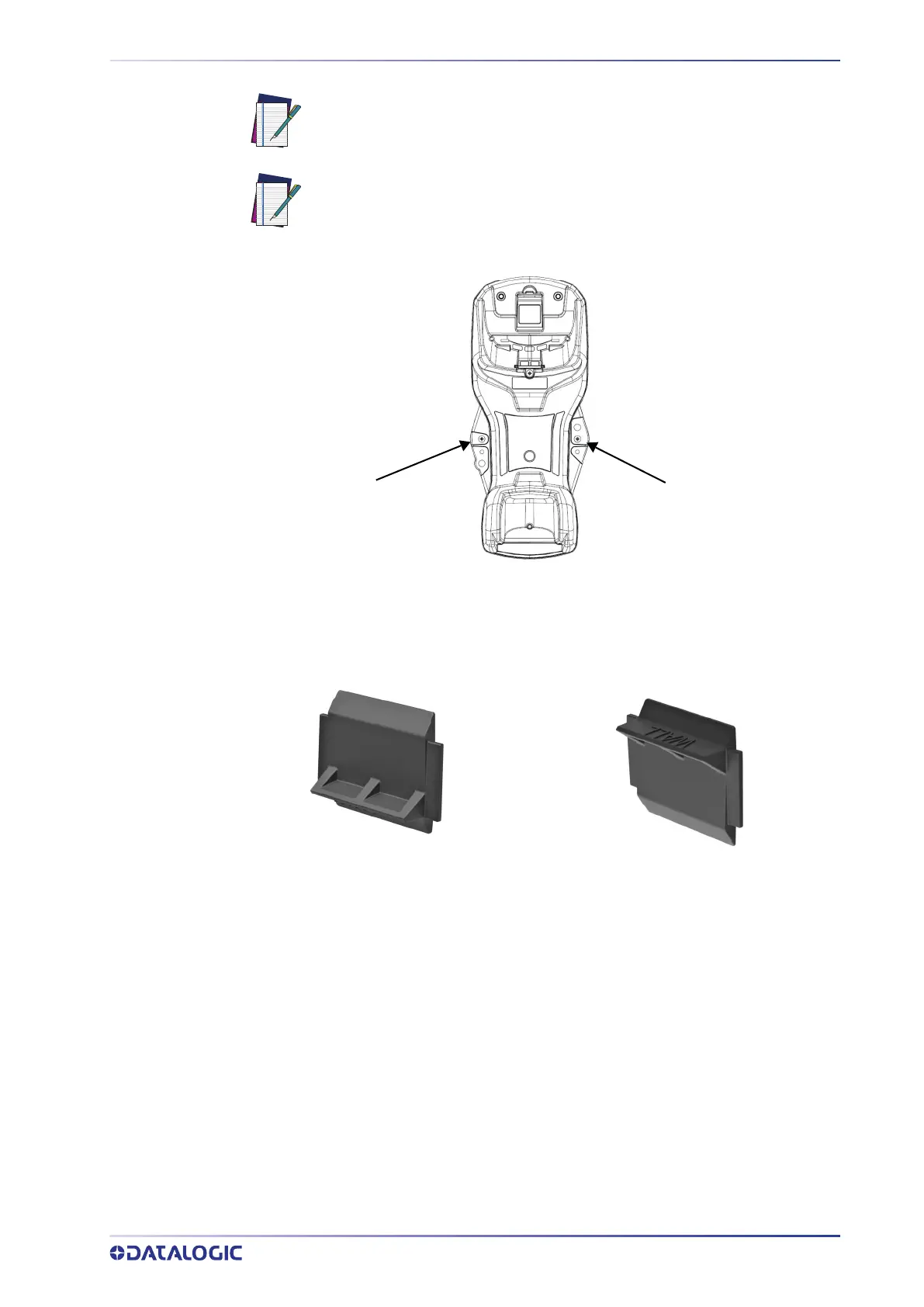

Screw Position
Screw Position
Desktop Positioning Tab (Horizontal) Wall Positioning Tab (Vertical)
