CONNECTING AND DISCONNECTING THE CABLES
The BC963X cradle can be connected to a host by means of a multi-interface cable,
which must be simply plugged into the Host connector, visible on the front panel of the
cradle. To disconnect the multi-interface cable and the power adapter cable (for
BC9630), refer to the following figures.
Connecting BC9630 Cables
Connect the multi-interface cable first, then connect the power adapter cable. Finally,
power on the cradle.

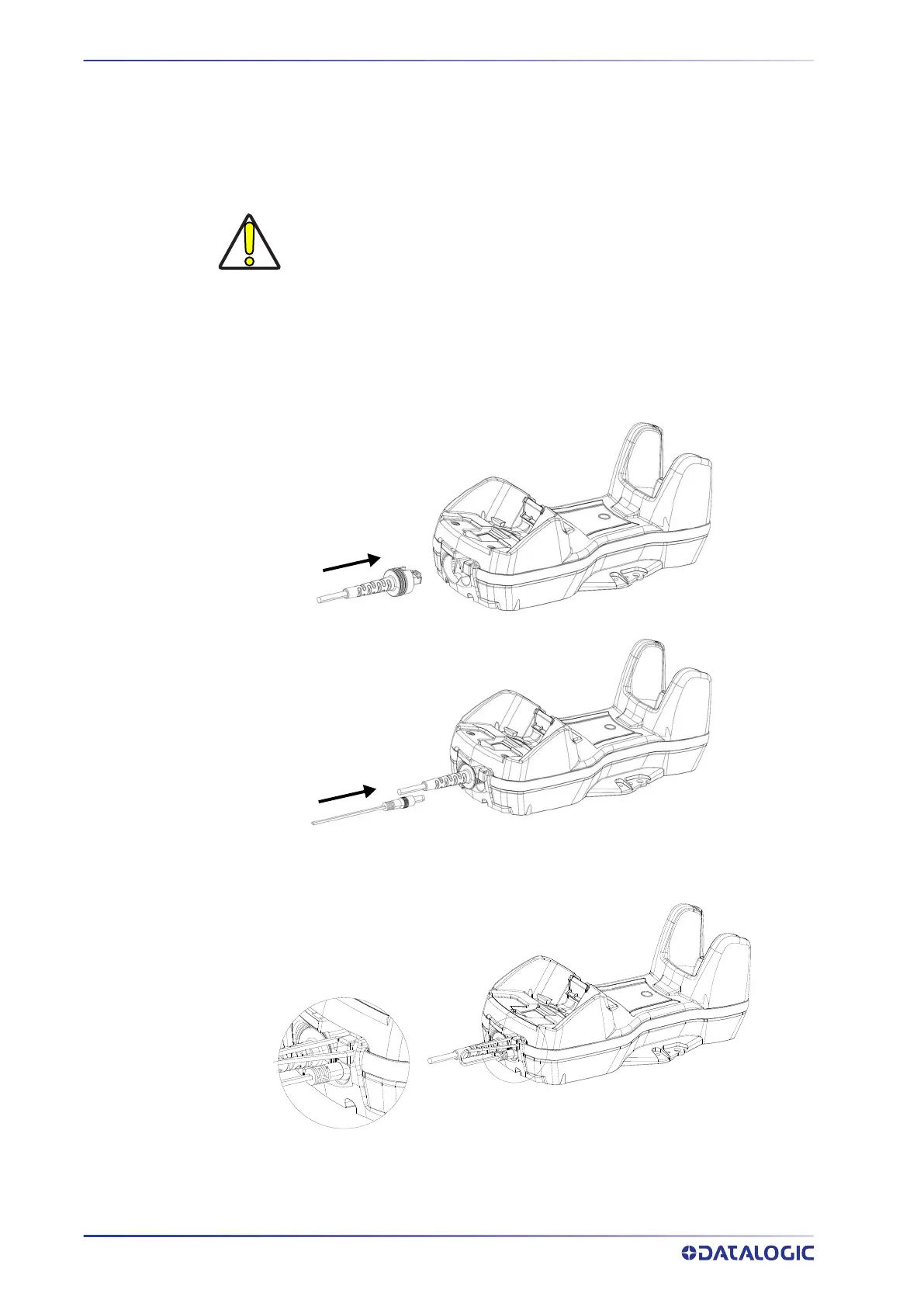

Figure 5 - Connecting BC9630 cables
After connecting the power supply cable, secure it on the strain relief as shown in the
figure below.
CAUTION: Connections should always be made with power off.
To Next Page
