Datalogic PowerScan PD9600 User Manual

TROUBLESHOOTING
PRODUCT REFERENCE GUIDE 357

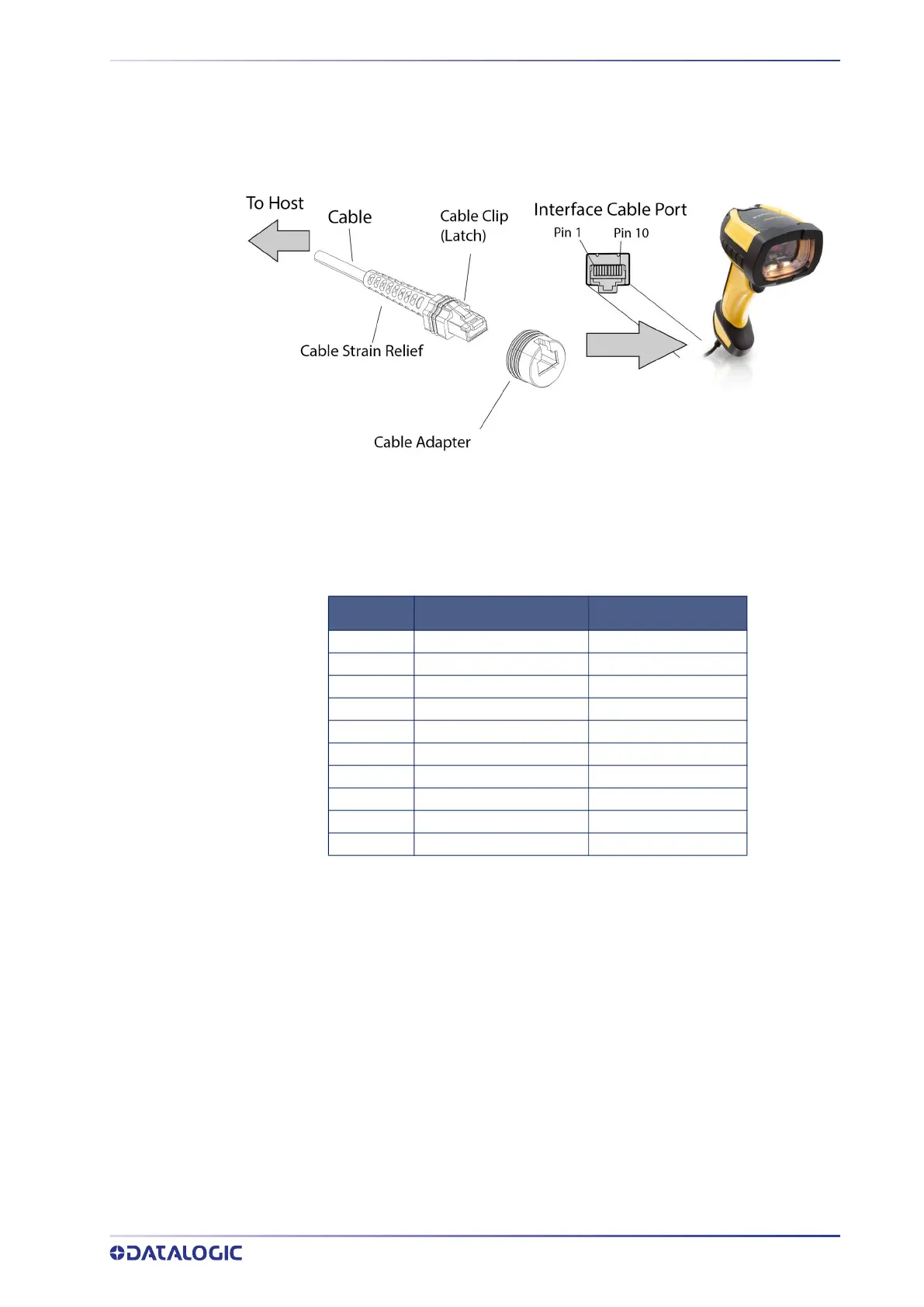

Figure 14 and Table 37 provide standard pinout information for the reader’s cable.
Figure 14 Standard Cable Pinouts
The signal descriptions in Table 37 apply to the connector on the reader and are for ref-
erence only.
Table 37 Standard Cable Pinouts — Reader Side
PIN RS232 USB
1 RTS (out)
2 D+
3 D-
4 GND GND
5 RX
6 TX
7 VCC VCC
8
9
10 CTS (in)
