CONNECTING THE BASE STATION
PRODUCT REFERENCE GUIDE
33
For
the
pinout and
the
list
of c
ompatible
cables
re
f
er
to
the in
fo
rmation
about CM96
80/
CM9681 at
page
10
.

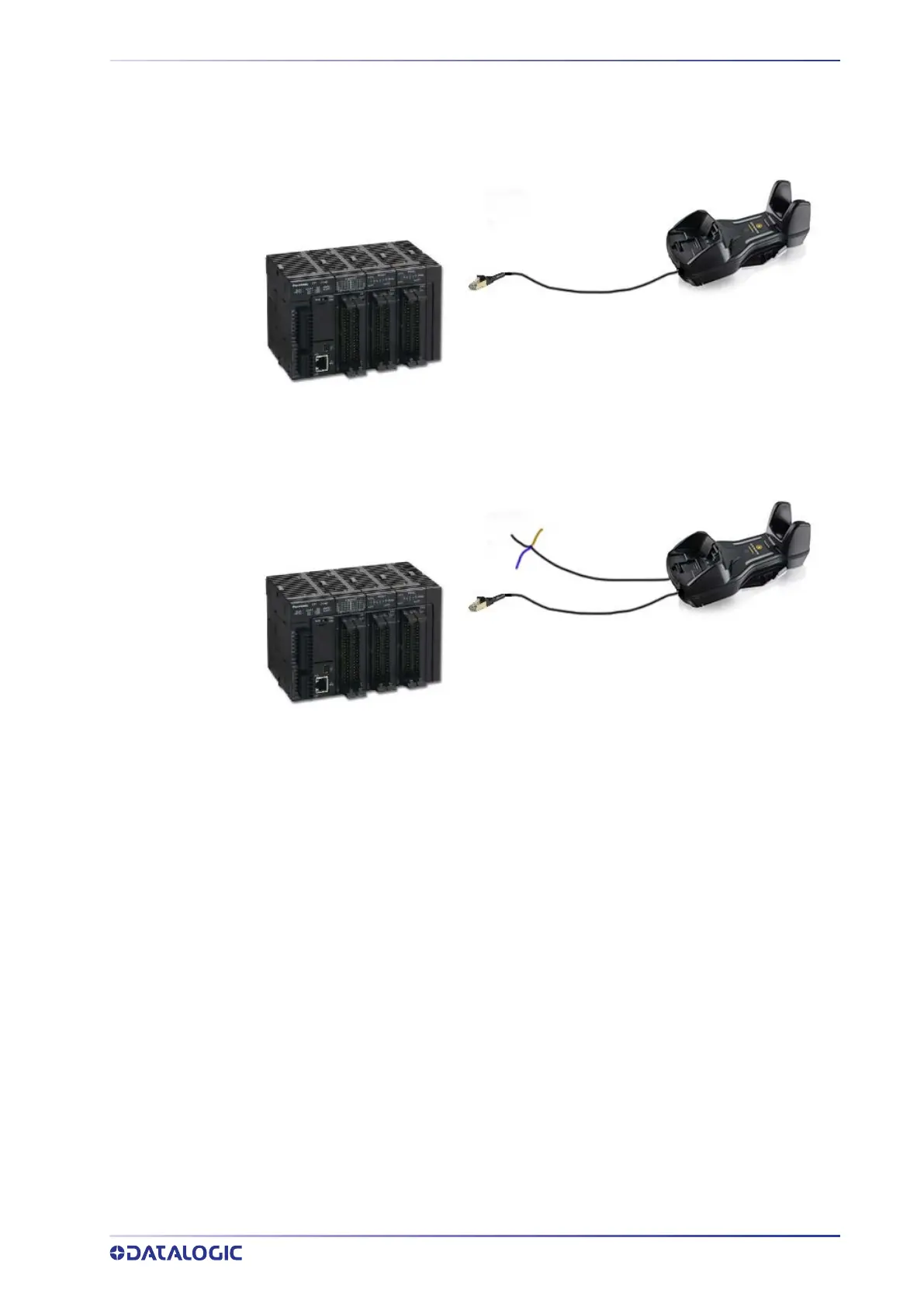

ETHERNET
BC9681 with POE connection
ETHERNET
BC9681 with external pow
er supply
Bro
wn: +10/30 VDC
Blue: GND
Black: Not used
48
50
Table of Contents
default chapter
3
Table of Contents
3
About this Manual
14
Overview
14
Preface
14
Manual Conventions
15
Ergonomic Recommendations
16
Reseller Technical Support
16
Support through the Website
16
Technical Support
16
Chapter 1. Introduction
17
About the Reader
17
General Features
18
PM9600 4-Key and 16-Key Models
19
Battery Safety (Only for PM/PBT9600)
21
Programming the Reader
22
Configuration Methods
22
Programming Bar Codes
22
Datalogic Aladdin
22
Chapter 2. Setup
23
Unpacking
23
Setting up the Powerscan™ PD9600 Reader
23
Connecting the Host Interface
23
Connecting the Cable
23
RS-232 Serial Connection
24
USB Connection
25
CM9681 Power over Ethernet (Poe) Connection
26
CM9681 External Power Connection
27
CM9680-81 Compatible Cables
27
Using the Powerscan™ PD9600
27
Setting up the Powerscan™ PM/PBT9600 Reader
28
Using the Powerscan™ PM/PBT9600
28
Charging the Batteries
29
Replacing the Batteries
30
Linking the Reader
30
Link Datalogic Devices to Base
30
Link Reader as Serial Device to a Bluetooth Host
31
Link Reader as HID Device to a Bluetooth Host
31
Bluetooth Passkey or Pin Code Entry Request
32
Power off
32
Set Date and Time (Optional)
32
Using the BC9600 Base Station
33
Base Station Models
34
Connection Module Models
34
Mounting Instructions
34
Permanent Mounting
34
Wall Mounting
35
Changing the Orientation of the Positioning Tab
35
Portable Desktop Mounting
37
Base Station Fast Release - Mounting the Plate
37
Connection Module Fast Release - Mounting the Bracket
39
System Connections
41
Connecting and Disconnecting the Cables
42
Connecting BC9630 Cables
42
Disconnecting BC9630 Cables
43
Connecting BC9631 Multi-Interface Cable
44
Connecting BC9680 Cables
45
Connecting BC9681 Cables
45
Connecting the Base Station
47
System and Network Layouts
50
Stand Alone Layouts
50
BC9600 Configuration
51
Serial Configuration
51
Configuration Bar Codes
51
Interface Selection
51
Configuring the Interface
52
Customizing Configuration Settings
55
Using the Programming Bar Codes
55
Datalogic Aladdin™ Utility
55
Interface Settings
55
Configuring Other Features
56
Software Version Transmission
56
Resetting the Product Configuration to Defaults
56
Restore Custom Default Configuration
56
Chapter 3. Configuration with Bar Codes
57
Configuration Parameters
57
Interface Configuration
57
Parameters Common to All Interface Applications
57
Symbology-Specific Parameters
58
Global Interface Features
59
Host Commands - Obey/Ignore
59
USB Suspend Mode
59
Rs-232 Interface
60
Rs-232 Standard Settings
61
Baud Rate
61
Data Bits
62
Stop Bits
62
Parity
63
Handshaking Control
64
Rs-232/Usb-Com Interfaces
65
Rs-232/Usb-Com Settings
66
Intercharacter Delay
66
Beep on ASCII BEL
67
Beep on Not on File
67
ACK NAK Options
68
ACK Character
69
NAK Character
69
ACK NAK Timeout Value
70
ACK NAK Retry Count
70
ACK NAK Error Handling
71
Indicate Transmission Failure
71
Disable Character
72
Enable Character
72
Keyboard Interface
73
Country Mode
74
Setup on PC to Use ALT Universal
74
Setting Country Mode
75
Other Keyboard Parameters
89
Encoding Type
89
ALT Output Type
96
Keyboard Numeric Keypad
97
Keyboard Send Control Characters
97
Intercode Delay
98
USB Keyboard Speed
99
Usb-Oem Interface
100
USB-OEM Device Usage
101
Ethernet Interface
102
Dhcp
103
Static IP Address
103
Subnet Mask
104
Gateway Address
104
DNS1 Address
105
DNS2 Address
105
Device Name
106
Data Socket Port
106
Aladdin Socket Port
107
Image Socket Port
107
LOGGER Socket Port
108
DATA Flow Control Selection
108
DATA Prefix Counter Selection
109
AIDA LED Mode
109
Scanner Character Terminator
110
Controller Input Data Buffer Size
111
Controller Output Data Buffer Size
112
Data Format
113
Global Settings
114
Global Prefix/Suffix
114
Case Conversion
115
Character Conversion
115
Global AIM ID
116
Gs1-128 Aim ID
116
Label ID
117
Label ID: Pre-Loaded Sets
117
Label ID: Set Individually Per Symbology
118
Label ID Control
118
Label ID Symbology Selection
119
Reading Parameters
124
Scanning Features
125
Scan Mode
125
Scanning Active Time
126
Flash on Time
126
Flash off Time
127
Double Read Timeout
127
Stand Detection Behavior (Desk Only)
129
Stand Mode/Object Detection Indication (Stand Mode Flash)
130
Stand Mode/Object Detection Sensitivity
130
Stand Mode/Object Detection Illumination off Time
131
Illumination Intensity
131
Corded Stand Mode
132
Dock Detection Beep
132
Led and Beeper Indicators
133
Power on Alert
133
Good Read Beep Type
133
Good Read Beep Frequency
134
Good Read Beep Length
135
Good Read Beeper Volume / Vibration
136
Vibration Feedback for Good Read
136
RGB Good Read Enable
137
RGB Good Read Color
137
Good Read LED Duration
138
Good Read: When to Indicate
139
Green Spot Duration
139
Camera Control
140
Aiming Pointer
140
Pick Mode
140
Illumination Power Level (Only for STD, HP, DC Models)
141
Mobile Phone Mode
141
Image Capture
142
Multiple Labels Ordering by Code Symbology
142
Multiple Labels Ordering by Code Length
142
Motion Features
143
Motionless Timeout
144
Motion Sensitivity
144
Motion Aiming Control
145
1D Symbologies
146
Disable All Symbologies
147
Global Feature
147
1D Normal/Inverse Symbol Control
148
Coupon Control
149
Upc-A
150
UPC-A Enable/Disable
150
UPC-A Check Character Transmission
150
Expand UPC-A to EAN-13
151
UPC-A Number System Character Transmission
151
Upc-E
152
UPC-E Enable/Disable
152
UPC-E Check Character Transmission
152
Expand UPC-E to EAN-13
153
Expand UPC-E to UPC-A
153
UPC-E Number System Character Transmission
154
GTIN Formatting
154
139
155
EAN-13 Enable/Disable
155
EAN-13 Check Character Transmission
155
EAN-13 Flag 1 Character
156
EAN-13 to ISBN Conversion
156
EAN-13 to ISSN Conversion
157
142
158
EAN-8 Enable/Disable
158
EAN-8 Check Character Transmission
158
Expand EAN-8 to EAN-13
159
Upc/Ean Global Settings
160
UPC/EAN Price Weight Check
160
UPC/EAN Quiet Zones
161
Add-Ons
161
Optional Add-Ons
162
Optional Add-On Timer
163
Gs1 Databar™ Omnidirectional
164
GS1 Databar Omnidirectional Enable/Disable
164
GS1 Databar Omnidirectional to GS1-128 Emulation
164
Gs1 Databar™ Expanded
165
GS1 Databar Expanded Enable/Disable
165
GS1 Databar Expanded to GS1-128 Emulation
165
GS1 Databar Expanded Length Control
166
GS1 Databar Expanded Set Length 1
166
GS1 Databar Expanded Set Length 2
167
Gs1 Databar™ Limited
168
GS1 Databar Limited Enable/Disable
168
GS1 Databar Limited to GS1-128 Emulation
168
Code 39
169
Code 39 Enable/Disable
169
Code 39 Check Character Calculation
169
Code 39 Check Character Transmission
170
Code 39 Start/Stop Character Transmission
170
Code 39 Full ASCII
171
Code 39 Quiet Zones
171
Code 39 Length Control
172
Code 39 Set Length 1
172
Code 39 Set Length 2
173
Trioptic Code
174
Trioptic Code Enable/Disable
174
Code 39 Danish Ppt
174
Code 39 Danish PPT Enable/Disable
174
Code 39 Pzn
175
Code 39 PZN Enable/Disable
175
Code 39 la Poste
175
Code 39 la Poste Enable/Disable
175
Code 32 (Italian Pharmaceutical)
176
Code 32 Enable/Disable
176
Code 32 Feature Setting Exceptions
176
Code 32 Check Character Transmission
176
Code 32 Start/Stop Character Transmission
177
Code 39 Cip Hr (French Pharmaceutical)
177
Code 39 CIP HR Enable/Disable
177
Code 128
178
Code 128 Enable/Disable
178
Expand Code 128 to Code 39
178
Code 128 Check Character Transmission
179
Code 128 Function Character Transmission
179
Code 128 Quiet Zones
180
Code 128 Length Control
180
Code 128 Set Length 1
181
Code 128 Set Length 2
181
Gs1-128
182
GS1-128 Enable
182
Interleaved 2 of 5 (I 2 of 5)
183
I 2 of 5 Enable/Disable
183
I 2 of 5 Check Character Calculation
183
I 2 of 5 Check Character Transmission
184
I 2 of 5 Length Control
185
I 2 of 5 Set Length 1
185
I 2 of 5 Set Length 2
186
Interleaved 2 of 5, Febraban
187
Interleaved 2 of 5, Febraban Format Enable / Disable
187
Interleaved 2 of 5 Cip Hr
187
Interleaved 2 of 5 CIP HR Enable/Disable
187
Matrix 2 of 5
188
Matrix 2 of 5 Enable/Disable
188
Matrix 2 of 5 Check Character Calculation
188
Matrix 2 of 5 Check Character Transmission
189
Matrix 2 of 5 Length Control
189
Matrix 2 of 5 Set Length 1
190
Matrix 2 of 5 Set Length 2
190
Standard 2 of 5
191
Standard 2 of 5 Enable/Disable
191
Standard 2 of 5 Check Character Calculation
191
Standard 2 of 5 Check Character Transmission
192
Standard 2 of 5 Length Control
192
Standard 2 of 5 Set Length 1
193
Standard 2 of 5 Set Length 2
193
Compressed 2 of 5
194
Compressed 2 of 5 Enable/Disable
194
Compressed 2 of 5 Check Character Calculation
194
Compressed 2 of 5 Check Character Transmission
195
Compressed 2 of 5 Length Control
195
Compressed 2 of 5 Set Length 1
196
Compressed 2 of 5 Set Length 2
196
Datalogic 2 of 5
197
Datalogic 2 of 5 Enable/Disable
197
Datalogic 2 of 5 Check Character Calculation
197
Datalogic 2 of 5 Check Character Transmission
198
Datalogic 2 of 5 Length Control
198
Datalogic 2 of 5 Set Length 1
199
Datalogic 2 of 5 Set Length 2
199
Industrial 2 of 5
200
Industrial 2 of 5 Enable/Disable
200
Industrial 2 of 5 Check Character Calculation
200
Industrial 2 of 5 Check Character Transmission
201
Industrial 2 of 5 Length Control
201
Industrial 2 of 5 Set Length 1
202
Industrial 2 of 5 Set Length 2
202
Iata
203
IATA Enable/Disable
203
IATA Check Character Transmission
203
Follett 2 of 5
204
Follett 2 of 5 Enable/Disable
204
Codabar
205
Codabar Enable/Disable
205
Codabar Check Character Calculation
205
Codabar Check Character Transmission
206
Codabar Start/Stop Character Transmission
206
Codabar Start/Stop Character Set
207
Codabar Start/Stop Character Match
207
Codabar Quiet Zones
208
Codabar Length Control
209
Codabar Set Length 1
209
Codabar Set Length 2
210
Abc Codabar
211
ABC Codabar Enable/Disable
211
ABC Codabar Concatenation Mode
211
ABC Codabar Dynamic Concatenation Timeout
212
ABC Codabar Force Concatenation
212
Isbt 128
213
ISBT 128 Concatenation
213
ISBT 128 Concatenation Mode
213
ISBT 128 Dynamic Concatenation Timeout
214
ISBT 128 Force Concatenation
215
ISBT 128 Advanced Concatenation Options
215
Code 11
216
Code 11 Enable/Disable
216
Code 11 Check Character Calculation
216
Code 11 Check Character Transmission
217
Code 11 Length Control
217
Code 11 Set Length 1
218
Code 11 Set Length 2
218
Code 93
219
Code 93 Enable/Disable
219
Code 93 Check Character Calculation
219
Code 93 Check Character Transmission
220
Code 93 Length Control
220
Code 93 Set Length 1
221
Code 93 Set Length 2
221
Code 93 Quiet Zones
222
Msi
223
MSI Enable/Disable
223
MSI Check Character Calculation
223
MSI Check Character Transmission
224
MSI Length Control
224
MSI Set Length 1
225
MSI Set Length 2
225
Plessey
226
Plessey Enable/Disable
226
Plessey Check Character Calculation
226
Plessey Check Character Transmission
227
Plessey Length Control
227
Plessey Set Length 1
228
Plessey Set Length 2
228
Bc412
229
BC412 Enable/Disable
229
BC412 Check Character Calculation
229
BC412 Length Control
229
BC412 Set Length 1
230
BC412 Set Length 2
230
Symbologies
231
2D Global Features
232
2D Maximum Decoding Time
233
2D Structured Append
234
2D Normal/Inverse Symbol Control
234
Decoding Normal/Mirrored Labels
235
Aztec Code
236
Aztec Code Enable / Disable
236
Aztec Code Length Control
236
Aztec Code Set Length 1
237
Aztec Code Set Length 2
237
China Sensible Code
238
China Sensible Code Enable / Disable
238
China Sensible Code Length Control
238
China Sensible Code Set Length 1
239
China Sensible Code Set Length 2
239
Data Matrix
240
Data Matrix Enable / Disable
240
Data Matrix Square/Rectangular Style
240
Data Matrix Length Control
241
Data Matrix Set Length 1
241
Data Matrix Set Length 2
242
Gs1 Dotcode
243
Dotcode Enable
243
Dotcode High Resolution Enable
243
Dotcode Position-Based Decoding
244
Additional Options
244
Maxicode
245
Maxicode Enable / Disable
245
Maxicode Primary Message Transmission
245
Maxicode Length Control
246
Maxicode Set Length 1
246
Maxicode Set Length 2
247
Pdf417
248
PDF417 Enable / Disable
248
PDF417 Length Control
248
PDF417 Set Length 1
249
PDF417 Set Length 2
249
Micro Pdf417
250
Micro PDF417 Enable / Disable
250
Micro PDF417 Code 128 GS1-128 Emulation
250
Micro PDF417 Length Control
251
Micro PDF417 Set Length 1
251
Micro PDF417 Set Length 2
252
Qr Code
253
QR Code Enable / Disable
253
QR Code Length Control
253
QR Code Set Length 1
254
QR Code Set Length 2
254
Micro Qr Code
255
Micro QR Code Enable / Disable
255
Micro QR Code Length Control
255
Micro QR Code Set Length 1
256
Micro QR Code Set Length 2
256
Ucc Composite
257
UCC Optional Composite Timer
257
Postal Code Selection
258
Postnet BB Control
259
Digimarc
260
Set Digimarc Scale Parameter
260
Ocr Decoding
261
OCR Decoding Predefined Templates
262
Display and Keyboard Features
263
Display and Keyboard Features
264
Display Operating Mode
264
Display off Timeout
264
Backlight Enable
265
Font Size
265
Show no Printable Characters
266
Set the Display Append State for Host Message
266
Enable/Disable Buttons
267
Key Programming
268
Arrow Keys Mode (4-Key Models Only)
269
Arrow up String (4-Key Models Only)
269
Arrow down String (4-Key Models Only)
270
Legend for Arrow up (4-Key Models Only)
270
Legend for Arrow down (4-Key Models Only)
271
Custom String for Display Legend
271
Configure Actions for Function Keys
272
Action Configuration for Function Keys
273
Function Keys Configuration for 16-Key Models Only
274
Function Keys Configuration for 4-Key Models Only
275
Define Strings
276
Configure String 1-5
276
Function Keys for Batch Context
277
Set Action for F1 in Batch Context
278
Set Action for F2 in Batch Context
278
Set Action for F3 (Arrow up in 4K Model) in Batch Context
279
Set Action for F4 (Arrow down in 4K Model) in Batch Context
279
Set Action for Shift (16K Model) in Batch Context
279
Additional Features for 16-Key Models
280
Last Code Shown Timeout
280
Display Time Stamping Mode
280
Mode Selection
281
Quantity Field
281
Quantity/Code Send Mode
282
Quantity/Code Separator
282
Interkey Timeout
283
Append Code
284
Echo
285
Keypress Sound
285
Lower Case
286
Enable Legend
286
Set Function Key Labels
287
Barcode/Key Different Data Format
288
Set Barcode Header
288
Set Barcode Terminator
288
Set Key Sequence ID
289
Set Key Sequence Header
289
Set Key Sequence Terminator
289
Set String ID
290
Set String Header
290
Set String Terminator
291
Power Management
292
Power Save
293
Powerdown Timeout
293
Battery Profiles
294
Battery Information
295
Wireless Features
296
Wireless Beeper Features
298
Good Transmission Beep
298
Beep Frequency
298
Beep Duration
299
Beep Volume
300
Disconnect Beep
300
Docking (Connecting) Beep
301
Leash Alarm
301
Base Button Enable
302
Battery Level Indication with Double TAP
303
Configuration Updates
304
Automatic Configuration Update
304
Copy Configuration to Reader
304
Copy Configuration to Base Station
304
Batch Features
305
Batch Mode
305
Send Batch
305
Erase Batch Memory
306
Send but Do Not Erase Batch Memory
306
RF Batch Mode Transmit Delay
306
Direct Radio Autolink
307
Rf Address Stamping
308
Source Radio Address Transmission
308
Source Radio Address Delimiter Character
308
Extended Statistics
309
Hand Held Statistic Frequency
309
Real Time Clock (Rtc) Configuration
310
Time Tx Format
310
Date Transmission Format
310
Date-Time Separator
311
Date-Time Transmission Order
312
Bluetooth-Only Features
313
Bluetooth Security Level
313
Bluetooth Radio Output Power
314
Wi-Fi Channels Exclusion
315
Bluetooth Discoverable Mode Timeout
320
Bluetooth Friendly Name
321
Bluetooth Hid Features
322
Bluetooth HID Alt Mode
322
Features for Star Models Only
323
STAR Radio Protocol Timeout
323
STAR Radio Transmit Mode
323
Digit Address Stamping
325
Assign Unique Address to the Gun
325
Digit Cradle Address Stamping
326
Cradle Address Stamping
326
Cradle Address Delimiter
327
STAR System Speed
327
STAR Frequency Agility
328
Chapter 4. References
330
Rs-232 Parameters
331
Rs-232 Only
331
Baud Rate
331
Data Bits
331
Stop Bits
331
Parity
331
Handshaking Control
331
RS-232/USB COM Parameters
332
Intercharacter Delay
332
ACK NAK Options
333
ACK Character
333
NAK Character
334
ACK NAK Timeout Value
335
ACK NAK Retry Count
336
Disable Character
337
Enable Character
338
Keyboard Interface
339
Intercode Delay
339
Data Format
340
Data Editing
340
Please Keep in Mind
340
Global Prefix/Suffix
341
Example: Setting a Prefix
341
Global AIM ID
342
Label ID
343
Label ID: Pre-Loaded Sets
343
Label ID: Set Individually Per Symbology
345
Character Conversion
347
Scanning Features
348
Scan Mode
348
Scanning Active Time
350
Aiming Duration Time
351
Flash on Time
352
Flash off Time
353
LED and Beeper Indicators
354
Good Read LED Duration
354
RF Features
355
Automatic Configuration Update
355
RF Address Stamping
355
Source Radio Address Delimiter Character
355
STAR Radio Protocol Timeout
356
Symbologies
357
Set Length
357
Set Length 1
357
Set Length 2
358
Chapter 5. Message Formatting
359
Message Formatting
359
Cursor Control
360
Font Selection
360
Clearing Display
361
LED and Beeper Control
361
Setting RTC
361
Appendix A. Technical Specifications
362
PD9600 Technical Specifications
362
PM/PBT9600 Technical Specifications
364
Decoding Capabilities
366
BC9600 Technical Specifications
367
LED and Beeper Indications
368
User Indications for PD9600
368
User Indications for PBT/PM9600 (Gun Only)
369
User Indications for BC9600 Base Stations
371
Programming Mode
372
Troubleshooting
372
Appendix Bmaintenance
374
Cleaning Procedure
374
Cleaning Plastic Surfaces
374
Common Cleaning Solutions
374
Cleaning Enclosure and Window Surface
375
Appendix Cstandard D Efaults
376
Default Exceptions
392
Appendix D. Aida Led
394
CM9681-N100 with Enabled AIDA LED Mode
394
BF/NS LED (Bus Failure)
394
SF/MS LED (System Failure)
394
Link/Activity
394
CM9681-N100 with Disabled AIDA LED Mode
395
BF/NS LED (Network Status)
395
SF/MS LED (Module Status)
395
Link/Activity
395
Cm9681-N200
395
P1 and P2 Leds (Link/Activity)
396
Appendix E. Host Commands Characters
397
Appendix F. Sample Barcodes
398
Sample Barcodes
398
1D Barcodes
398
GS1 Databar™ (RSS)
400
GS1 Databar™ (-14)
400
2D Barcodes
401
Appendix Gkeypad
403
Appendix H. Scancode Tables
405
Control Character Emulation
405
Single Press and Release Keys
405
Interface Type USB-Keyboard or USB-Keyboard for APPLE
407
Interface Type USB-Keyboard Alt Mode
409
Appendix I. Ascii Chart
410
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Datalogic PowerScan PD9600 and is the answer not in the manual?
Ask a question
Datalogic PowerScan PD9600 Specifications
General
Brand
Datalogic
Model
PowerScan PD9600
Category
Barcode Reader
Language
English
Related product manuals
Datalogic PowerScan PD9630-SR
360 pages
Datalogic PowerScan PD9630-HP
360 pages
Datalogic PowerScan PD96 Series
360 pages
Datalogic PowerScan PD9530
362 pages
Datalogic PowerScan PD9130
362 pages
Datalogic PowerScan PD953X
360 pages
Datalogic PowerScan PD9531-AR
362 pages
Datalogic PowerScan PD8300
3 pages
Datalogic Powerscan PD7100
392 pages
Datalogic PowerScan PD8530
160 pages
Datalogic PowerScan RF
88 pages
Datalogic PowerScan Series
411 pages
Need help?
General
To Next Page
