Datalogic QuickScan QBT2400 Quick Reference Guide

Connecting the Base Station
Quick Reference Guide 5
4. Connect to an AC Adapter, and plug the AC power cord
into the (wall) outlet.

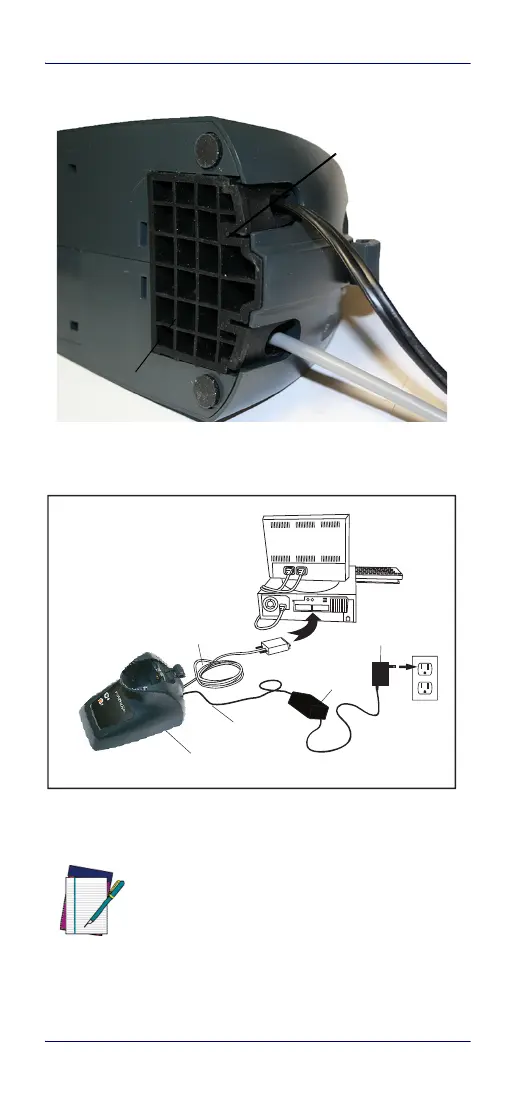

Figure 3. Connecting the Base Station
Host Connection —
Verify before connection that the reader’s
cable type is compatible with your host equipment.
Most connections plug directly into the host device as shown
in Figure 4. Keyboard Wedge interface cables have a ‘Y’ con-
NOTE
The QuickScan QBT2400 reader can be set up to
require a PIN code when connecting to the host.
If you are adding new equipment to a system
that uses a custom security PIN, please see the
PRG for information before proceeding.
Cable Stopper
reinserted
Base
Station
I/F Cable
AC/DC
Adapter
DC Power
Cord
Wall plug
Connector

Datalogic QuickScan QBT2400 Specifications

General

Connectivity	Bluetooth
Battery Type	Lithium-Ion
Battery Capacity	1400 mAh
IP Rating	IP42
Print Contrast Ratio (Minimum)	25%
Interfaces Supported	USB, RS-232, Keyboard Wedge
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-40 to 70 °C / -40 to 158 °F
Drop Resistance	Withstands drops from 1.5 m / 5.0 ft
Radio Range (Open Air)	100 m
Type	Handheld
Scan Rate	60 frames per second
Resolution	0.1 mm
Humidity	5 to 95% non-condensing
Light Source	Red LED
Supported Barcodes	1D / 2D and postal codes
