Connecting the Base Station
4QuickScan™ QBT2400
Connecting the Base Station
Figure 3 on page 5 shows how to connect the Base Station to
a terminal, PC or other host device. Turn off the host before
connection and consult the manual for that equipment (if
necessary) before proceeding. Connect the interface cable
before applying power to the Base Station.

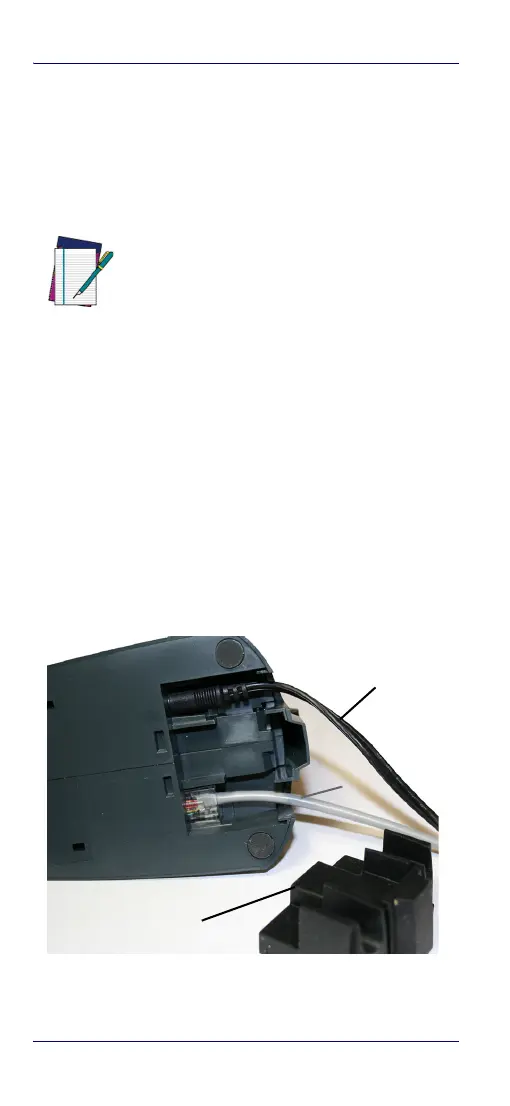

Base Station Connection and Routing
1. Remove the rubber Cable Stopper from the bottom of
the Base Station.
2. Securely plug the Power Cable and Interface (I/F) Cable
connectors into their respective ports in the underside
of the Base Station.
3. After the cables are plugged in, reinsert the Cable Stop-
per.
NOTE
The QBT2400 reader can also be Powered by the
Terminal. When powered by the Terminal, the
battery charger is automatically set as Slow
charge.
For some specific interfaces or hosts or lengths
of cable, the use of an external power supply
may be recommended for full recharging capa-
bility (see
"Technical Specifications" on
page 31
for more details).
Cable Stopper
Power Cable
I/F Cable

Datalogic QuickScan QBT2400 Specifications

General

Connectivity	Bluetooth
Battery Type	Lithium-Ion
Battery Capacity	1400 mAh
IP Rating	IP42
Print Contrast Ratio (Minimum)	25%
Interfaces Supported	USB, RS-232, Keyboard Wedge
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-40 to 70 °C / -40 to 158 °F
Drop Resistance	Withstands drops from 1.5 m / 5.0 ft
Radio Range (Open Air)	100 m
Type	Handheld
Scan Rate	60 frames per second
Resolution	0.1 mm
Humidity	5 to 95% non-condensing
Light Source	Red LED
Supported Barcodes	1D / 2D and postal codes
