Using the Quickscan™ QBT2400
10 QuickScan™ QBT2400
Using the Quickscan™ QBT2400
The Quickscan™ QBT2400 normally functions by capturing and
decoding codes. The aiming system is activated on trigger pull
and indicates the center of the field of view which should be
positioned over the bar code:
Aiming System

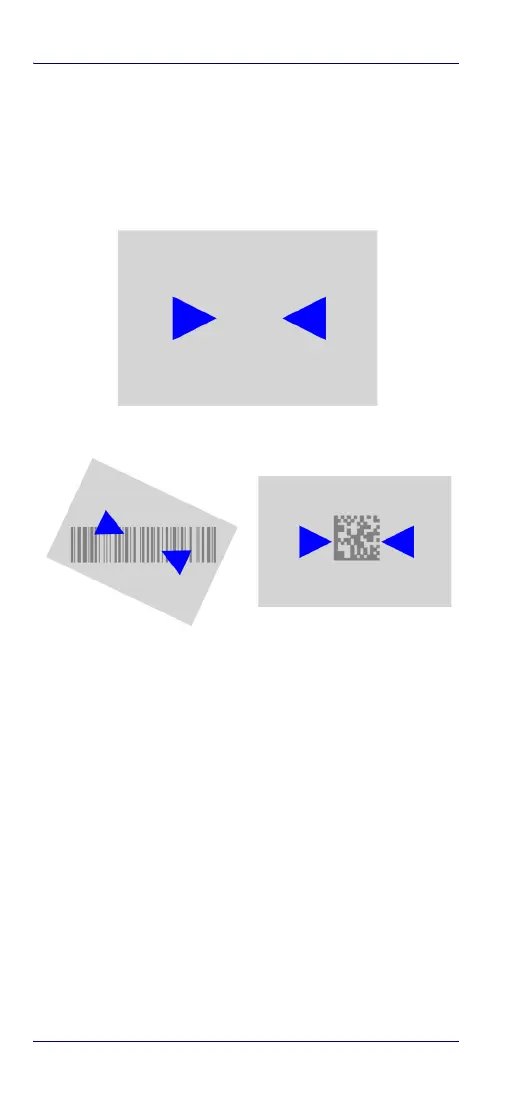

Relative Size and Location of Aiming System Pattern
A beam illuminates the label. The projected pattern of the
aiming system will be smaller when the reader is closer to the
bar code and larger when it is farther from the code. Symbolo-
gies with smaller bars or elements (mil size) should be read
closer to the unit. Symbologies with larger bars or elements
(mil size) should be read farther from the unit.
If the aiming system is centered you will get a good read. Suc-
cessful reading is signaled by an audible tone plus a good-
read green spot LED indicator.
Reference the QuickScan Q2400 Product Reference Guide
(PRG) on the Datalogic website for more information about
this feature and other programmable settings.
Linear bar code
2D Matrix symbol

Datalogic QuickScan QBT2400 Specifications

General

Connectivity	Bluetooth
Battery Type	Lithium-Ion
Battery Capacity	1400 mAh
IP Rating	IP42
Print Contrast Ratio (Minimum)	25%
Interfaces Supported	USB, RS-232, Keyboard Wedge
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-40 to 70 °C / -40 to 158 °F
Drop Resistance	Withstands drops from 1.5 m / 5.0 ft
Radio Range (Open Air)	100 m
Type	Handheld
Scan Rate	60 frames per second
Resolution	0.1 mm
Humidity	5 to 95% non-condensing
Light Source	Red LED
Supported Barcodes	1D / 2D and postal codes
