No power supply
(LEDs OFF)
Check connections and input voltage value.
If the failure continues contact
DATASENSING.

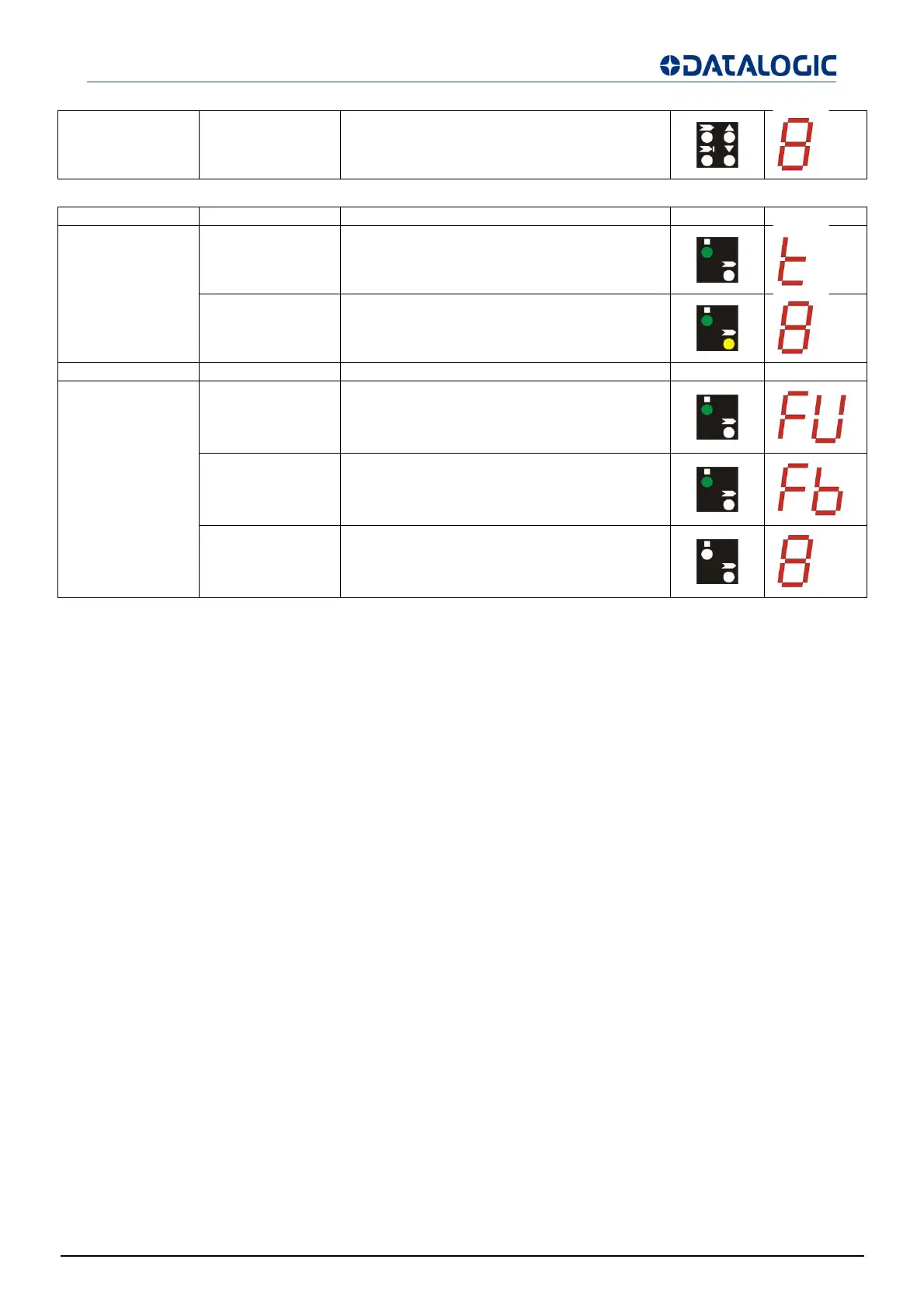

For Emitter:
Function State Meanin
g
LED DIGIT
Normal operation
TEST
(green ON)
Light curtain being tested. OSSD status on
the receiver must be OFF
Emission
(green ON yellow
ON)
Light curtain in normal operating condition
Function T
y
pe Check and repai
r
LED DIGIT
Error status
Internal error
(green ON)
Switch OFF and switch ON the power supply
circuit.
If the failure continues contact
DATASENSING.
Optical error
(green ON)
Switch OFF and switch ON the power supply
circuit.
If the failure continues contact
DATASENSING.
No power supply
(LEDs OFF)
Check connections and input voltage correct
value.
If the failure continues contact
DATASENSING.
