14

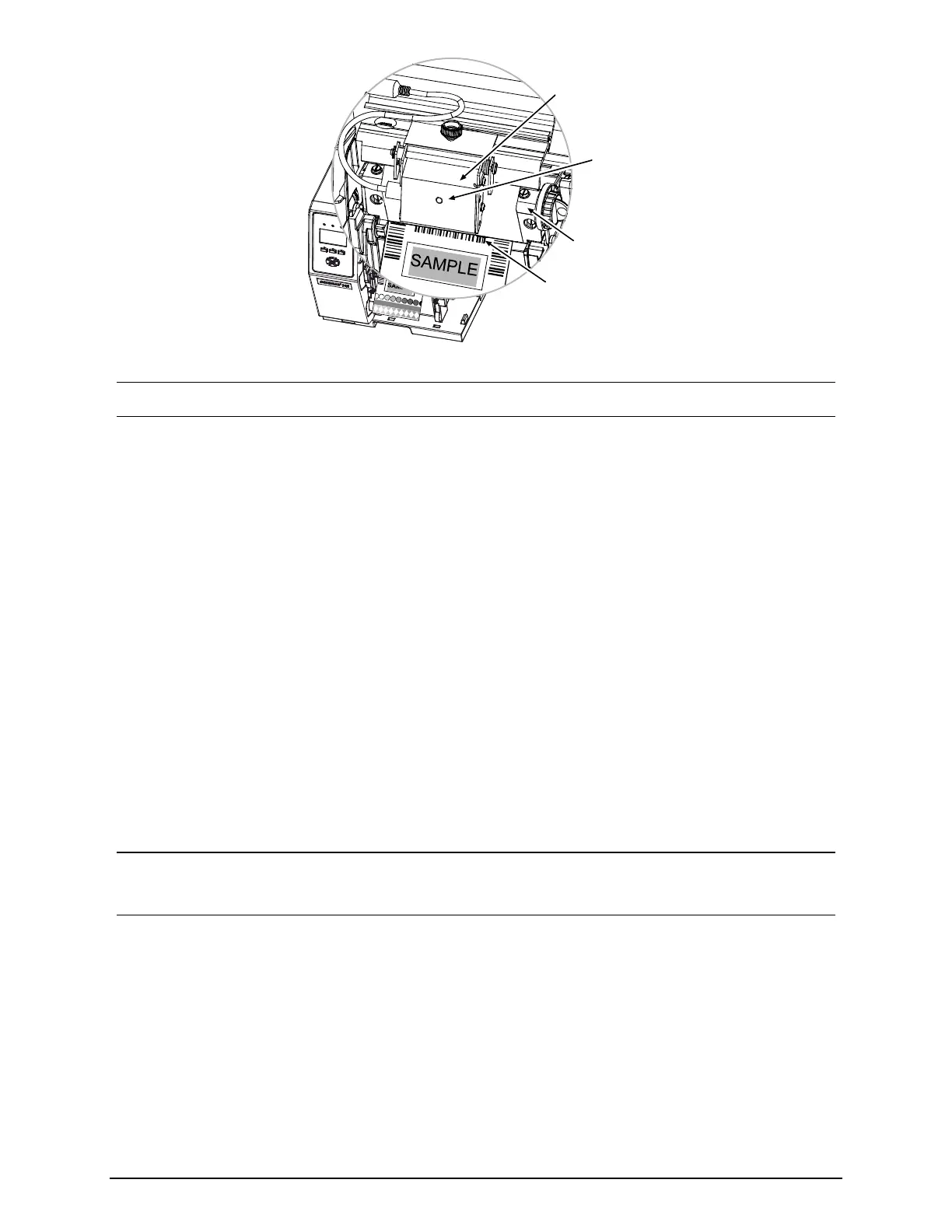

Picket Fence
Bar Code
Scanner
Printhead
Assembly
LED
Note: Ensure that the Scanner is enabled in the following steps.
5) Press MENU. Press DOWN or UP to scroll to DIAGNOSTICS and then press Enter. Scroll to
OPTIONS TESTING and press ENTER. Scroll to TEST SCANNER and press ENTER. Select
ALIGNMENT TEST and press ENTER.
6) Observe the LED (or the displayed SCAN COUNT) then proceed accordingly:
If the green LED is illuminated (or if the count increments rapidly), press EXIT to end the test (see
“Troubleshooting” if problems persist); or
If the green LED is not illuminated (or if the numbers do not increment, or increment slowly),
proceed according the Scan Position:
• 10-Mil Scan Position, go to Step 7; or,
• 5-Mil Scan Position, go to Step 9.
Note: When making adjustments, avoid contact with the Scanner Window; otherwise, see
Maintenance for cleaning details.
7) Loosen the Thumbscrew and then slide the Scanner to the rightmost position on the Mounting
Bracket.
