4

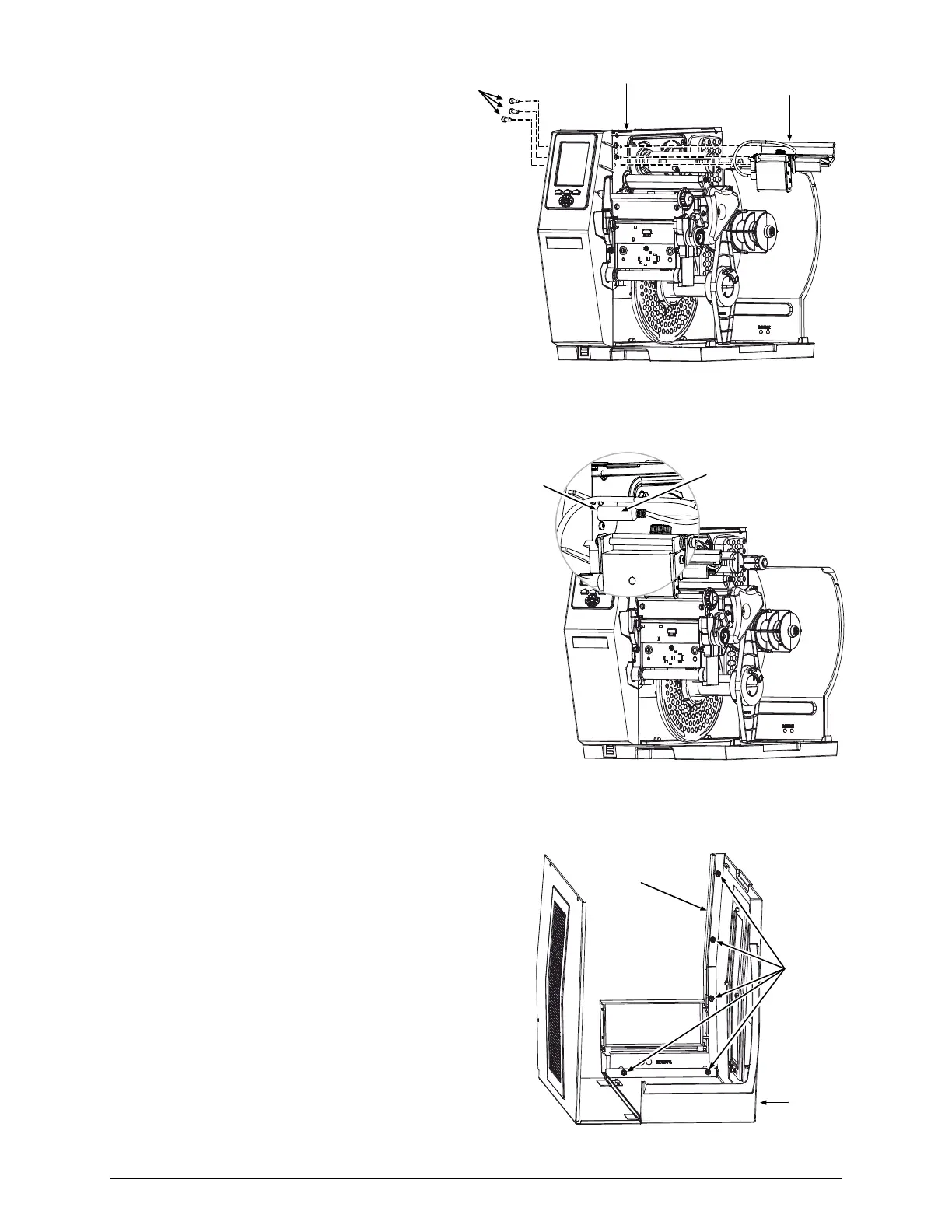

7) Secure the Scanner and Mounting
Assembly (Item 1) to the Center Plate
using three Screws (Item 2).
Screws
Scanner and
Mounting Assembly
Center Plate
8) Connect the Scanner Cable to the Center
Plate Connector.
Center Plate
Connector
Scanner
Cable
9) Remove the five Screws that secure the Fascia to the
Cover.
Screws
Cover
Fascia
