Datamax Mark II M-4206 User Manual

10 M-Class
3. Slide the Roll Media onto the Media Hub and raise the Media Hub Guide. The Media Hub Guide should be pushed
inward so that it is just touching the Roll Media.

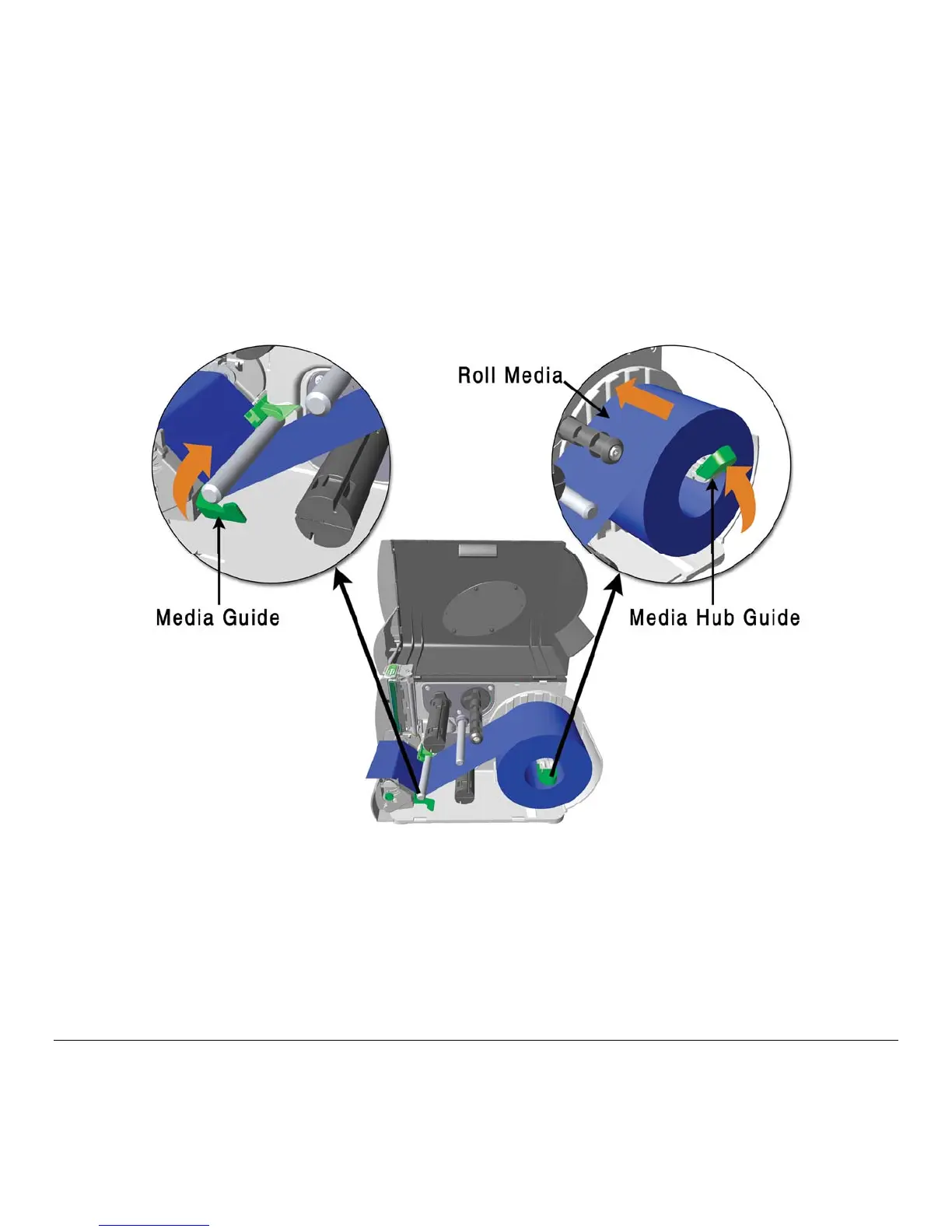

4. Route the Media through the printer as shown. Raise the Media Guide. The Media Guide should be pushed inward so
that it is just touching the edge of the Media.

Datamax Mark II M-4206 Specifications

General

Print Resolution	203 dpi
Type	Label Printer
Print Method	Thermal Transfer
Max Print Speed	6 inches per second
Memory	16 MB SDRAM, 8 MB Flash
Interfaces	USB, Serial, Parallel
Media Width	4.5 inches
Media Length	0.25" to 99"
Max Print Width	4.25 inches (108 mm)
