2. Chassis
2.1. RSS-16 Chassis
Item # 1150101
The RSS-16 Chassis mounts in standard 19” equipment cabinets.

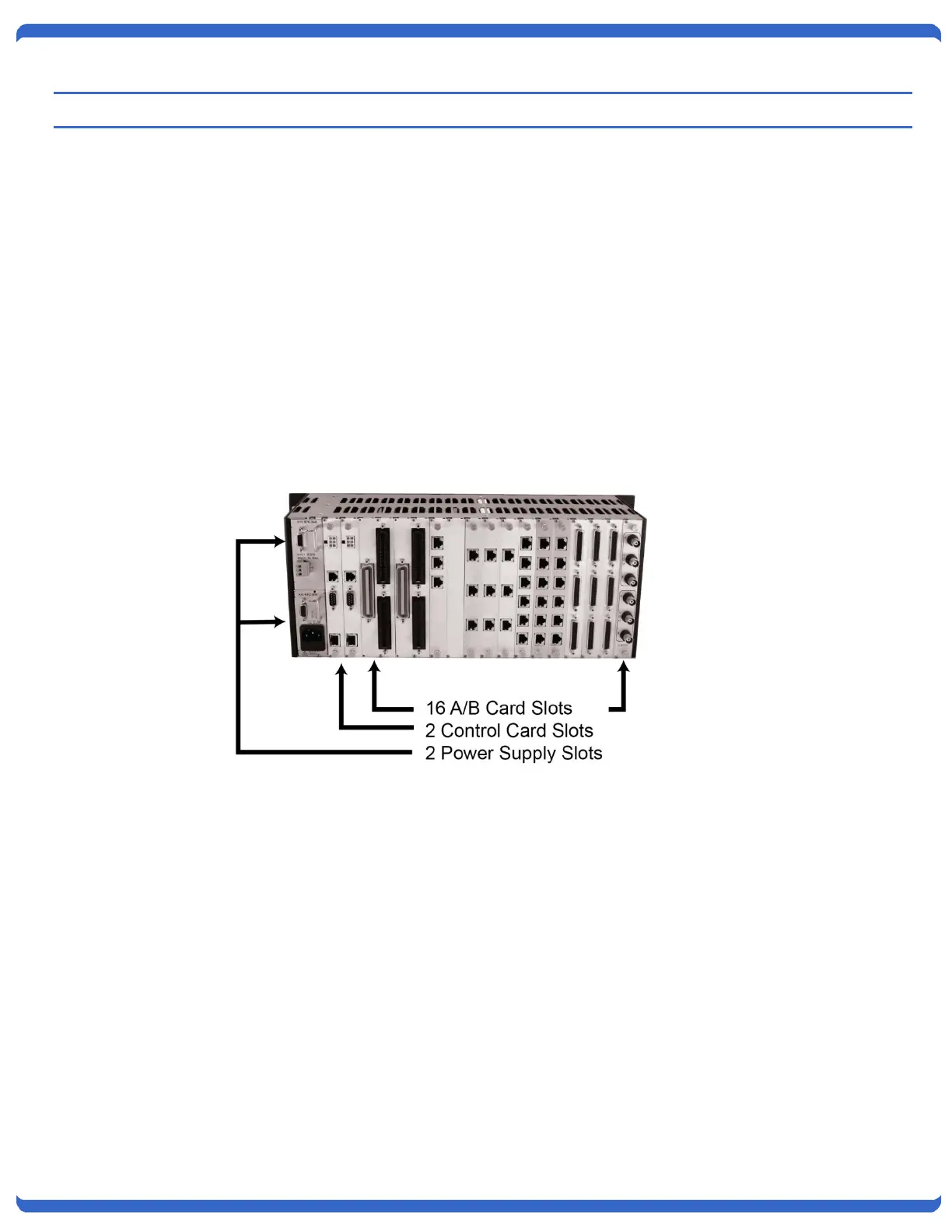

Power supplies, control cards and switch cards install from the rear of the chassis. Install each card with the
components facing left. The chassis and cards are keyed to prevent incorrect insertion. Switch cards may be
inserted and removed with the power on (hot insertion/removal). Cards are secured in chassis with screws at the
top and bottom of each panel.
19" W x 7.0" H x 7" D Weigh 12.5 Lbs (w/o cards)
2.2. Important Notice: Avis Important:
An appropriate fire and electrical enclosure should be provided in the
end product for the top and bottom openings.
Un incendie approprié et armoire électrique doivent être fournis
dans le produit final pour les ouvertures supérieure et inférieure.
If any of the card slots, including power supply slots, are not being
used they are to be replaced with the appropriate blank plates so that
the enclosure is completely closed.
Si l'une des fentes de cartes, y compris les emplacements
d'alimentation, ne sont pas utilisés, ils doivent être remplacés par
les plaques vierges appropriées pour que l'enceinte est
Operators are not permitted access to the internals of the chassis.
Only Service person shall remove covers and replace cards.
Les opérateurs ne sont pas autorisés à accéder aux éléments
internes du châssis. Seulement personne Service doit enlever les
couvercles et remplacer les cartes.
