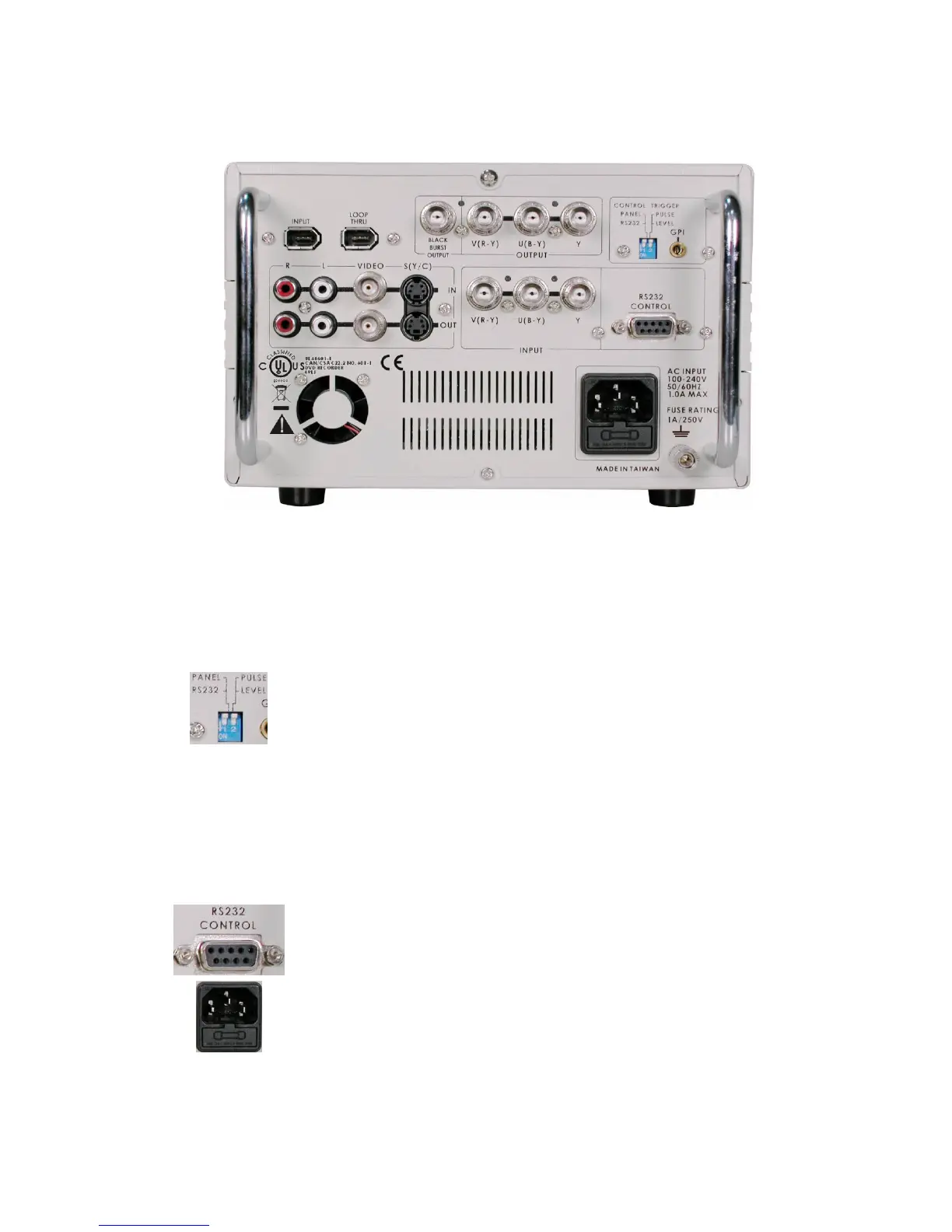

Datavideo MP-6000MD - Rear Panel

10
Functions:RearPanel
DIPswitch
DIPswitch1OFF,
•ExternaldevicecontrolbyGPItrigger.
DIPswitch1 ON (Whenthisfunctionisturnedon,the front
panel andGPI functionwill bedisabled.Only“EJECT” will
work. )
•Externaldevicecontrolenabled(byRS232)
DIPswitch2OFF
•GPIfunctionissettoPulseTrigger.
DIPswitch2ON
•GPIfunctionissettoLevelTrigger.
Note:Pleasem akesuretheunitisturnedoffbeforechanges
toDIPswitch.
RS232Rem oteControlinterface
•9pinserialportstandardRS232interface
•WithadditionalPCremotesoftwaretoremotecontrolMP6000MD.
ACPowerconnector with1AmpAntiSurgeFuse
ConnecttoasuitableACoutlet(100–240VoltAC).
