BLUEPAD-50 PLUS MSR USER GUIDE
UM 07.01.36/v1.3.0 1 DATECS Page 12 of 25
Device Operation

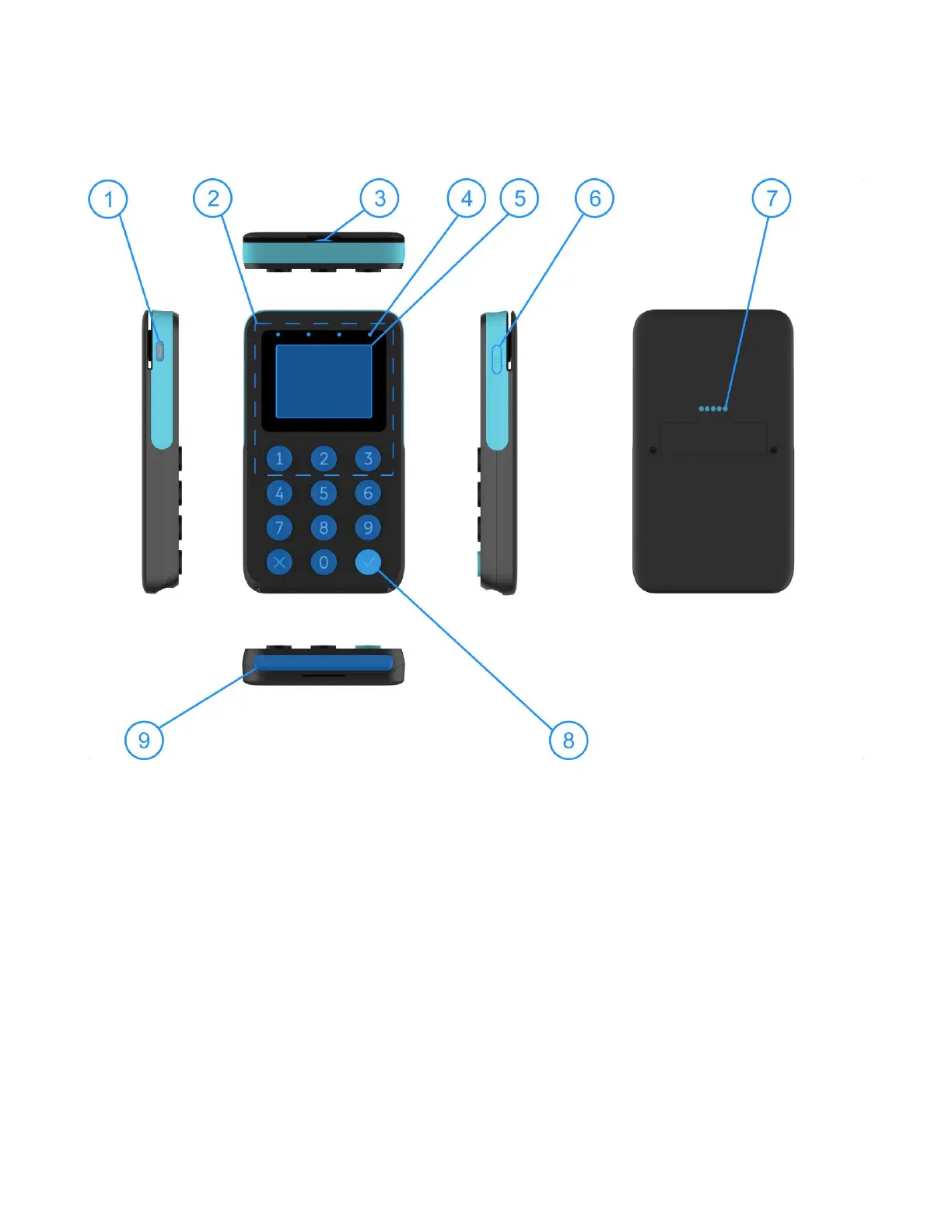

Figure 1
1. Communication port (USB)
2. Contactless reader
3. Magnetic stripe reader
4. Contactless transaction status LEDs indication
5. LCD Display
6. On/Off button
7. Charging and communication (UART) pads
8. Keypad
9. Chip card reader
