32
DVA K5 Code 420120232 REV.1.1
English
ATTENTION!

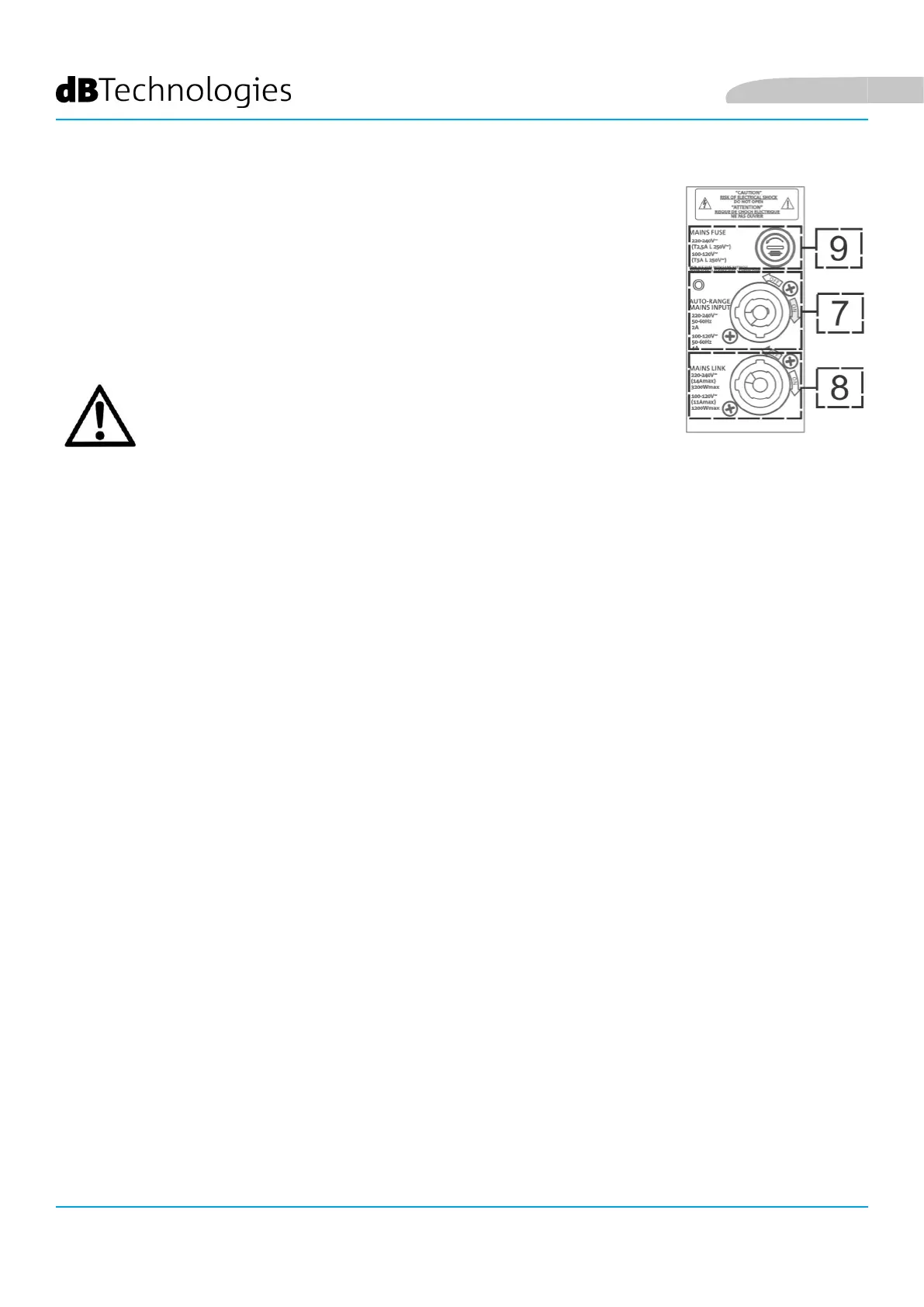

POWER SUPPLY SECTION
7. “AUTO-RANGE MAINS INPUT” POWER SUPPLY INPUT
Power supply input for cable equipped with NEUTRIK® powerCON® connector.
8. “MAINS LINK” POWER SUPPLY LINKING OUTPUT
Output allowing to extend the power supply to a second module through a
cable equipped with a NEUTRIK
® powerCON connector.
9. “MAINS FUSE” PROTECTION FUSE
Mains fuse
• Only use cables equipped with high-quality genuine Neutrik® connectors.
• Never use the speaker for a prolonged time while the limiter LED is on or blinking, indicating
the equipment is running under excessive stress conditions
• The speaker is supplied with a mounted fuse
for operation within the 220-240V~ range.
If you need to operate in the 100-120V~
voltage range:
1. Disconnect all connections,
including the power supply.
2. Wait 5 minutes.
3. Replace the fuse with the one
provided in the package for the 100-
120V~ range.
To Next Page
