41
DVA K5 Code 420120232 REV.1.1
English
Stacked modules can be directly installed on a subwoofer, using a DRK-10/DRK-20
y-bar. For further information please refer to the relevant manuals.
DVA K5 can be installed on a at surface, using the DRK-10/DRK-20 y-bars (max 6
modules) and the DSA-4 (max. 3 modules) accessory For further information please
refer to the relevant manuals.

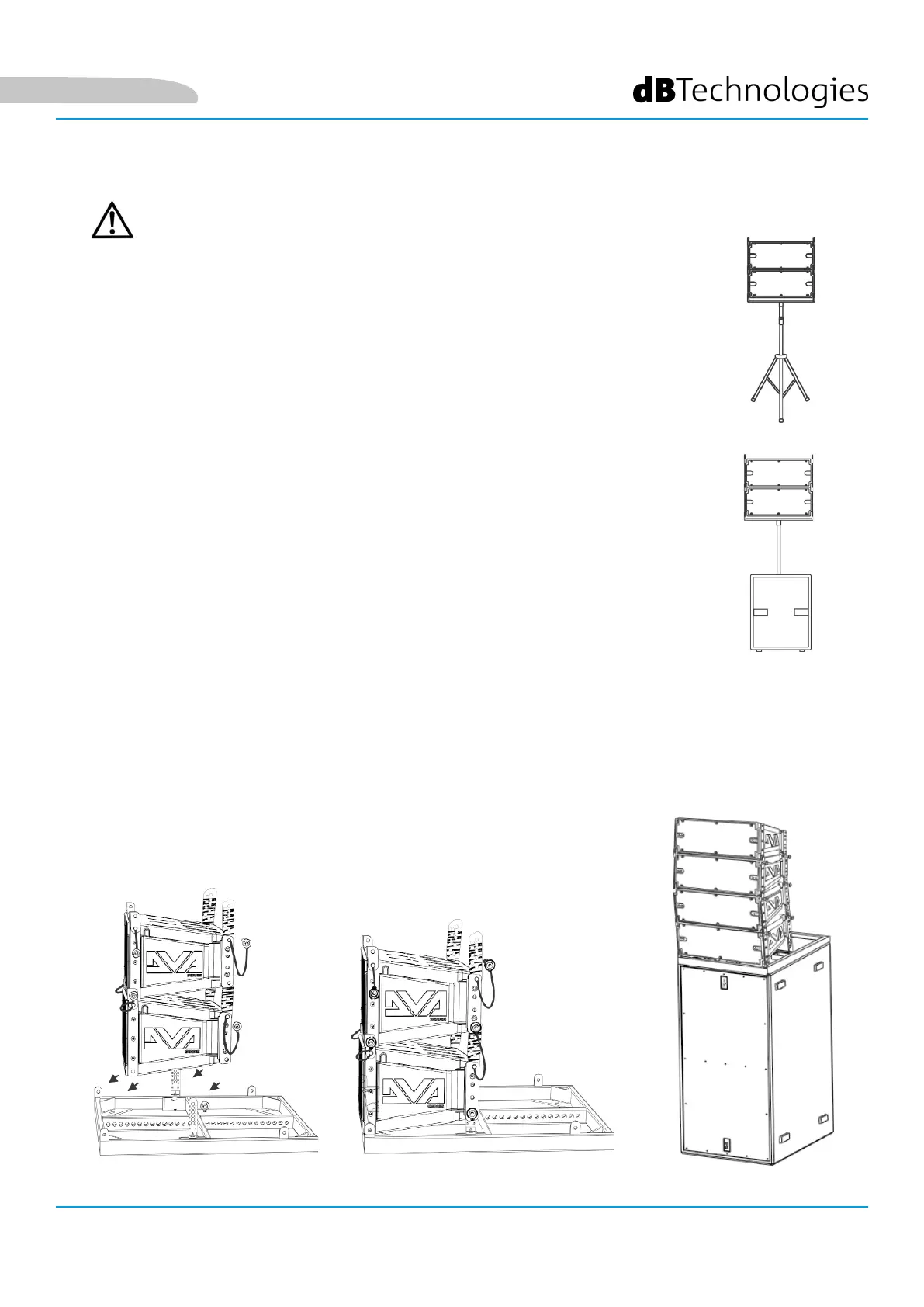

INSTALLATION ON SUBWOOFER WITH POLE
DVA K5 can be installed on an optional standard tripod with a pole having a
diameter of 35 mm. The DSA-4 accessory is required for this installation; you can
mount up to 2 modules and the maximum permitted distance between the rst
element and the ground is 130 cm. DSA-4 allows a maximum inclination of ± 5°.
For further information, please refer to the instructions of this accessory.
INSTALLATION ON TRIPOD STAND
3. INSTALLATION EXAMPLES
ATTENTION!
• Never use the speaker handles, brackets or other components to hang the
system!
To install the modules on a subwoofer DVA KS10, DVA KS20, DVA S10DP or
DVA S1518N you must use a pole having a diameter of 35 mm. For this type of
installation, the distance between the speaker base and the oor must not exceed
85 cm, and you can mount up to 2 DVA K5 modules. To this purpose you need to
use a DSA-4 accessory, and the downward inclination of the speakers must not
exceed 5°.
INSTALLATION ON A FLAT SURFACE
STACKED INSTALLATION ON SUBWOOFER THROUGH A FLY-BAR
