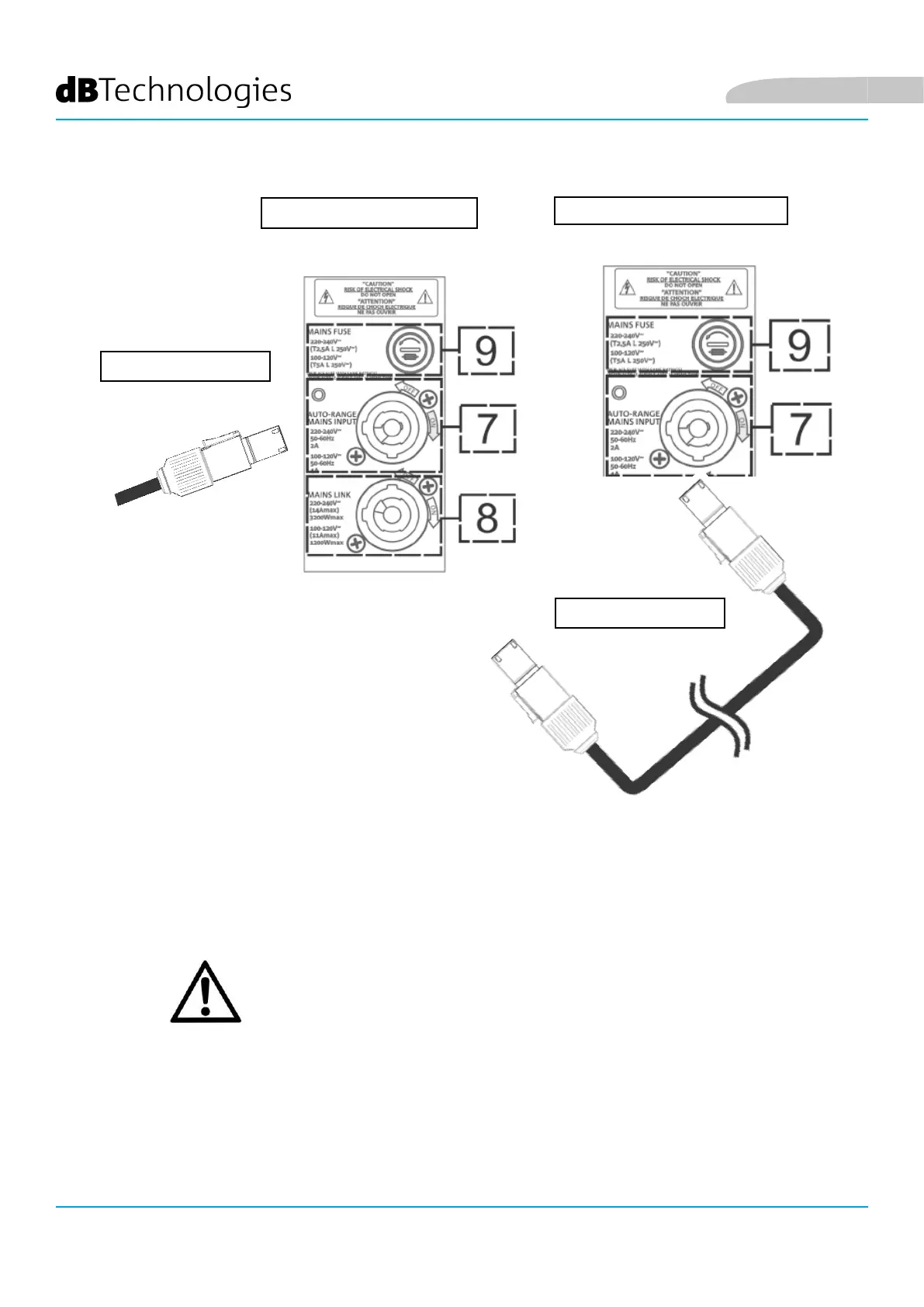

ATTENTION!
SECOND DVA K5 MODULE
POWER SUPPLY CONNECTION AND LINKING
FIRST DVA K5 MODULE
POWER SUPPLY
LINK
• Connect the rst module power supply to AUTO-RANGE MAINS INPUT (7). For this
purpose, use a cable equipped with a powerCON connector (not included in the supply).
• Extend the power supply from the rst to the second module, by connecting the MAINS
LINK OUTPUT (8) to the AUTO-RANGE MAINS INPUT (7), as shown in the gure.
• Repeat the operation between the second and the third module, and so on, until all
line-array modules are connected (check the maximum number of power supply links in
Technical Specications).
• The amplier nameplate of a DVA K5 module species the nominal
maximum and total current (and power) value of a multiple module
system with extension connections.
• The cables must be properly sized and design, installation and system
testing should exclusively be performed by qualied personnel. AEB
Industriale accepts no responsibility in case of use of cables which
are unsuitable, non-certied, non-compatible with the correct system
sizing and the regulations in force in the country of use.
