Make sure to turn it off before disassembly. Risk of electric shock.
PART NAME

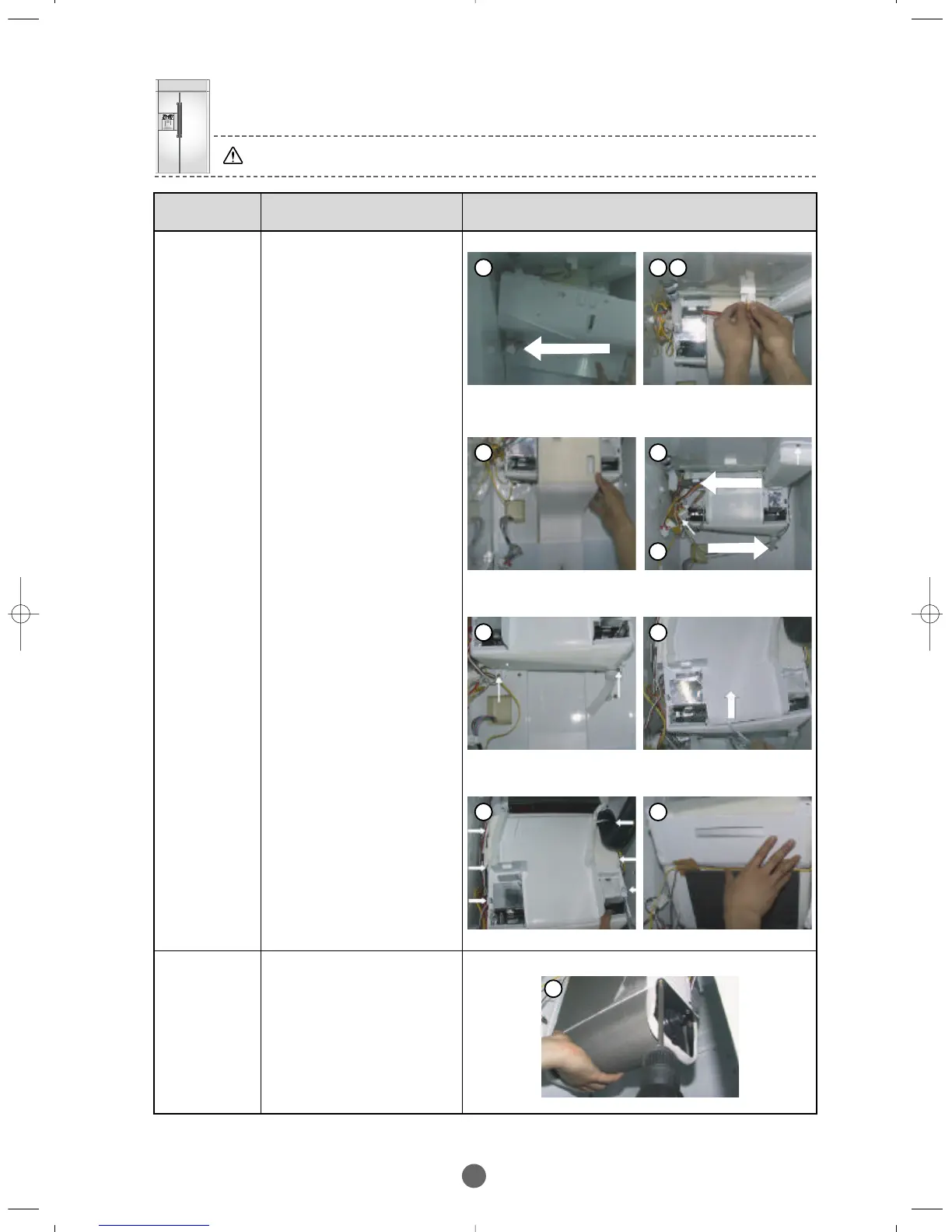

DESCRIPTION FIGURE
F-Room
Evaporator
② After removing the housing
from the left wall and the
sensor housing on the upper
side,pull the evaporator
cover out as shown in the
photo.
③ Remove the fan motor
housing and the heater
housing, and pull the upper
duct out from the F-Room.
④ You can remove the flexible
pipe drain heater off the
evaporator after removing
the 2 screws and the power
cord housing indicated with
the arrow mark.
⑤ Pull the drain hose out, put it
aside and remove the wire
holder.
⑥ Remove the 2 screws that
hold the evaporator case,
and lower the evaporator
down slowly in order not to
have the flexible pipe bend.
⑦ Release the wire from its
retainer and pull the bottom
side of the evaporator cover
down as shown in the photo.
⑧ Release the six retaining
hooks from both walls using
a flat-blade screwdriver and
take the front cover apart.
⑨ Turn the evaporator slowly
upside down so the flexible
pipes are kept in line.
F-Room
Evaporator –
Fan Motor
Ass’y
① Refer to the F-Room
Evaporator Disassembly
loosen the 4 motor clamp
screws as shown in the left
photo to remove the Motor
Ass’y.
To Next Page
