48
Make sure to turn it off before disassembly. Risk of electric shock.

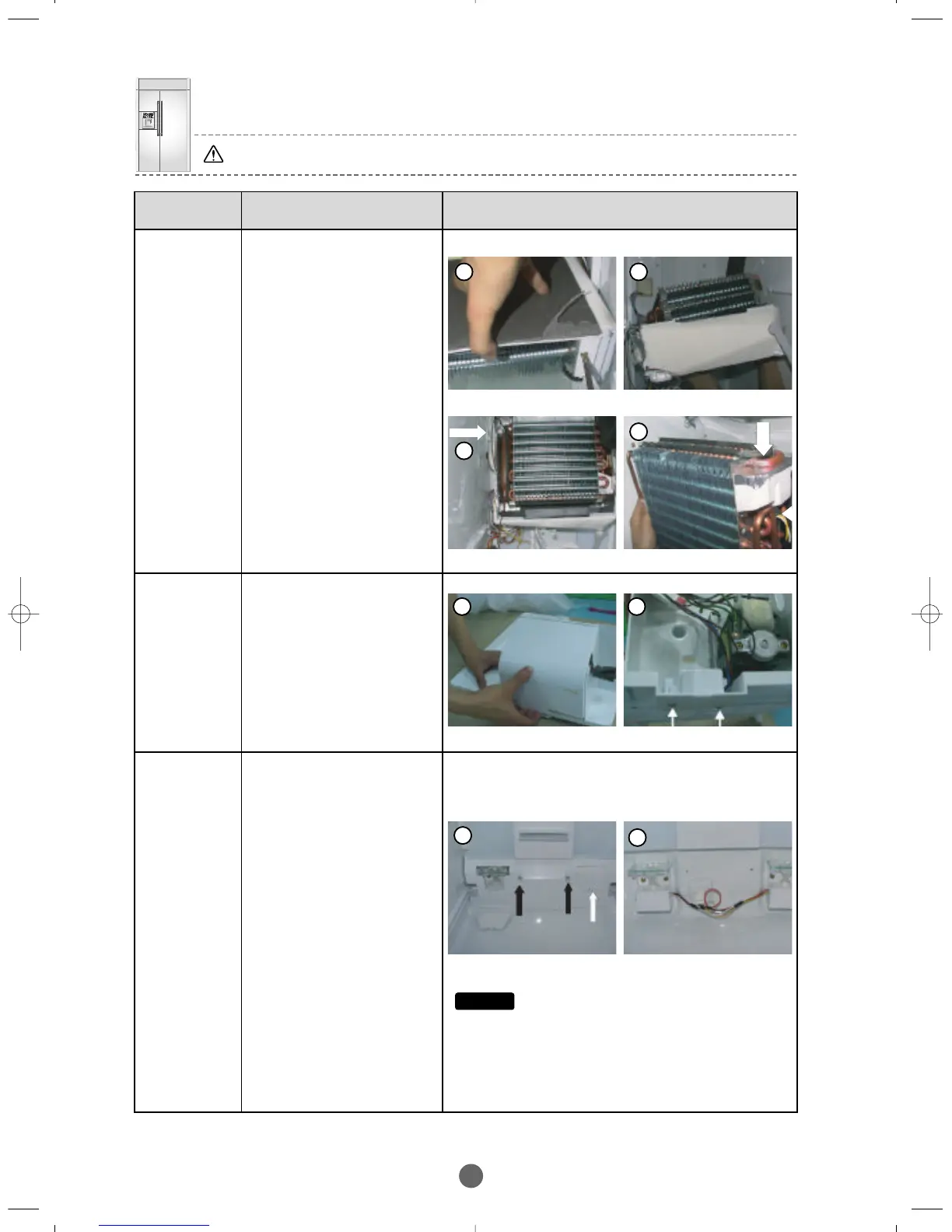

PART NAME
DESCRIPTION FIGURE
F-Room
Evaporator –
Defrost
Heater/Bimet
al/Defrost
Sensor
① F-Room Evaporator –After
removing the Fan Motor
Ass’y as shown in the photo,
remove the clamp screw
holding the evaporator.
② Turn the evaporator over
again to pull it out from its
case.
③ If necessary,remove Defrost
Heater/Bimetal/Defrost
Sensor by removing the
clamp screws and the clips.
F-Room
Evaporator –
Drain Heater
① Remove the inner case and
release the drain pan from
the retaining hook at the
place indicated with the
white arrow mark.
② Take the drain heater out
and remove its housing.
F-Room –
Interior
Lamp
① Remove the drawer.
② When replacing only the
lamp, disassemble the lamp
cover after removing the
screw indicated with the
white arrow mark,to take an
example of the left indoor
lamp from the first photo,
and pull the glass forward to
replace the lamp.
③ When you replace the
Lamp-Bimetal Ass’y,
separate the lamp cover by
removing the 2 screws
indicated with the black
arrow marks. And then,
replace the bimetal clamp
screws as shown in the right
photo.
1 2
3
Caution
The halogen lamp emits strong heat. Make sure that
you turn it off first and replace it when it cools down
enough.
1 2
2
3
BRANDSOURCE-SM(EN) 2007.1.23 10:31 AM 페이지48
