Element Removal / Component Acces s
CONVECTION MOTOR
NOTE: To replace the convection motor follow steps for convection element replacement
page 40.
STEP 1
Remove the four (4) baffle screws securing the convection pad cover to the liner. Pull motor assembly
forward to gain access to the wires. Unscrew wire nuts to completely remove convection motor
assembly from oven cavity.
STEP 2
Motor and fan can now be replaced as needed.
BAKE ELEMENT
STEP 1
To r emove the bake element assembly, disconnect the wires from the terminals (fig.03). Remove the
eight (8) screws securing the bake element assembly to the oven.
STEP 2
Pull the entire bake element assembly out to replace (fig.04).

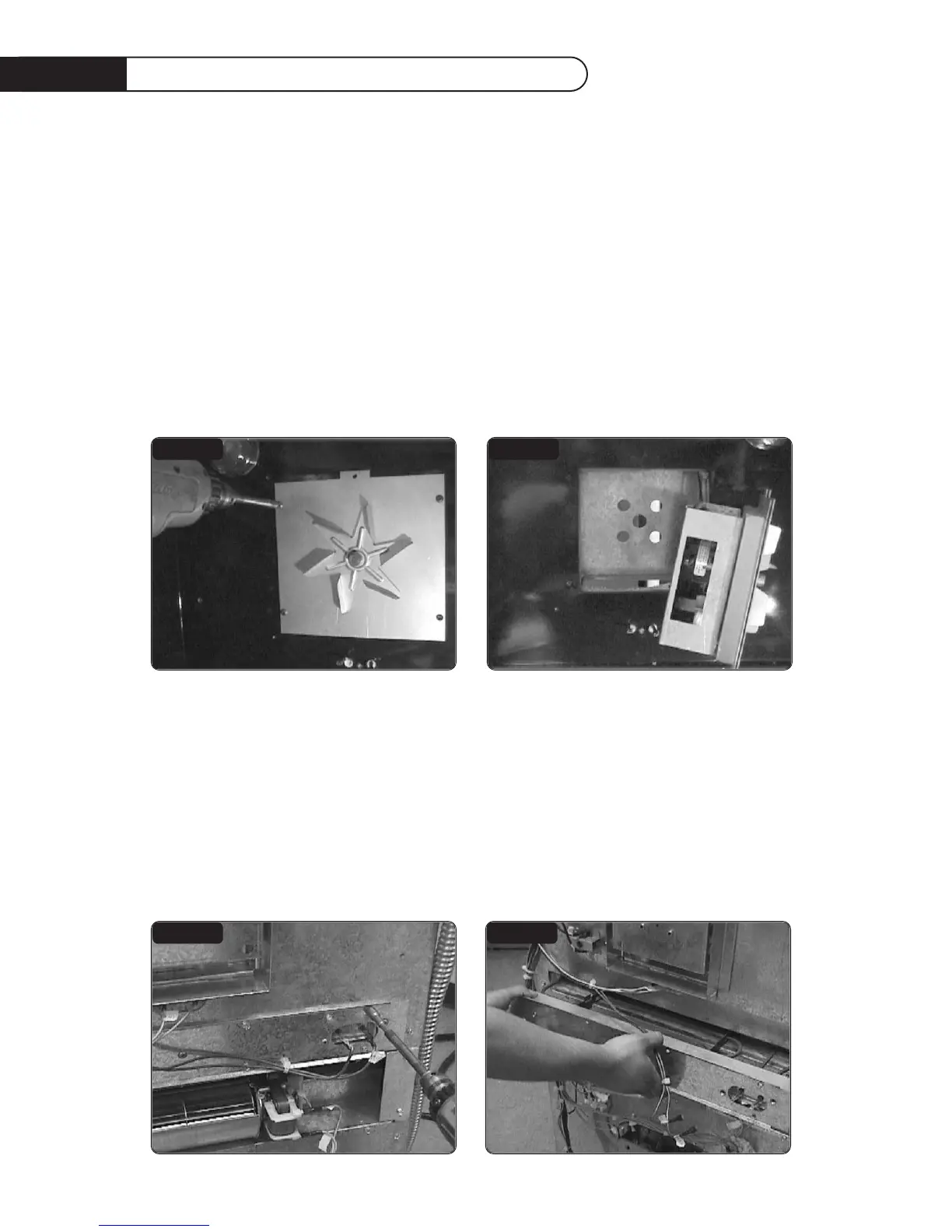

FIG.03
FIG.04
FIG.01
FIG.02
