2.1.2 Inside view
The inside view shows the location and names of the most
important parts.
NOTE
All pictures show a generic configuration. The actual model can
be different. To improve clarity, colors in the pictures may be
different from the actual colors.

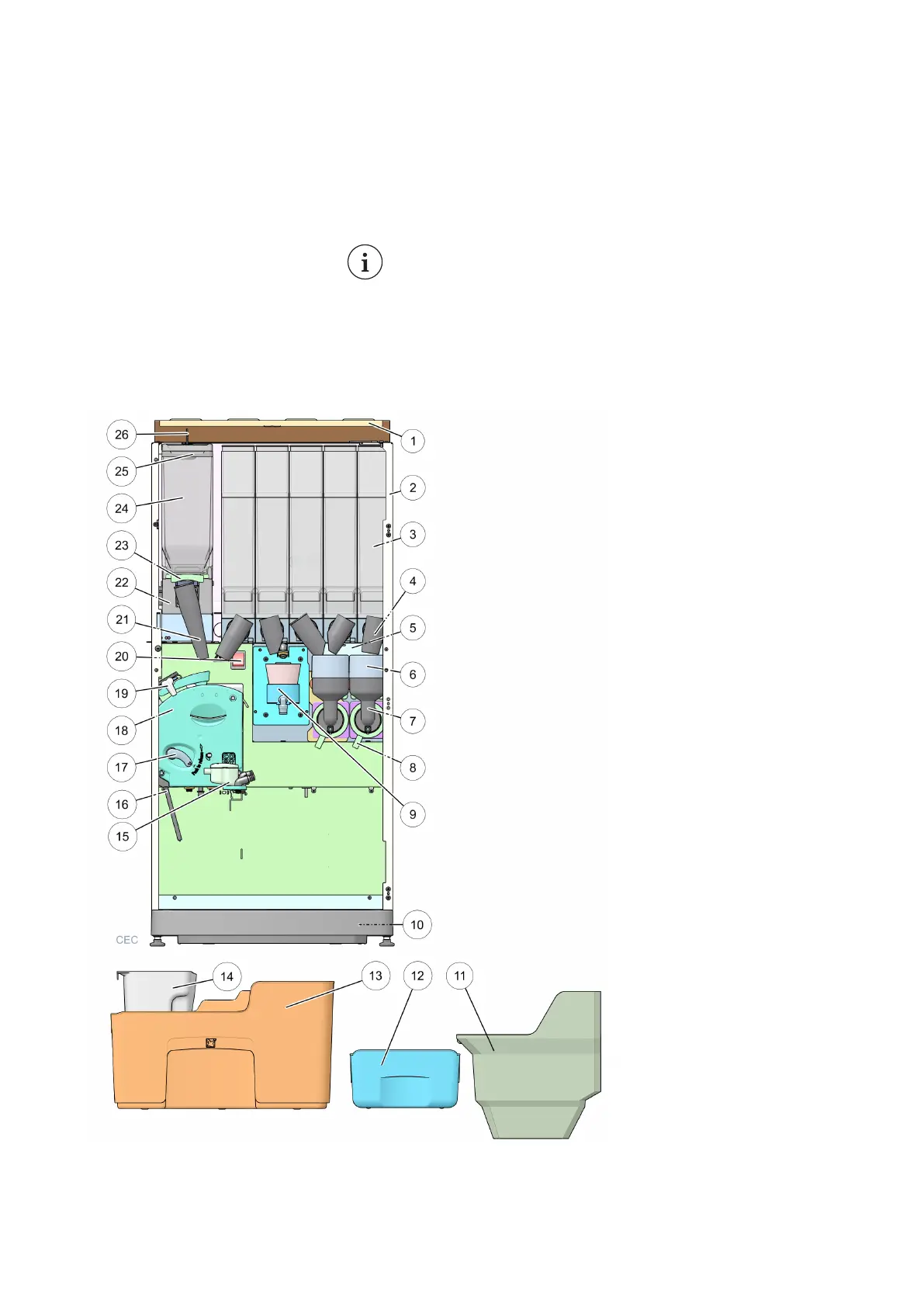

Inside view CoEx (medium model)
1. Top lid
2. Cabinet
3. Canisters (Ground coffee / Instant /
Topping)
4. Canister outlet
5. Exhaust filter drawer
6. Mixer suction trap
7. Mixer house
8. Mixer bayonet catch
9. Tea brewer
10. Drip tray
11. Waste guide to base cabinet --
optional
12. Brewer drip bucket -- option (used
with 11)
13. Waste bucket
14. Brewer drip bucket (used with 13)
15. Dispensing nozzles
16. Brewer drip bucket sensor
17. CoEx fixation handle
18. CoEx brewer
19. CoEx brewer outlet
20. Power switch
21. Grinder outlet
22. Grinder
23. Bean canister locking slider
24. Bean canister
25. Bean canister lid
26. Bean canister lid lock -- optional
17
Virtu CEC Medium Cabinet 70/90 CoEx® brewer User Manual 5DUCEK20M EN V2.1
